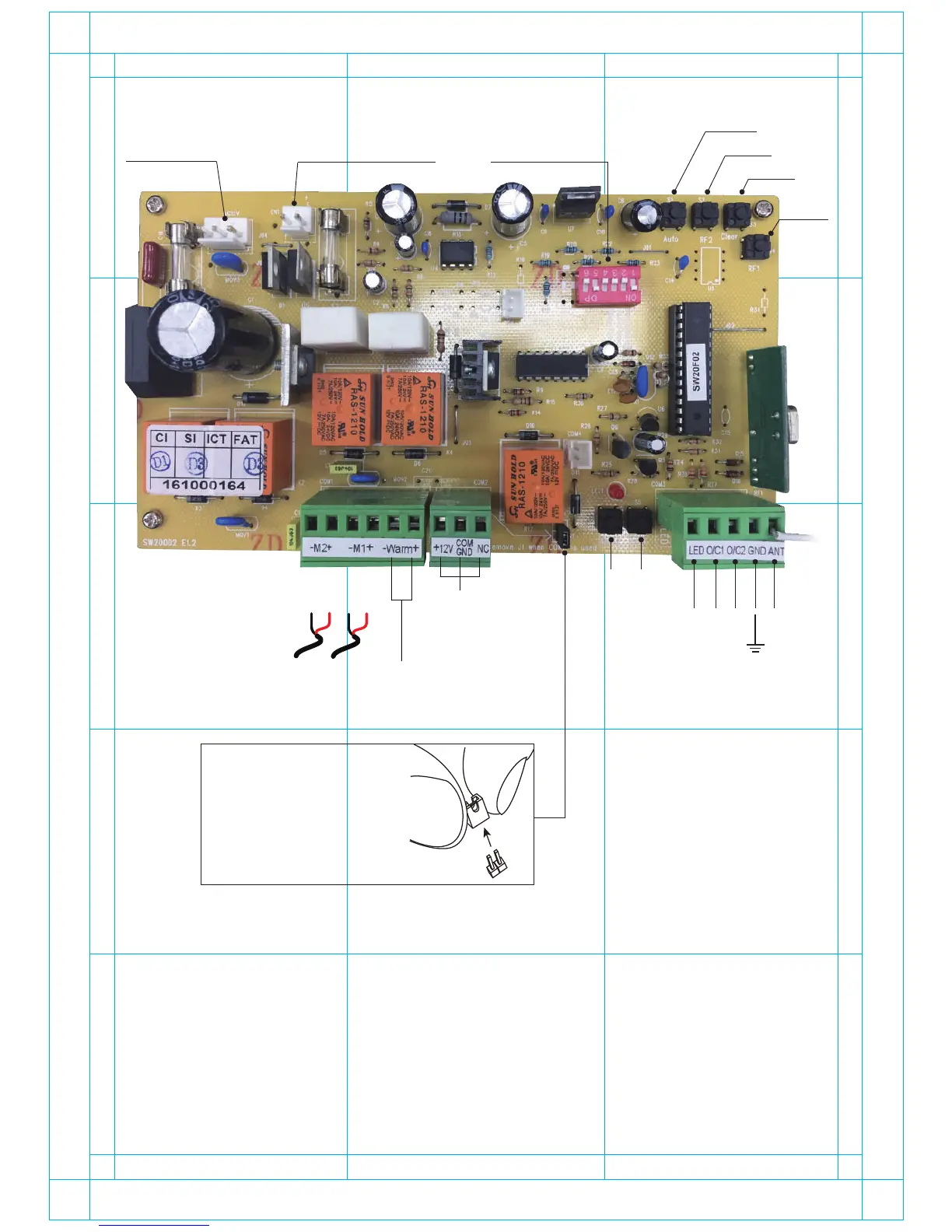

SELTEX V350 - PCBA Overview and Connections; PCBA Motor Connection; PCBA Photocells Connection; PCBA Warning Light Connection

J1
O / C
LED1
Lamp
LED O/C1 O/C2 GND ANT
- M2 + - M1 + - Warm + +12V
COM
GND
NC
PCBA:
11
To transformer
(12V AC)
To backup battery
(12V DC)(Option)
Dip Switches
Dual-gate operation manual button Single-gate operation manual button
RF 2
AUTO
RF 1
Clear
For external LED display Antenna To external dual-gate operation To external single-gate operation
※ Remove this jumper when
photocells are connected.
※ Put this jumper back if
photocells are removed.
Warning light
connection
See P.12
Motor
connection
See P.11
Photocells
connection
See P.13
- Black + Red - Black + Red
