Photocells (optional):

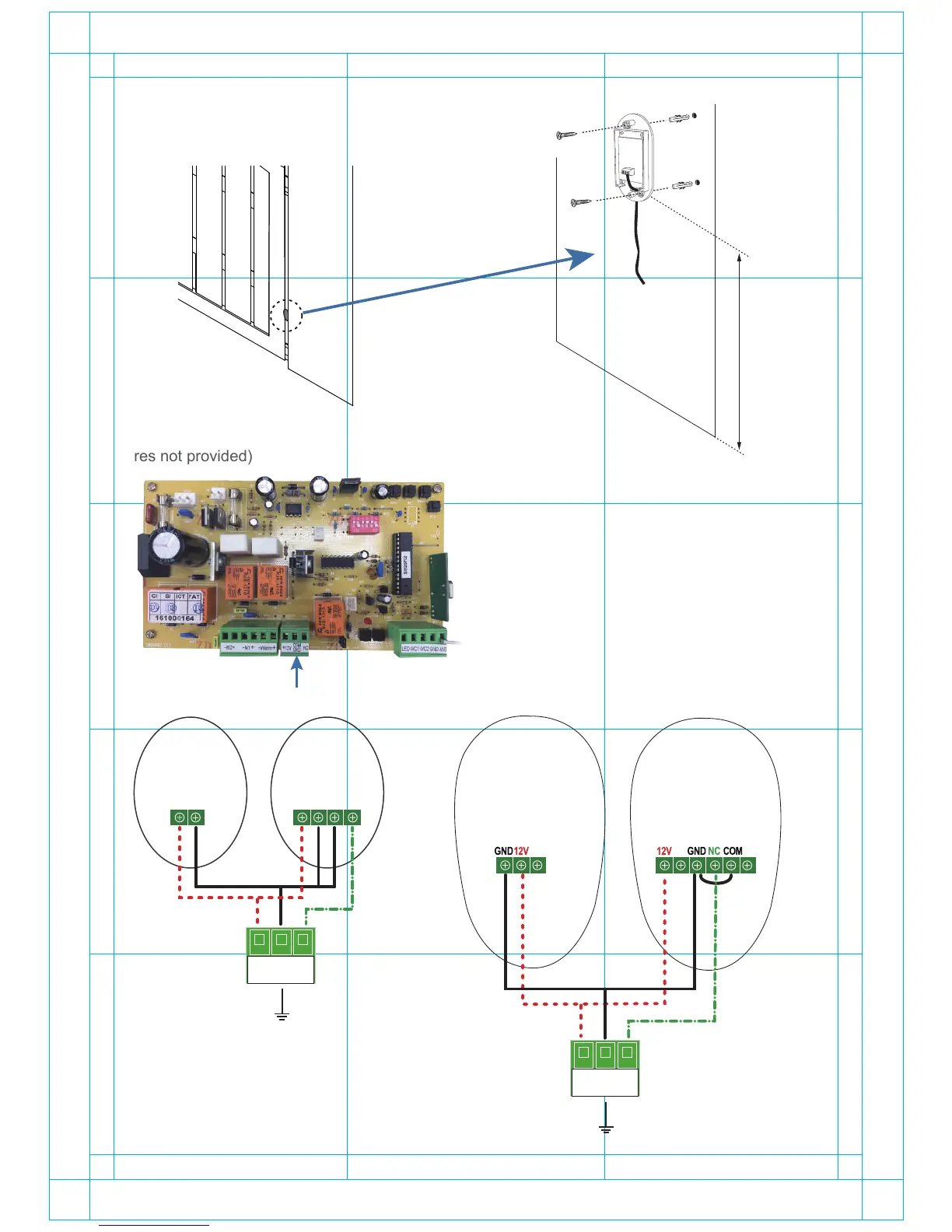

See the picture on the right for installation.
14
Fix the photocells
on the pillar.
Min. 30cm
PHOTOCELL
TX
+12V GND +12V GND COM NC
※ The short wire
connecting GND and
COM is not provided.
Connect the wires following the below diagram.
(wires not provided)
PHOTOCELL
RX
PHOTOCELL
TX
PHOTOCELL
RX
Sensor
+12V
+12V
COM
GND
NC
Sensor
+12V
+12V
COM
GND
NC
/ OR /
IPH6 IPH1
