15
Select a proper installation site, where the transmitter and receiver can align well. Connect to the
opener’s PCBA as wiring diagram on page 13. Power on the system, try and see if it works properly by
intercepting the IR between transmitter and receiver for times. The relay in the receiver should respond
accordingly while LED switches ON and OFF.
During Opening:
When the loop of photocells is intercepted, system will:
A. ignore, if Motor 2 is activated. OR
B. half, if Motor 2 is not activated.
During Closing:
When the loop of photocells is intercepted, the system will stop closing the gate and then to open both
leaves simultaneously until the set position.
Before Opening and closing:
Both leaves of the gate won’t move until the photocells are well-aligned.

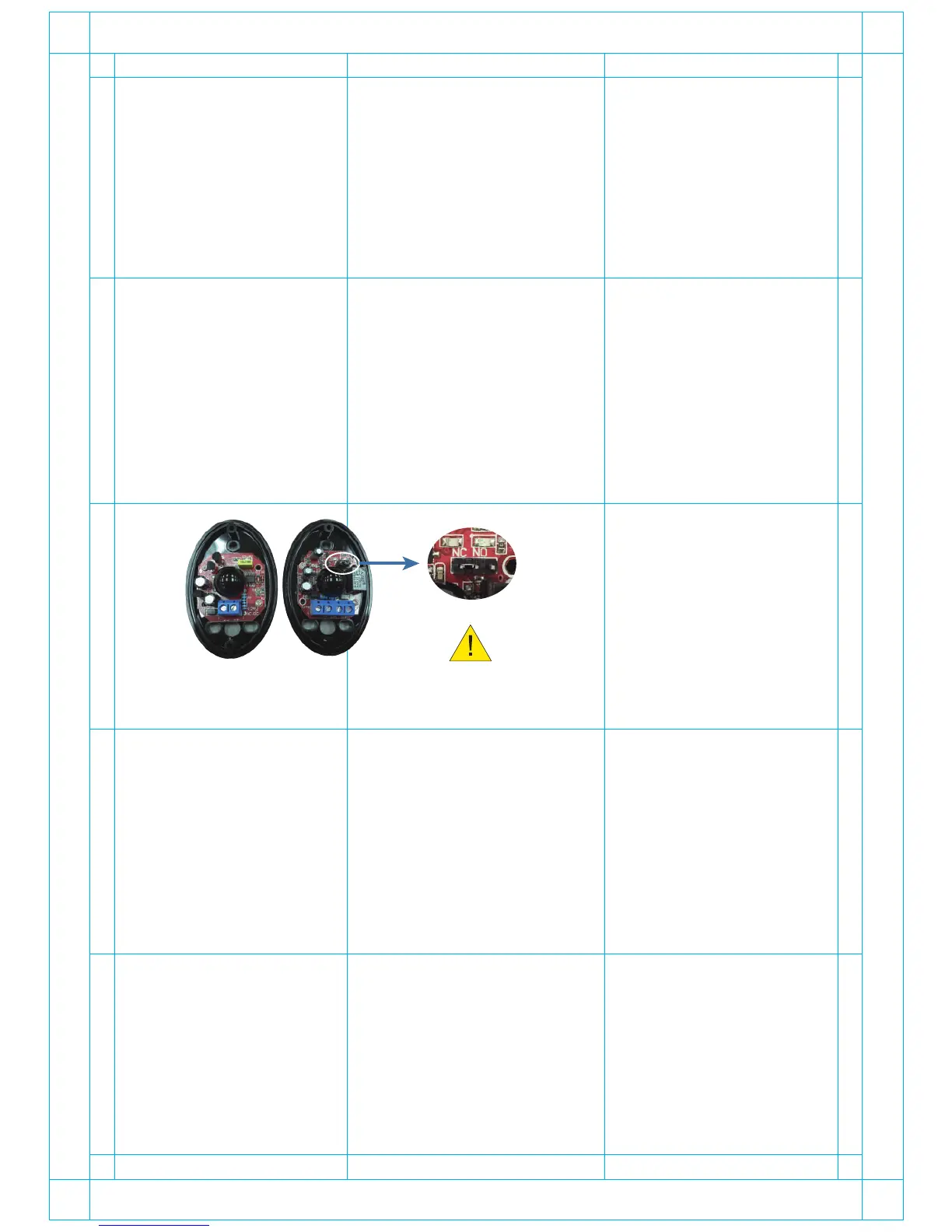

TX RX
This jumper is by default NC. Do not change at
will or the system might not function correctly.
Function of photocells:
*For IPH6, please note the following,
