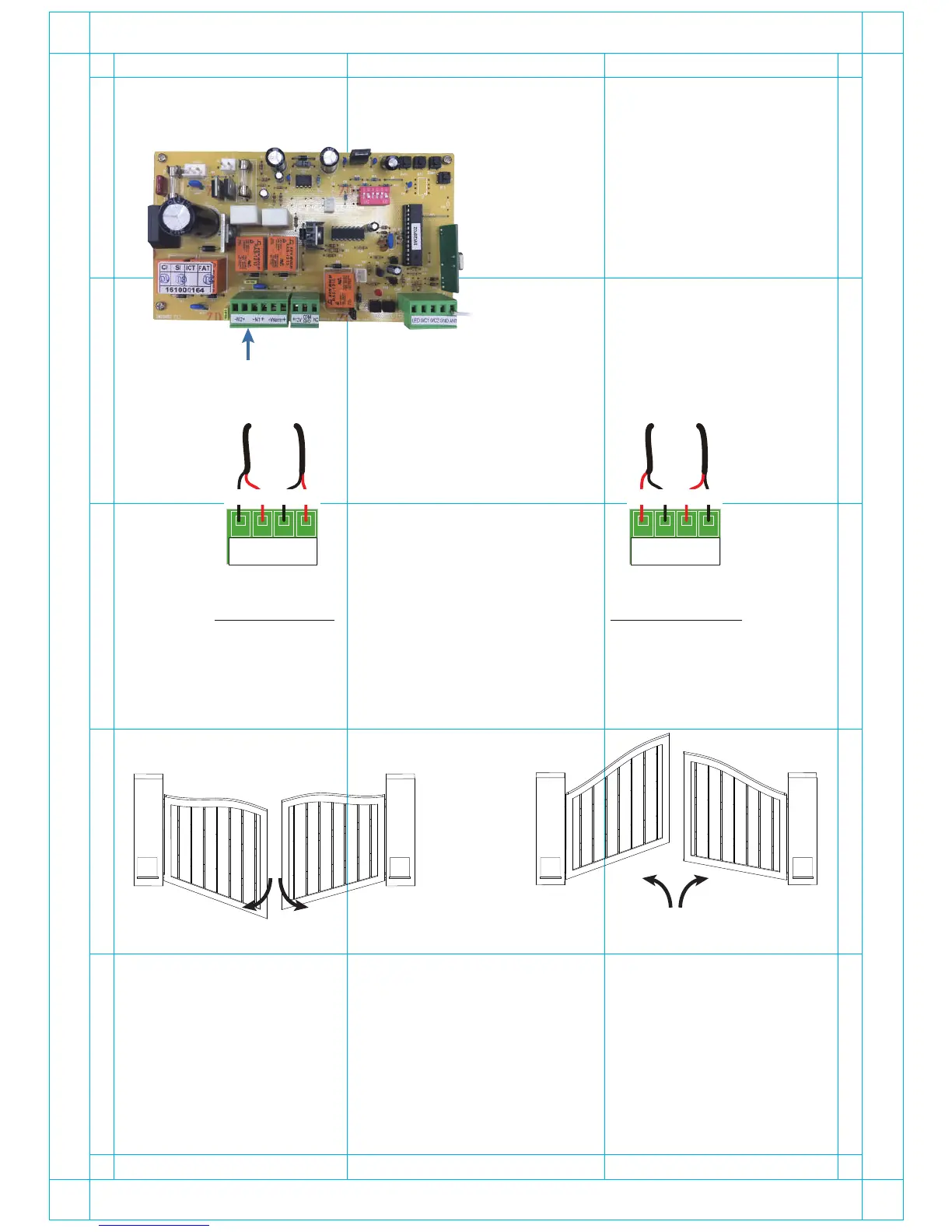

SELTEX V350 - Actuator Wiring to PCBA; Connecting Actuator Motor Wires

Connect the four wires on the connector “-M2+” “-M1+”.
Actuator:
12
M1
M2
For gates that open outwards, as shown
below, connect the motor wires according to
the diagram above.
Outward opening
Inward opening
For gates that open inwards, as shown below,
connect the motor wires according to the
diagram above.
M1
M2
Motor 1 Motor 2
- M2 + -M1+
RedBlack Red
Black
Motor 1 Motor 2
- M2 + -M1+
BlackRed Black
Red
