VP400 Series Video Pro Form7343A Operation Manual
56
7. Selecting ATSC-RF Photo Image Test Signals (480i, 480p, 720p, 1080i)
Another first for the VP403C is the addition of photo (still) images to the selection of video test
patterns for the ATSC-RF output. The photo images are available for output in the resolutions of
480i, 480p, 720p and 1080i. The images feature a close-up view of a young lady with a multi-
color hairpiece and an outdoor scene of a young couple with backpacks. The images provide an
excellent reference for gauging display facial color tone and picture clarity at the various
resolutions.

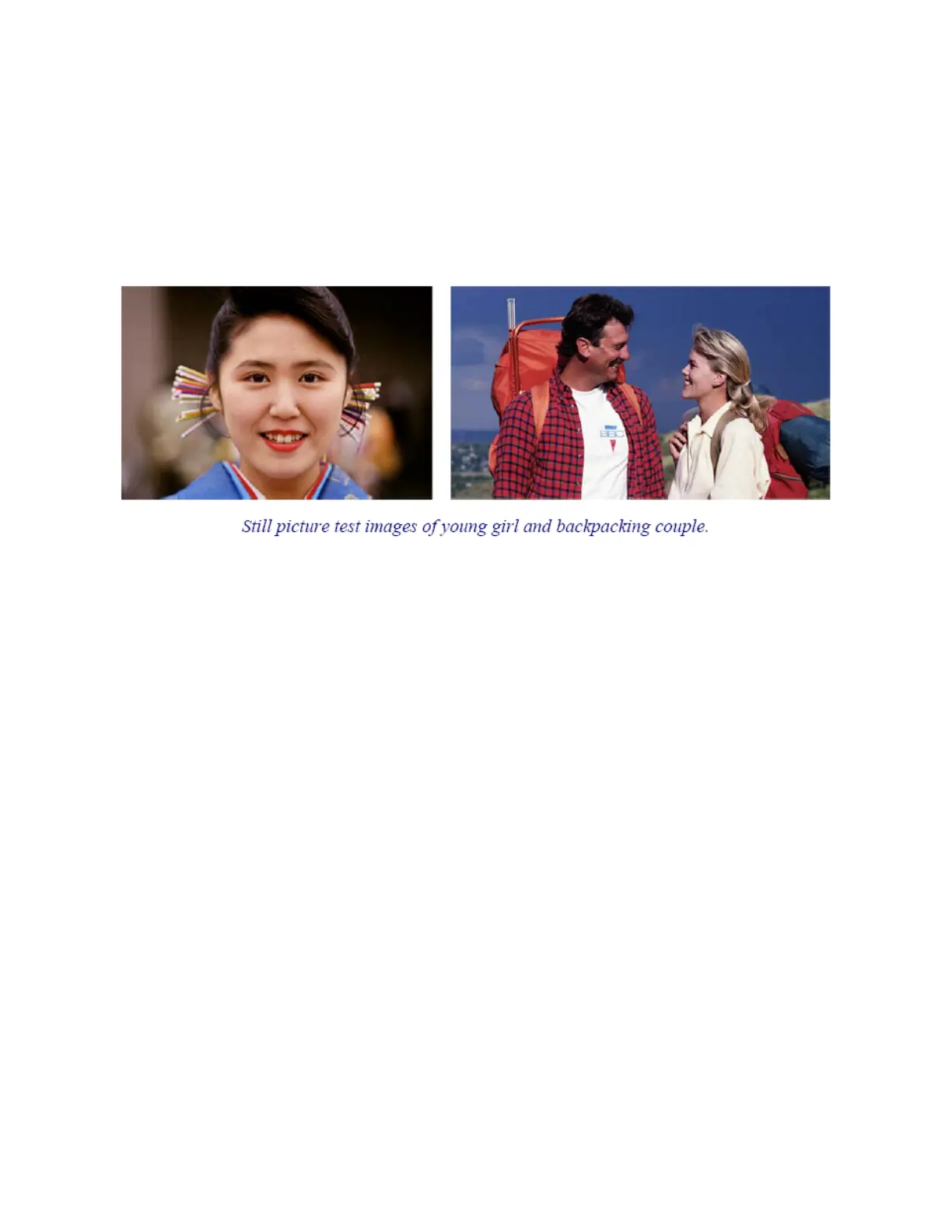

Figure 6. Photo (still) images are part of the video pattern selections on the VP403C’s ATSC-RF
signal type.
8. To View the ATSC-RF PICTURE Image on a Display
1. Follow the same steps as previously outlined in this document to produce a video test
clip on an ATSC display. This insures proper connection, generator configuration and
receiver tuning
2. Push VP403C FORMAT pushbutton and select the 480i29, 480p59, 720p59, or
1080i29 format selection.
480i29 = 4:3 ratio, Beautiful girl photo
480p59 = 4:3 ratio, Beautiful girl photo
720p59 = 16:9 ratio, Back-packing couple
1080i29 = 16:9 ratio, Back-packing couple
3. Push VP403C PATTERN pushbutton. Press Scroll “-” key to locate the pattern menu
screen which lists the “Picture 1” pattern menu selection.
4. Press the pushbutton beside the display’s “Picture 1” selection.
