VP400 Series Video Pro Form7343A Operation Manual
55
A tuning search may not be necessary if the receiver is already setup to receive an ATSC signal
on the same VHF/UHF ATSC-RF channel selected on the generator. Remote entry of that
ATSC-RF channel number or virtual channel ID # may provide direct access. (Example VP403C
ATSC-RF Channel 3: Enter 3.1 or 3.10 or 1.2)

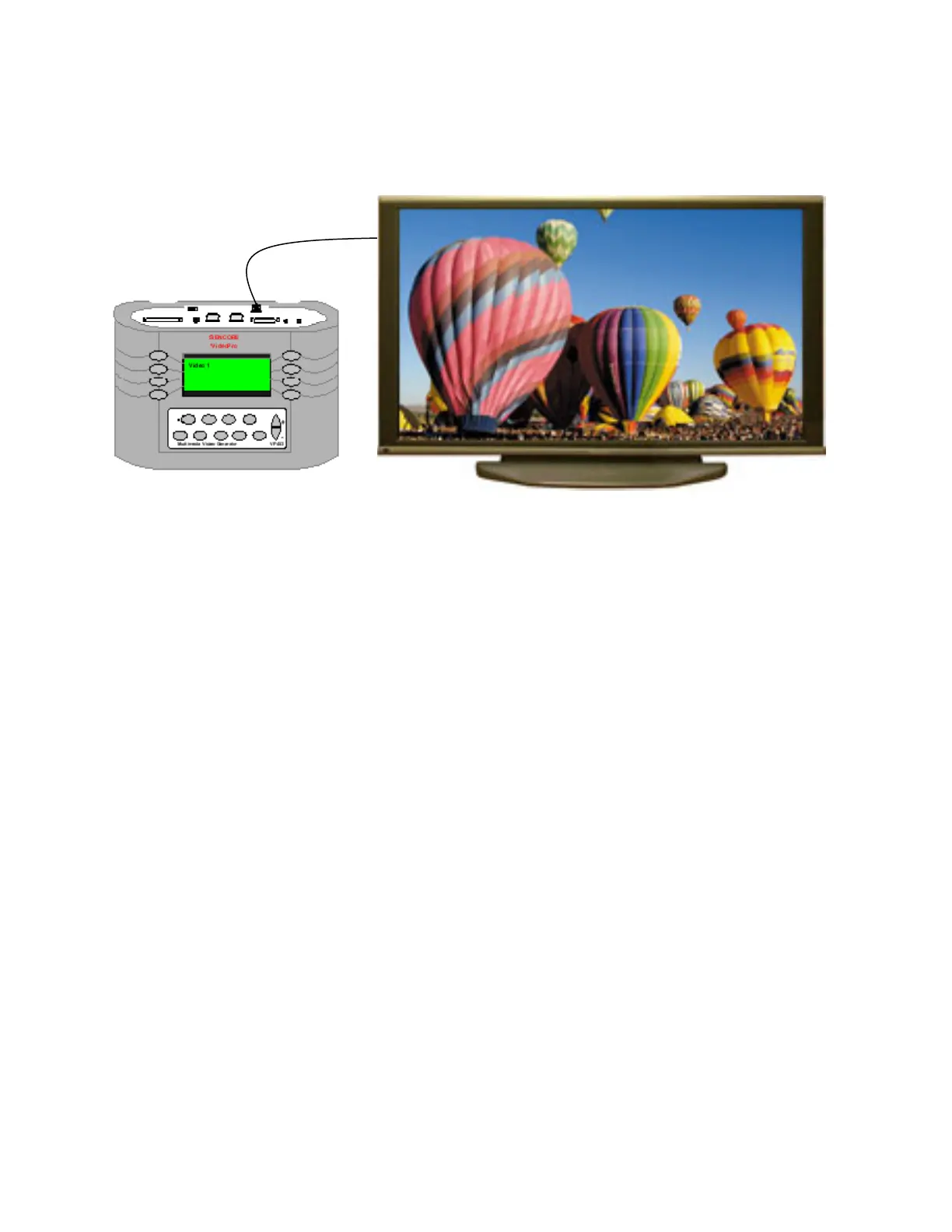

Figure 5. Setup the display for off-air broadcast tuning on the RF input in which the VP403C is
connected. Perform a channel search with the generator setup as in steps 1-4.
6. Select the ATSC Channel on the Receiver
Once you have completed the channel search, exit the setup menu of the display. Check menu
settings on the receiver to be sure you have selected the proper input if the receiver has more
than one RF input.
Note: Navigate the menus to be sure the proper “antenna 1” or “antenna 2” choice is selected
for RF channel viewing if the display has more than one RF input connector.
Exit the menu and increment up or down in channel numbers if necessary until the receiver
indicates the VP403C’s channel ID number and you see the video clip on the display screen. A
slight delay is normal as the display tunes, locks and decodes the digital signal.
The virtual channel ID number imbedded in the ATSC digital signal of the VP403C on
each RF channel is 1-2. The receiver may display this number and not the number of the
selected ATSC-RF channel you selected on the VP403C.
