In addition to the video clips, the VP403C contains many innovative video test patterns. The
analyzing and alignment test patterns include: Pluge, Decoder Adjust, Linearity, Over-scan,
HiLoTrk, and selectable IRE level Window patterns, plus a host of other standard video patterns.
This wide selection of patterns helps you with any testing, professional calibration, or show &
tell demonstration.

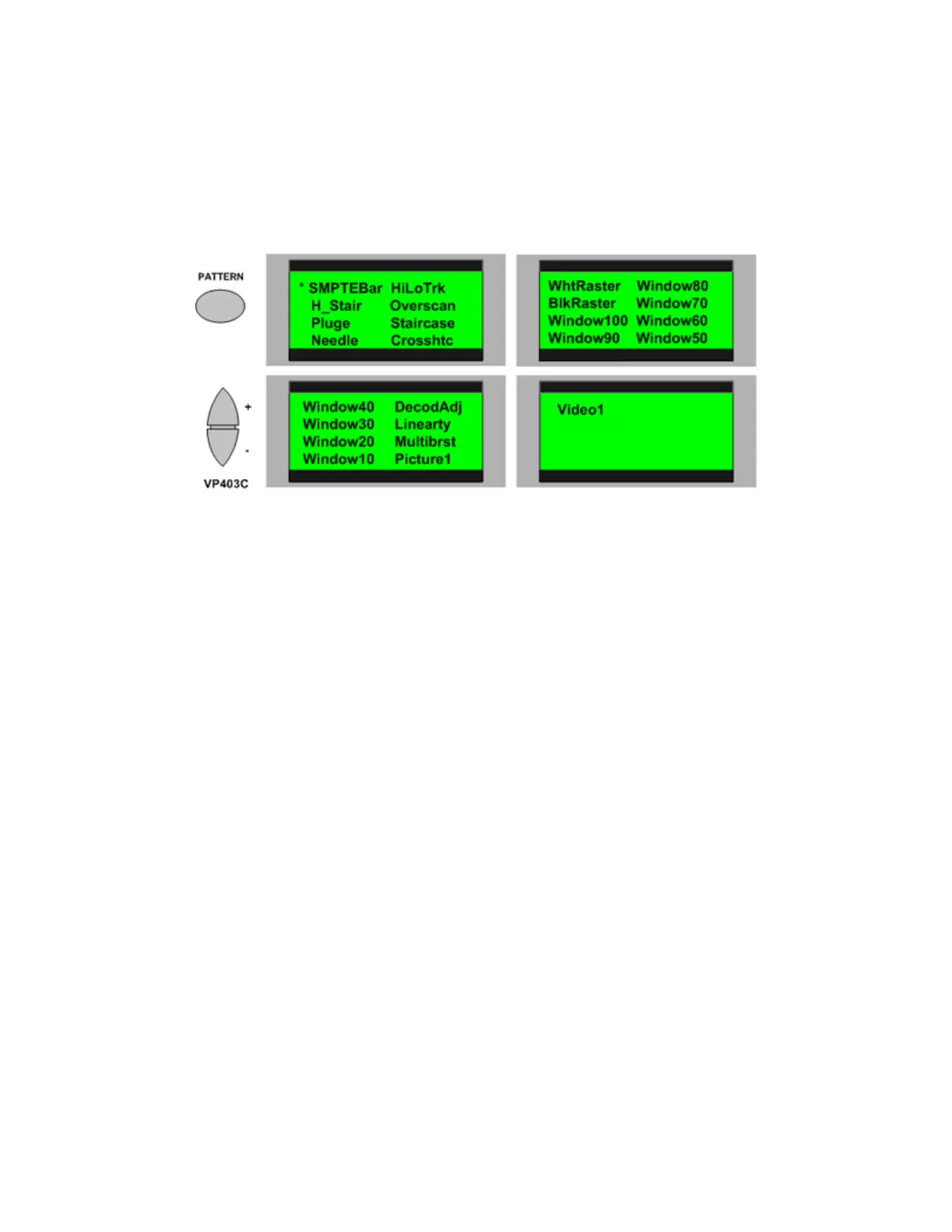

Figure 4. Push the “-” scroll down button on the VP403C to select the last menu.
Press the pushbutton beside the display indicating “Video 1” selection.
5. Setup ATSC Receiver – Perform Channel Search (SCAN)
An important part of getting the VP403C to play the moving video on the receiver or through a
STB is to configure the receiver. This requires going into the setup menu and making several key
selections. It further requires performing a channel tuning search to find and configure the
receiver to display the digital channel.
First, go into the receiver’s signal input menu(s) and find the setup menu for specifying the input
RF or antenna inputs. You must select the input in which you have the generator connected.
Secondly, setup the receiver to receive over-the-air digital ATSC signals. Choose the menu
selection which specifies reception for broadcast TV, over-the-air, antenna, or VHF/UHF. These
are all terms used to describe TV signals transmitted to your receiver by local broadcasters.
With the VP403C connected and configured as in steps 1-4, perform a channel tuning search on
the receiver so it can find and configure the receiver to the ATSC channel of the generator. Note:
You must have the VP03C connected and outputting an ATSC-RF channel (Steps 1- 4).
