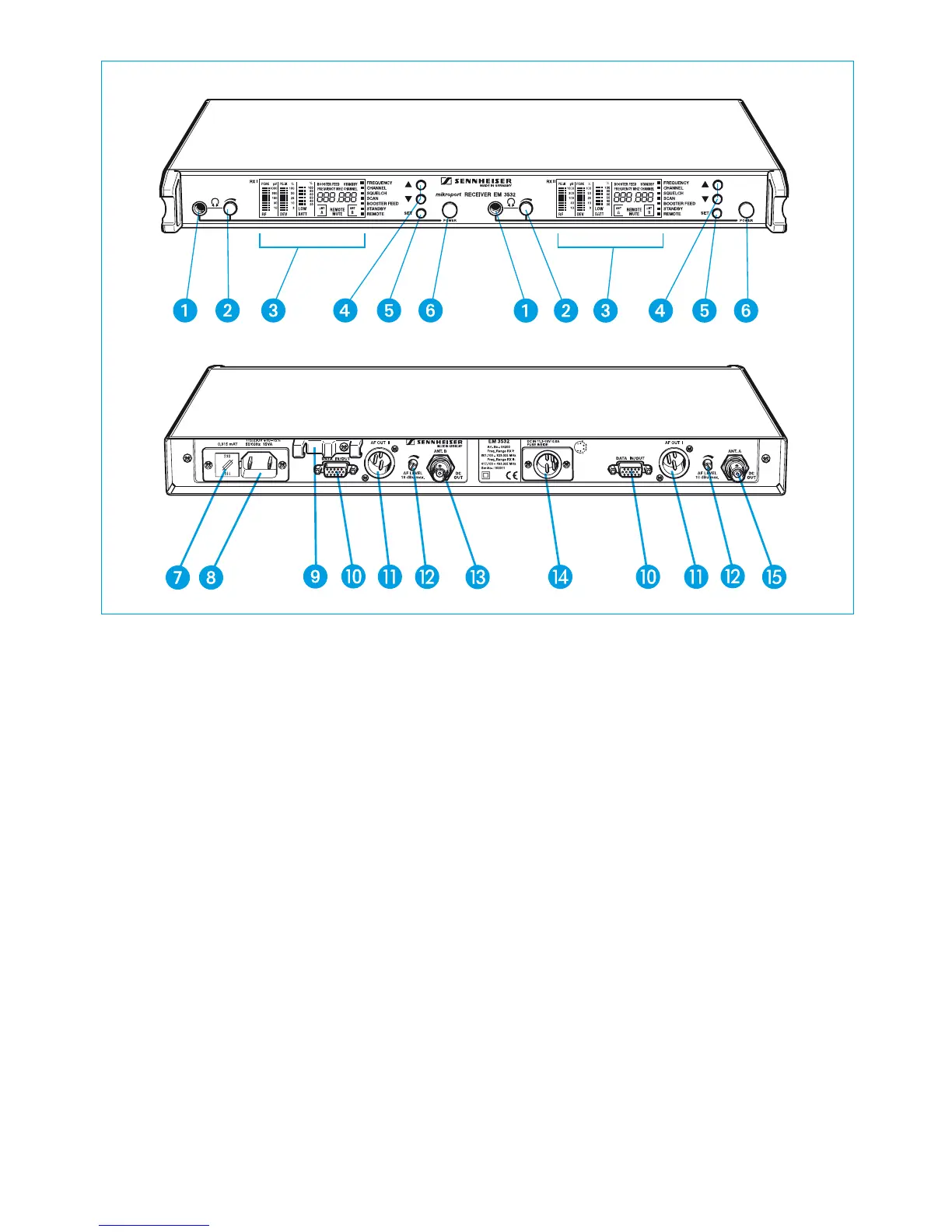

2 Connections and operating elements
Headphone socket
1
/
4
” (6.3 mm) ø
Headphone volume control
Multi-function LC display panel
Buttons for selecting and programming the menus
SET/storage button
ON / OFF switch
Fuse holder and mains voltage selection
2-pin IEC mains connector
Cable grip for mains cable
Data interface for connecting a remote computer
AF output XLR-3M, balanced
Control for the AF output level at the XLR socket
Antenna input B
DC socket (e.g. for use in an OB van)
Antenna input A
