Sennheiser Evolution Wireless G4 - Outputting Audio Signals

Installing the EM 300-500 G4
28

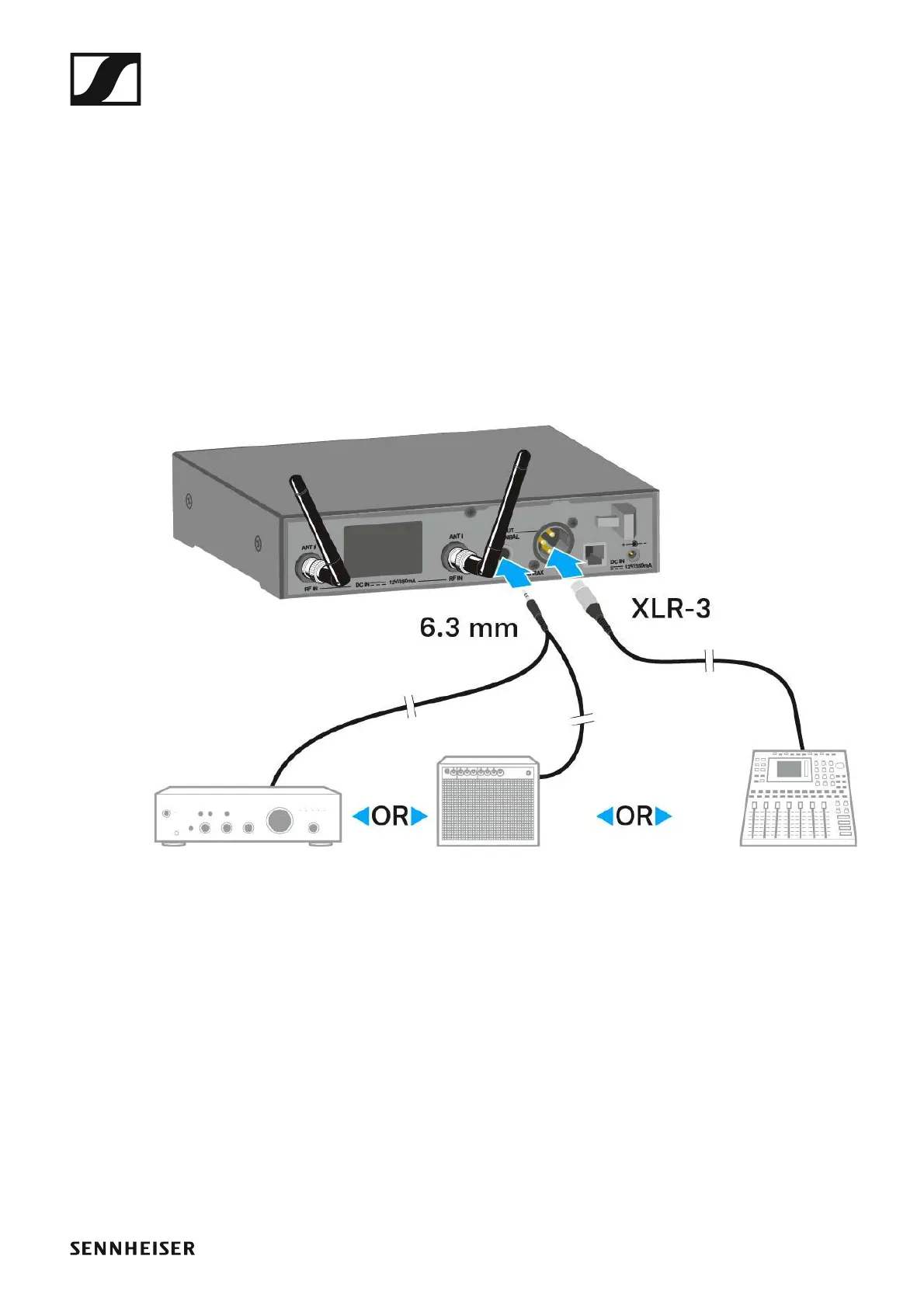

Outputting audio signals
The EM 300-500 G4 has a balanced XLR-3M output socket and an unbal-
anced 6.3 mm jack output socket.
▷ Always use only one of the two BAL AF OUT output sockets for each
channel.
To connect an XLR cable:
▷ Plug the XLR cable into the AF OUT BAL socket of the EM 300-500 G4.
To connect a jack cable:
▷ Plug the jack cable into the AF OUT UNBAL socket of the EM 300-
500 G4.
