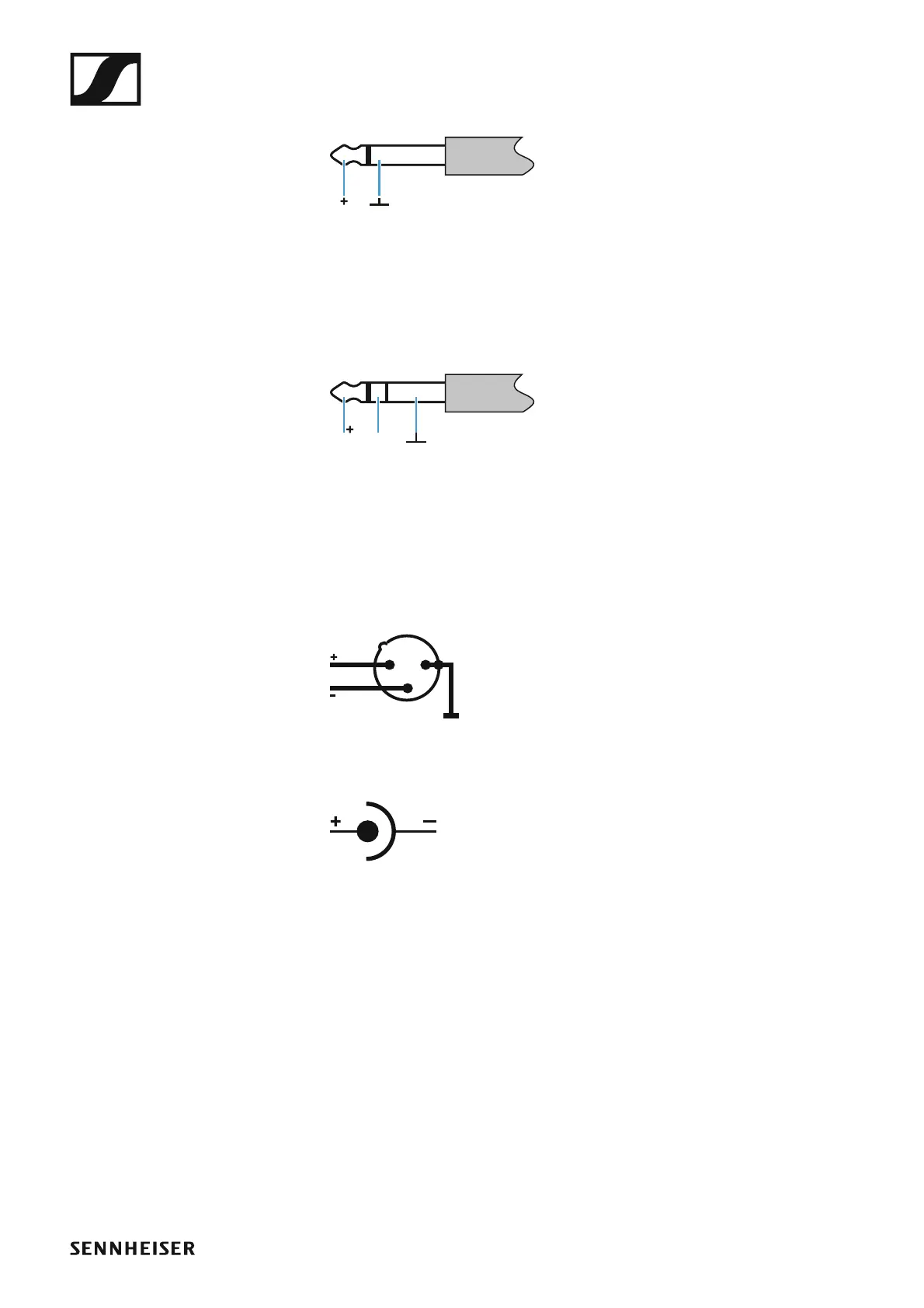

Pin assignment
189
6.3 mm mono jack plug, unbalanced
►
•Connect to:
•EM 100 G4 Audio Out
• EM 300-500 G4 Audio Out
6.3 mm stereo jack plug for headphone jack
►
•Connect to:
• EM 100 G4 headphone input
• EM 300-500 G4 headphone input
• SR IEM G4 headphone input
XLR-3 plug, balanced
►
Hollow jack plug for power supply
►
LR
1
3
2
