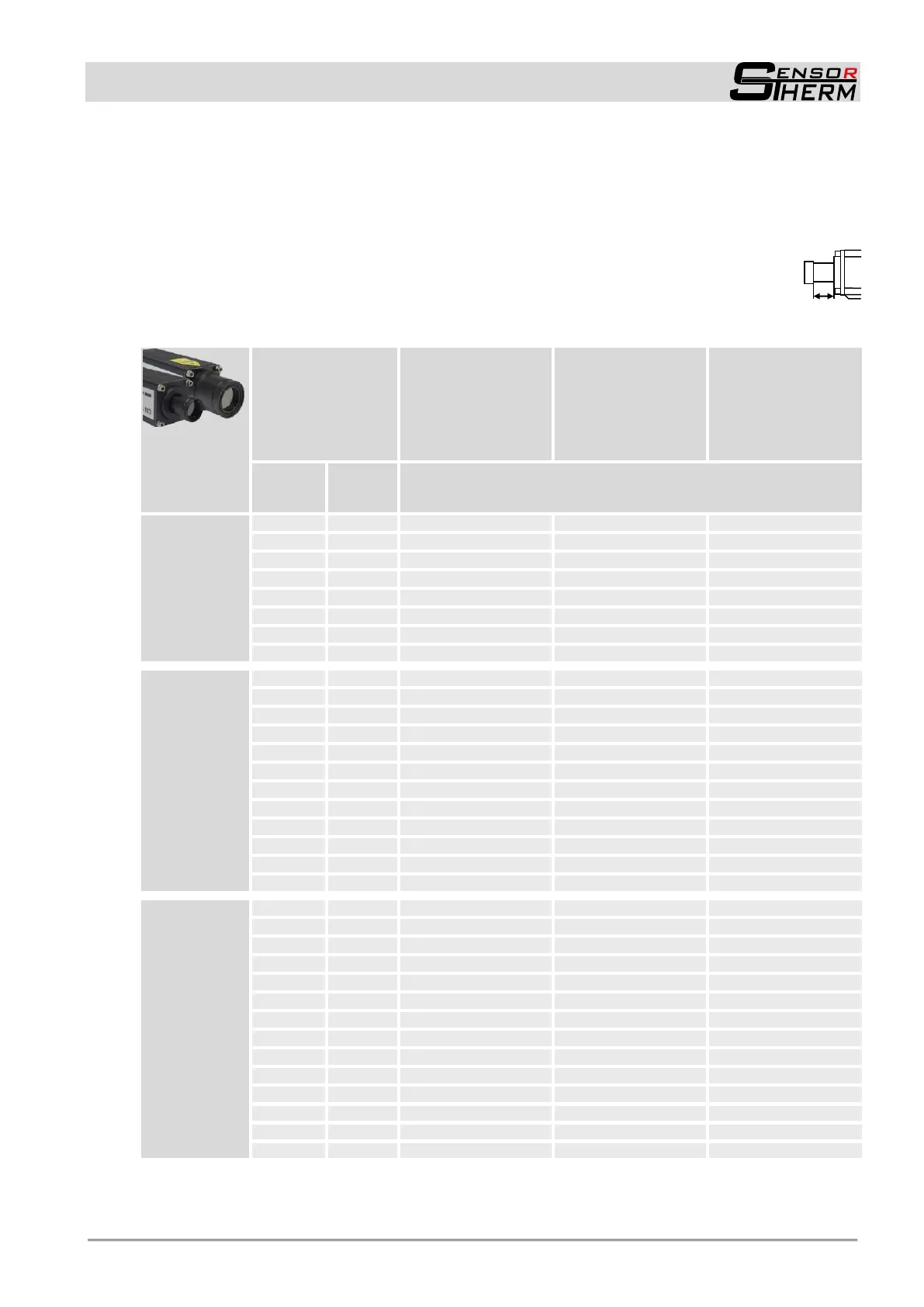

5.6 Spot Size Tables
The following tables show the optical data of the different device types. The values in the tables are ex-
emplary, intermediate measurement distances must be determined by interpolation. If the measuring
distance (= focused distance) differs from the adjusted or specified, a measurement is also possible, but
the spot size changes (usually it is larger, see 5.6.7 Calculation of the spot size diameter outside the
focused distance). Measuring distances at manually focused optics are specified
from lens front, at motorized optics from the protection window.
5.6.1 Manually Adjusted or Motorized Focus Optics with laser targeting light or view finder
Optics
Model
Temperature ranges
[°C]
M308: all temperature
ranges
M318: 100-700°C
H316: ZSC <400°C
H318: 120–520°C
M309: all ranges
M316: all ranges
M318: 150–1200°C
180–1300°C
H309: all ranges
H316: ZSC ≥400°C
H318: 180–800°C
Meas.
distance
a [mm]
Optics
pull-out
S [mm]
Spot size diameter M [mm]
OM09-A0
130
26
0.75
0.6
0.4
140
18
0.8
0.64
0.43
150
13
0.9
0.72
0.47
160
9
1
0.8
0.5
170
5.7
1.1
0.87
0.53
180
3
1.25
0.95
0.55
190
0.7
1.5
1
0.6
200
0
1.8
1.1
0.65
OM09-B0
190
26
1.5
0.8
0.5
220
17.7
1.63
0.96
0.55
240
13.8
1.7
1.1
0.6
260
10.8
1.8
1.2
0.7
280
8.3
1.9
1.3
0.8
300
6.3
2
1.4
0.9
320
4.6
2.1
1.6
0.95
340
3.1
2.2
1.7
1
360
1.9
2.4
1.8
1.1
380
1
2.65
1.85
1.2
400
0.3
2.8
1.9
1.25
420
0
3
2
1.3
OM09-C0
340
26
2
1.3
0.8
400
20.9
2.5
1.7
1
450
17.9
2.9
2
1.15
500
15.6
3.2
2.3
1.3
600
12.5
3.75
2.8
1.62
700
10.5
4.2
3.3
2
800
8.6
4.25
4
2.3
1000
6.5
5.9
4.5
2.9
1500
3.8
11.3
7.8
4.5
2000
2.5
15
10.5
6.1
2500
1.8
19.5
13.3
7.6
3000
1.3
23.5
15
9.2
3500
0.9
27
17
11
4000
0
33
18
13
Aperture diameter D: Full scale temperature value ≤ 1400 °C: 14–16 mm; > 1400 °C: 7–8 mm ZSC = Zero-scale temperature
(D is dependent on the optics pull-out: optics pulled out: higher value, optics inserted: smaller value)
Optics
pull-out
S [mm]
