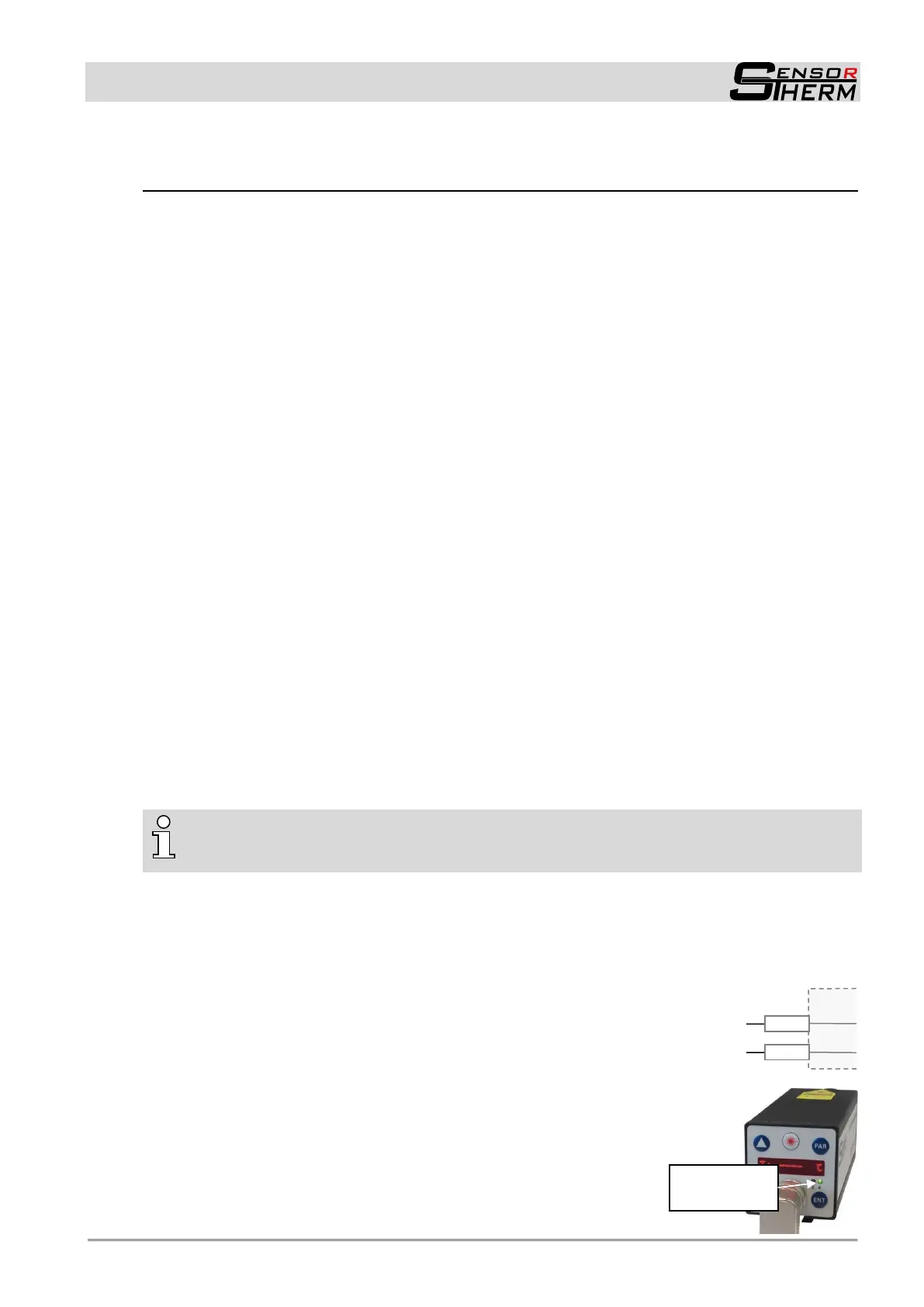

METIS M308 / M309 / M313 / M316 / M318 / M323 / H309 / H316 / H318 (12-pin)
Electrical Connection
9
M3 / H3
0 V
White
Brown
+24 V
Operating
status LED
4.1.1 Factory Settings
Parameters Factory settings
Temperature sub range ........................................ corresponds to basic range
Response time t
90
................................................. Min (corresponds to: M3: <1 ms; H3: <40 µs)
Emissivity ε ........................................................... 1.000 (corresponds to 100%)
Transmittance ....................................................... 100%
Spot size fill factor ................................................. 100%
Serial interface RS232 / 485 ................................. RS485
Data transmission speed (baud rate) .................... 115.2 kBd
Buffer mode .......................................................... Off (at “on”: buffer interval: 100 ms, single reading)
Upscale Burnout function ...................................... Off
Device address ..................................................... 00
Command delay .................................................... 00 (for RS232 and RS485)
Maximum value storage ........................................ Off
Laser targeting switch-off time .............................. 180 s
Analog output 1 ..................................................... 420 mA, output temperature: measured temperature
Analog output 2 ..................................................... 420 mA, output temperature: no temperature output
Digital input / output 1 ........................................... set to input: external switching on / off targeting light
Digital input / output 2 ........................................... set to input: maximum value storage external clearing
Digital input / output 3 / Analog in ......................... set to input: no function
Input debounce time ....................................... 100 ms
Output activation time .................................... 0 ms
Output hold time ............................................. 10 ms
Limit switch: .................................................... Center of temp. range °C / °F; hysteresis: 10°C / 20°F
Device over temperature: ............................... 50°C / 120°F; hysteresis: 2°C / 5°F
With integrated PID controller:
Analog output 2 ................ 0-20 mA, output set to
control output
Digital input / output 2 ....... Digital input: controller start
Setpoint ............................ Center of temp. range
Proportional band Xp ........ 1%
Derivative time Td ............ 0 ms
Integral time Ti .................. 10 ms
Sampling time ................... 10 ms
Ramp time ............ 0 ms
P-zsc ..................... 100%
P-max ................... 100%
P-min .................... 0%
P-Dyn .................... 100%
AutoTune .............. at each start (power: 50%)
Ramp time ............ 0 ms
Hold time .............. 0 ms
INFO to baud rate: The factory setting of the baud rate is set to 115 kBd to ensure also at
longer interface cables a working data transfer. For data transmissions with the highest speed,
baud rate and buffer mode must be adjusted (see 7.2.3.4)
With integrated Profibus-DP / Profinet:
Field bus mode: ................................ Fixed standard format M3 series
Address ............................................. 126 (delivery address)
4.1.2 Power Supply
With connection to the supply voltage (standard 24 V DC, possible range 18
30 V) the unit is ready for operation with the factory settings.
By connecting the power supply, the current firmware version is displayed for a
few seconds.
Interrupt the power supply to turn off the pyrometer, e.g. by disconnecting
the connector.
The operating status is displayed on the LED 4:
Orange in the self-test phase (M3 ca. 2 s; H3 during the initialization
and thermostatic phase for ≤ 3 min.)
Green when the pyrometer is ready
Red when an error occurred (see 10.4 Trouble-shooting).
