METIS M308 / M309 / M313 / M316 / M318 / M323 / H309 / H316 / H318 (12-pin)
Overview
7
3 Overview
3.1 Intended Use
The pyrometers Metis M3 and H3 are devices for non-contact temperature measurement. With its short-
wave spectral range they are suitable for measurements on metals, ceramics, graphite etc. with tem-
perature ranges depending on the model between 50 and 3300°C (M3) and 120 and 2500°C (H3). The
M3 models have a response time of < 1 ms. The H3 models are high-speed instruments with a re-
sponse time of < 40 µs.
3.2 Scope of Delivery
Pyrometer, software SensorTools, works certificate, user manual
(connection cables are not included in scope of delivery and have to be ordered separately).

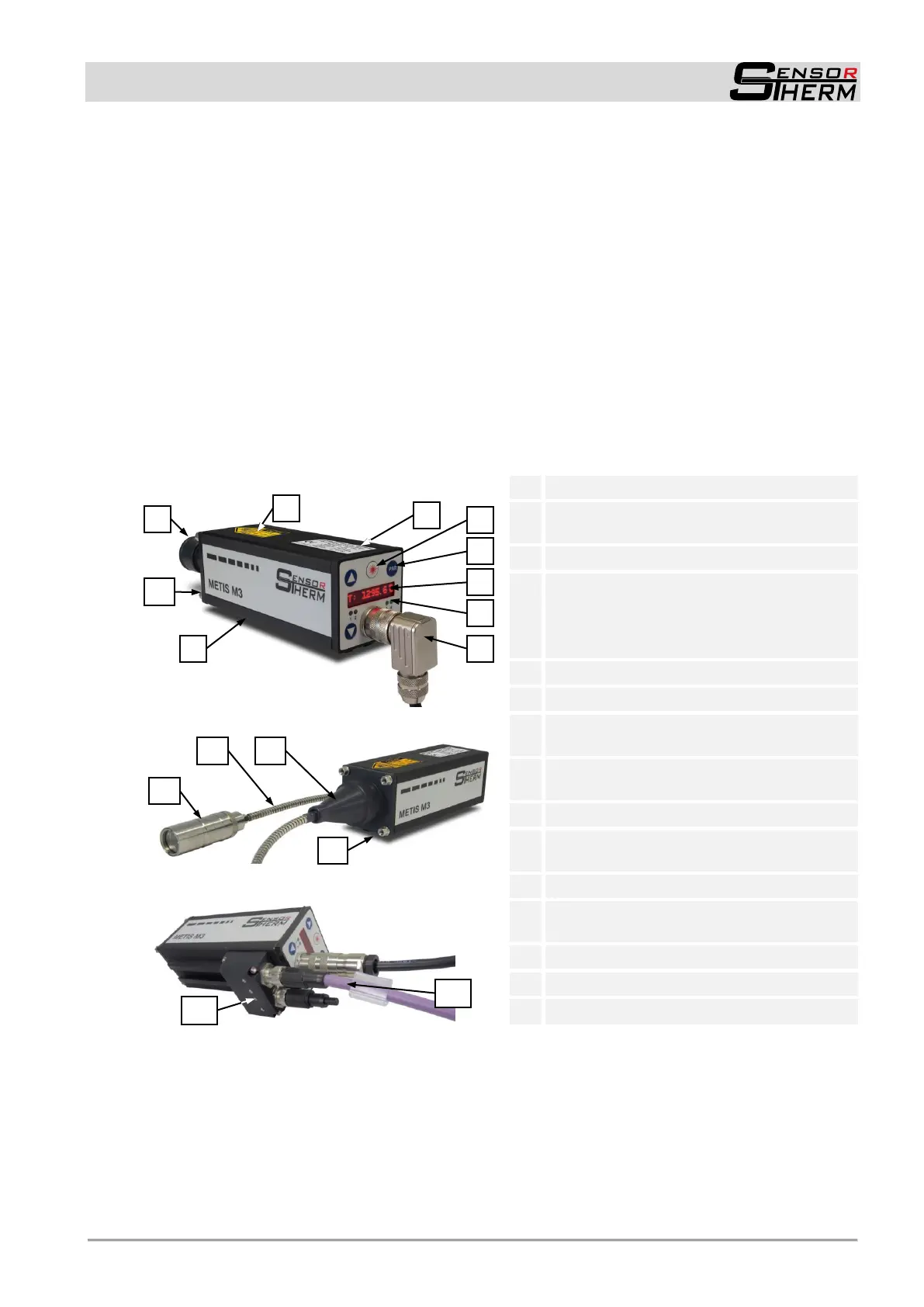

3.3 Model Designs
Standard models:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
All models feature:
2 linear analog current outputs
A serial interface (M3: RS232 / RS485 switchable; H3: RS485)
3 configurable inputs / outputs
Software SensorTools (included)
Optional sightings: laser targeting light, camera or view finder
Different optics for different measuring distances
Differences in models with fiber optics:
12
11
13
1
10
3
4
5
6
7
8
9
10
2
Additionally at models with Profibus / Profinet:
14
15
