SensorTherm METIS H3 series User Manual

METIS M308 / M309 / M313 / M316 / M318 / M323 / H309 / H316 / H318 (12-pin)
SensorTools Software
40

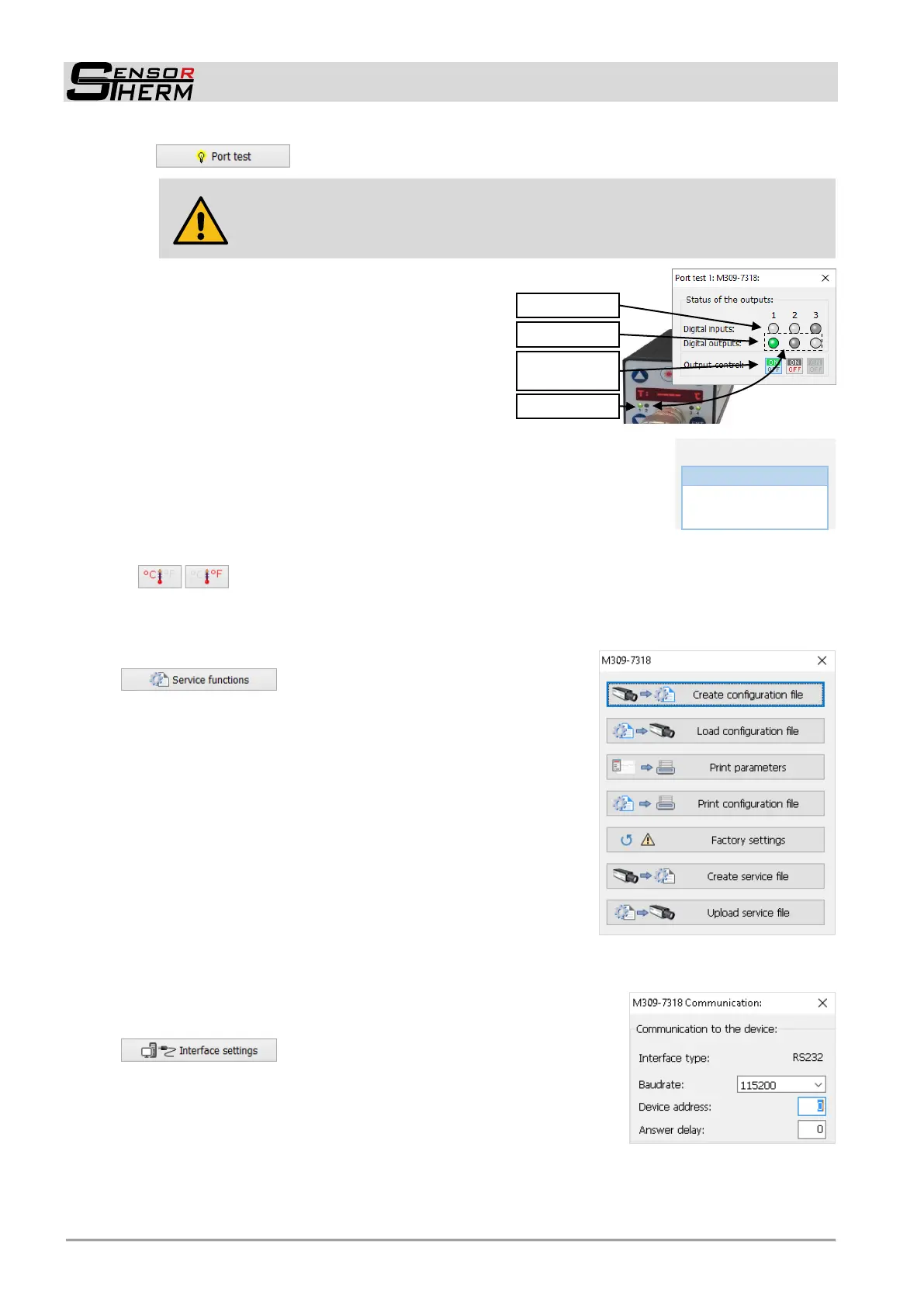

- Here, digital inputs and outputs can be checked for their functionality.
CAUTION when using the Test function with connected systems!
Using the test function will activate the selected outputs.
All connected systems will start working.
Always pay attention to the security instructions of these systems!
Click on an output check box to activate the cor-
responding output 1, 2 or 3 (only possible for digi-
tal outputs selected in the device settings). A
green LED symbol signalizes the activation.
Digital inputs are marked with a green LED sym-
bol if connected and active.
Activation of outputs 1, 2 or 3 will also activate
the LEDs on the pyrometer.
 Analog input mode: an external current enables
- External emissivity setting
- External setpoint setting (when equipped with a PID controller)
- External measuring distance adjustment (only M3 devices with motor-
ized focus)
 Temperature unit:
The temperature can be displayed and entered in °C or °F. Changing the mode will not
change the entered values, no conversion will be done.
7.2.3.2 Service Functions
To back up, for printing or restore device
parameters or create service files for remote diagnosis of prob-
lems.
 Create configuration file: A configuration file includes all de-
vice settings made by user. This can be used e.g. to setup a
new pyrometer with the same values and settings or to save the
current status in case of a device replacement.
 Load configuration file: load a previously saved configuration
data in the pyrometer.
 Print parameters: Prints the parameters of the currently con-
nected device.
 Print configuration file: Prints a saved file.
 Factory settings: Resets the device to its factory defaults.
 Create service file: A service file includes all device data and all
software settings made by user. Creating such a file can be use-
ful if a problem can’t be solved and help from our service could be useful.
 Upload service file: Transmitting a (possibly modified) file to the device it was created from.
7.2.3.3 Interface
For setting the baud rate (see 6.3.13), device
address (see 6.3.14) and interface delay (= answer delay, see
6.3.15).
Output check
Input check
Click to activate
output
Output LEDs
No function v
Function
Emissivity
Setpoint
Measuring distance
