4 Chapter 1: Introduction
DUG-10009-01 RTM II FlexNet User Guide

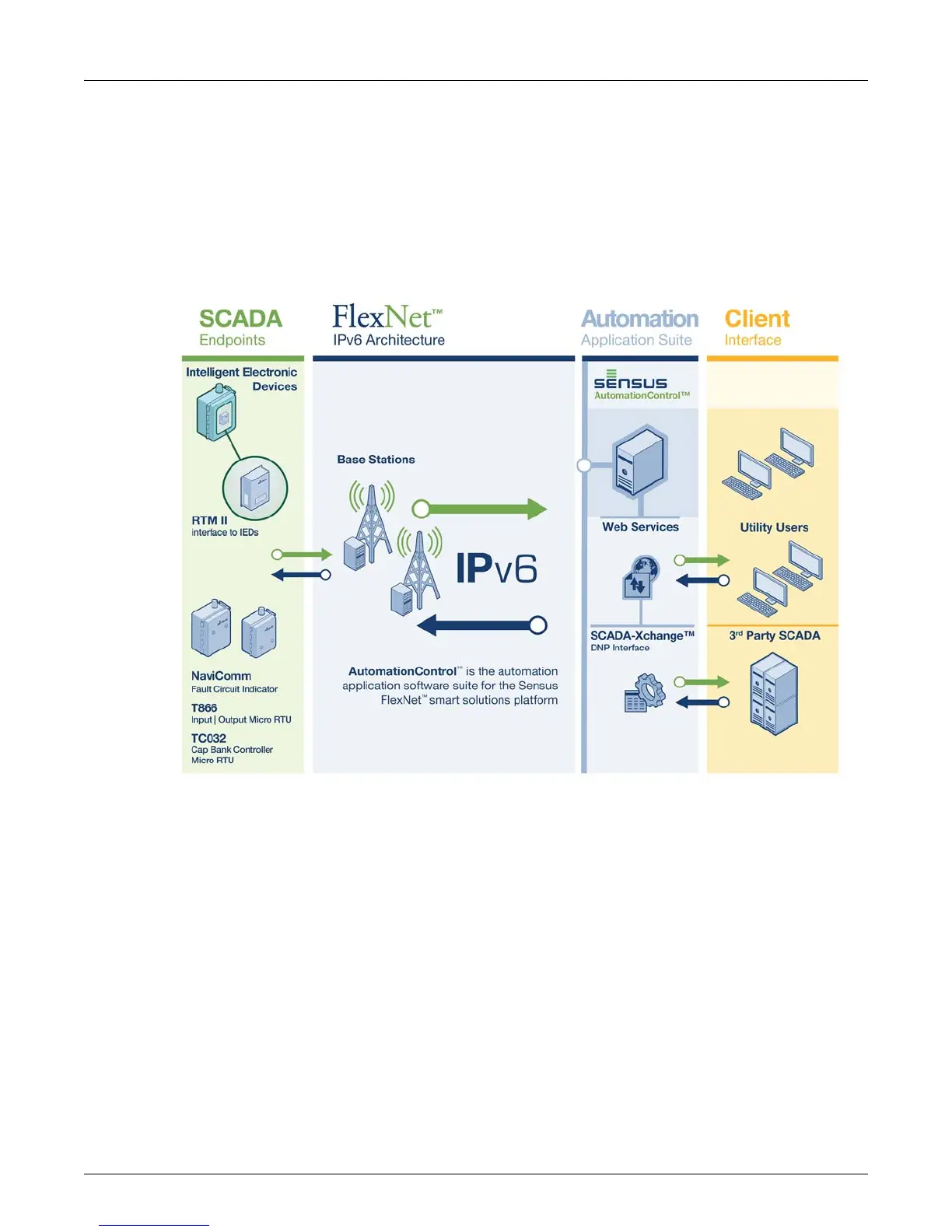

1.2 How it Works
The RTM II is programmed with a profile detailing the relevant points on the IED as well as how the user
wants the data to be reported. The RTM II accepts DNP unsolicited report-by-exception as well as
constantly polling the IED to get the latest data. When it discovers a reportable event, for example a
binary input that has changed state, it initiates a report over the radio network to AutomationControl.
Here, the data is validated and processed for distribution to the end user. In addition, control and
configuration information can be sent from the end user back to the RTM II.
