22 Appendix A: Basic Integration Guidelines
DUG-10009-01 RTM II FlexNet User Guide
2. Once your holes are drilled, use 4 bolt/nut pairs to secure the RTM II to the IED enclosure.
We recommend 4-40 x 3/8-inch pan bolt and Size 4 kepnuts.

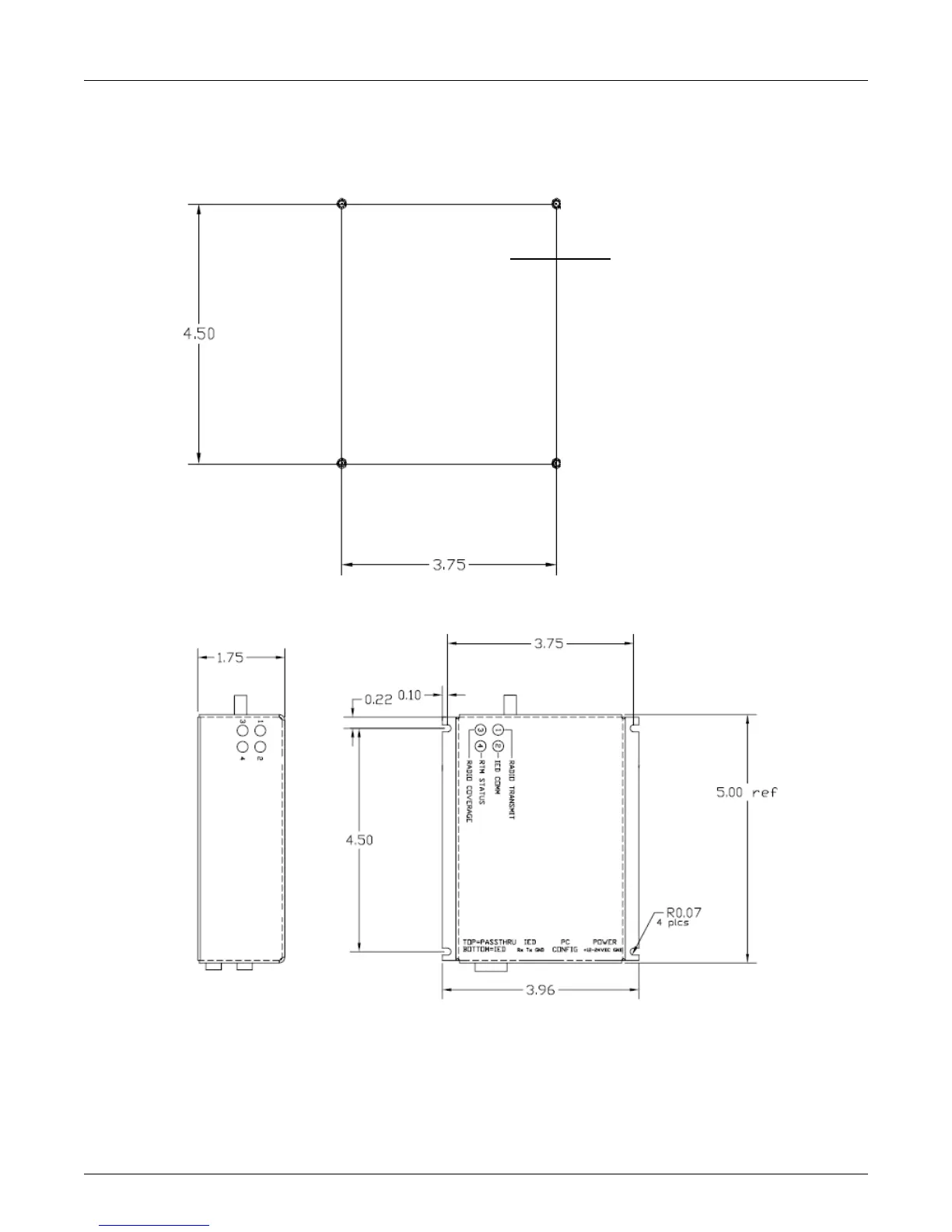

Below are drawings of the RTM II dimensions, connector locations, and a drill hole diagram.
RTM II Mounting Hole
Footprint
