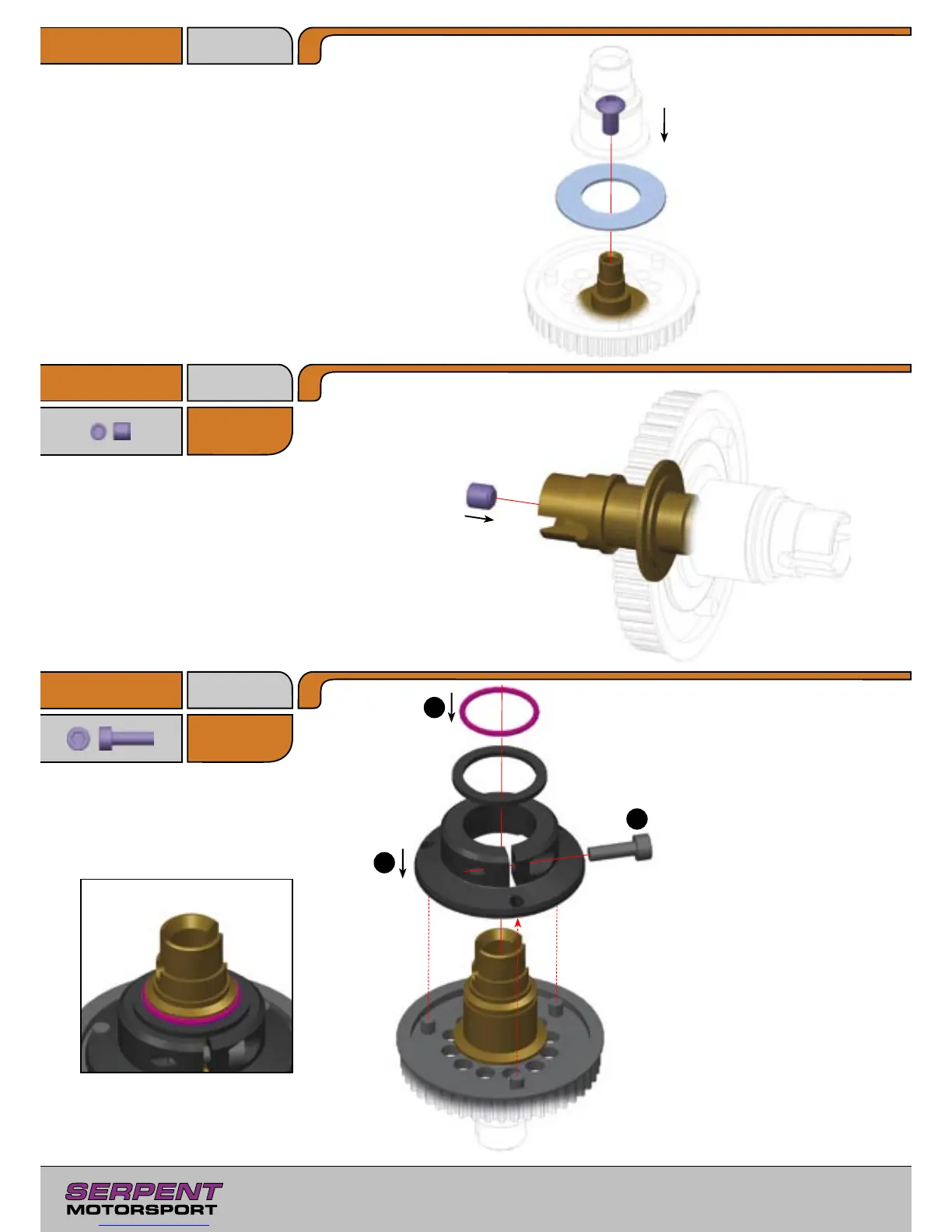

Differential Adjustment
Adjust the diff friction collar to adjust
the differential action. Tighten the
adjustment screw to increase the
spin-resistance of the differential;
loosen the adjustment screw to
reduce the spin-resistance of the dif
-
ferential. The tighter the diff collar,
the more the differential resists the
difference in speed between the inner
and outer wheel. As a rule of thumb,
the more grip a track has, the tighter
the diff collar should be.
Use this screw to apply pre-load
to the differential. Tighten it so
that the diff pulley doesn’t slip
while holding both diff shafts but
still turns as freely as possible.
Tighten this locking setscrew to
lock your initial setting.
Bag 22
H16
F12
