Serpent 710 - 4.0 Shock Assembly; Shock Component Assembly

16
Step 4.1
Bag 28
R1
1.9mm
N3
3x6mm
R2
2.3mm
Y17
12.1x1.6mm

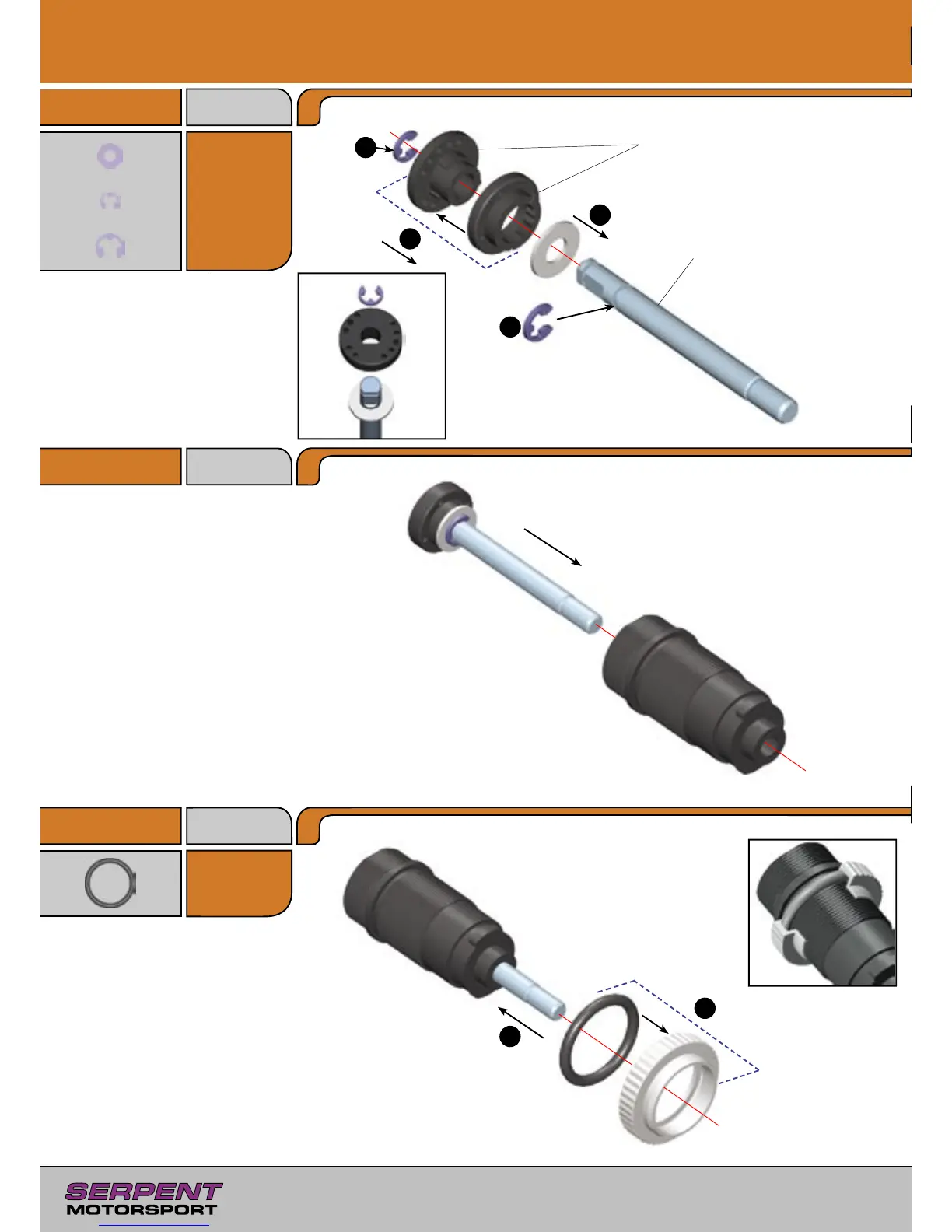

4.0 Shock Assembly
Front shocks: short shock shaft and body
Rear shocks: long shock shaft and body
Remove plastic flashing for smooth
movement of pistons. Tab in upper piston
fits in notches in lower piston
R2
N3
4
R1
Y17
3
2
1
2
1
Step 4.2
Step 4.3
Lubricate shock shaft with shock oil
before inserting in shock body.
