Step 3.13
Step 3.14
H8
3x3mm
P1
2x10mm
1
1
1
4
3
2

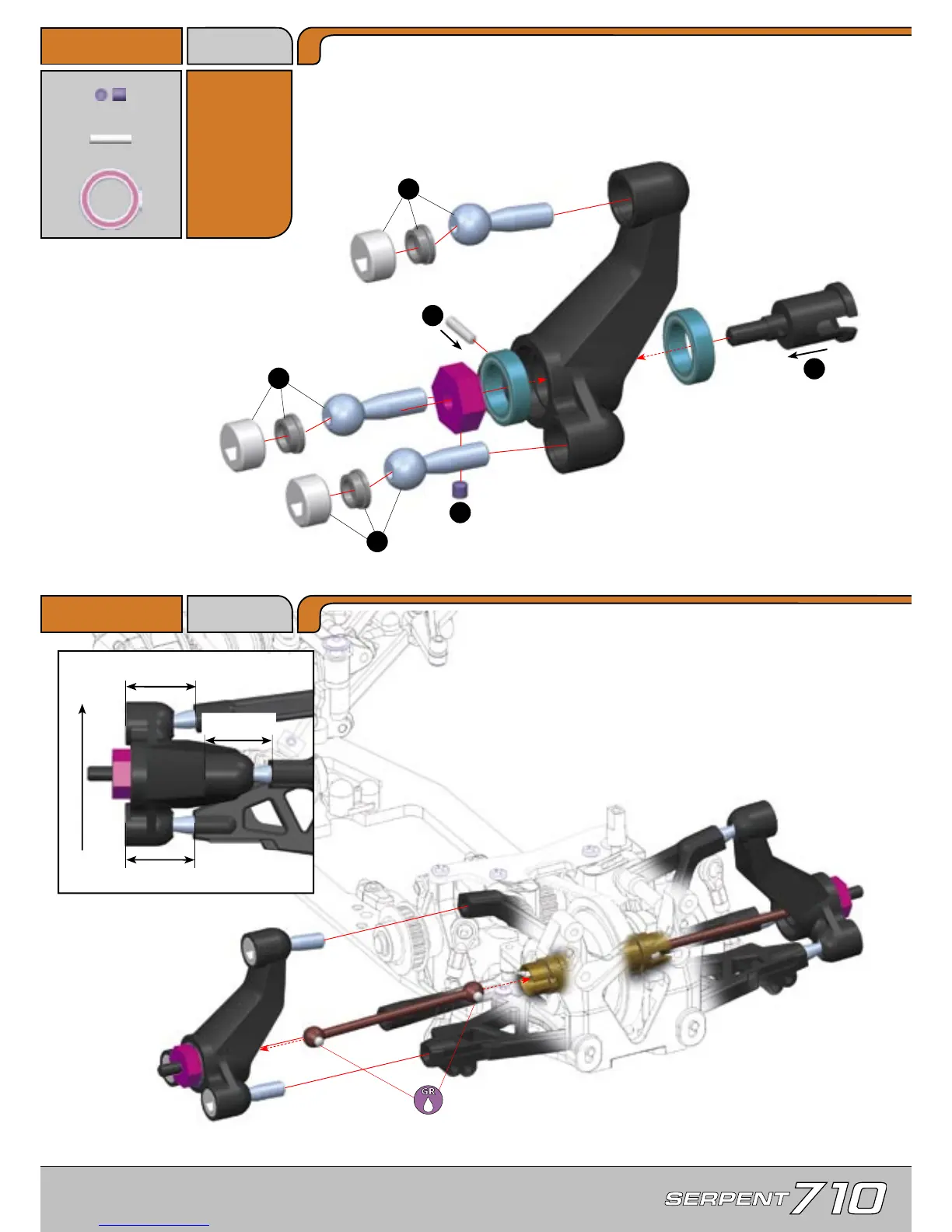

Assemble both rear hubs
using the indicated steps.
Do not overtighten alu plugs.
Pivotballs should move freely
without binding or excessive play.
Assemble both rear hubs
using the indicated steps.
IMPORTANT!
Ensure the rear suspension moves up
and down freely without binding.
19mm
19.5mm
18.5mm
Front
Rear
Bag 01,
27, U
U11
10x15mm
U11
U11
P1
H8
To Next Page
