Serpent 710 - 1.0 Front Assembly; Front Lower Arm Assembly; Upstop and Roll Center Setup

4

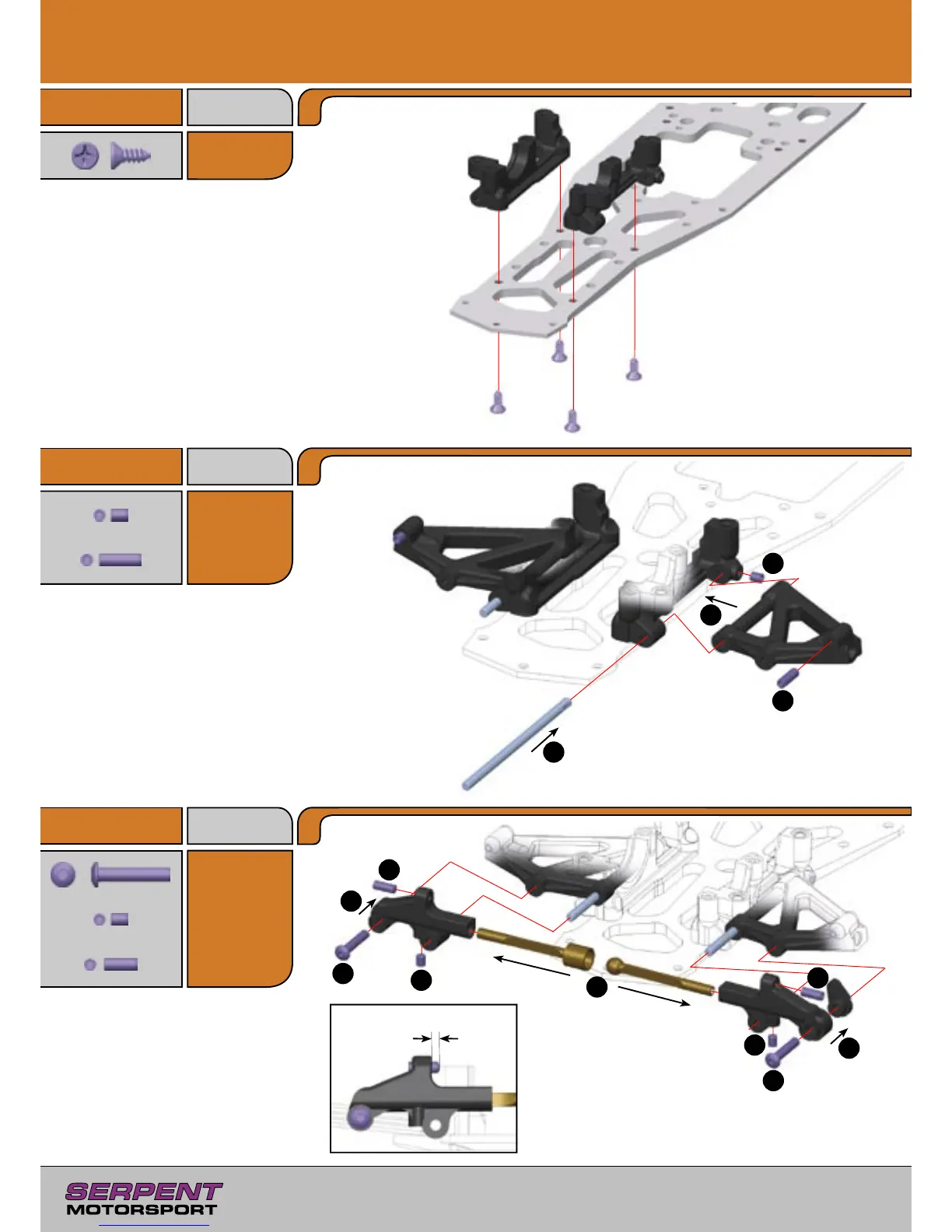

Step 1.1
Bag 06,
16, B12
B12
3.5x9.5mm
E14
3x16mm
1.0 Front Assembly
Step 1.2
Step 1.3
3
2
4
1
1
3
5
2
2
5
4
4
3
Assemble both front lower arms
using the indicated steps.
2mm
IMPORTANT!
Adjust both left
and right upstop setscrews
equally, otherwise the car may
become tweaked under braking.
H12
3x10mm
H9
3x4mm
H9
3x4mm
H11
3x8mm
Bag 02, 15
Bag 04
B12
B12
B12
B12
H9
H12
H11
E14
H9
H11
E14
H9
