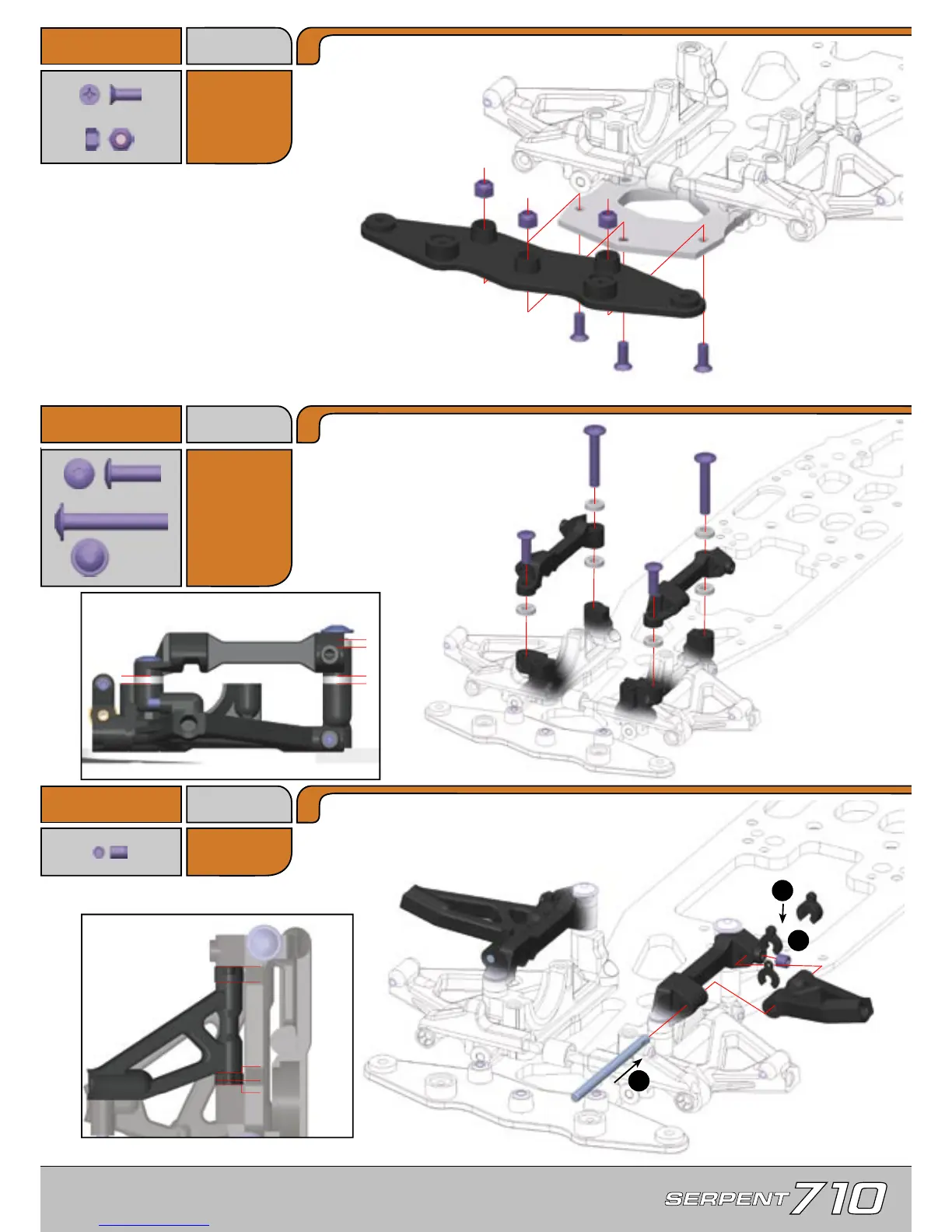

Serpent 710 - Page 5

G11
3x8mm
5
Step 1.4
Step 1.5
Step 1.6
3
2
1
Assemble both front upper arms
using the indicated steps.
Default placement of front roll
center alu spacers
4mm
2mm
1mm
Caster Spacer Placement
<
>
L3
M3
E20
4x12mm
EF23
4x25
Bag 06, 17
H9
3x4mm
Bag 02, 15
G11
G11
G11
L3
L3
L3
EF23
EF23
E20
E20
H9
Dont tighten screws EF23. They
will be removed in step 6.7.
<
