Serpent 710 - 3.0 Rear Assembly; Rear Lower Arm and Belt Tensioning

11
G22
4x20mm
F15
3x20mm
3.0 Rear Assembly
Q11
3x10mm
Step 3.1
Step 3.2
Bag 05, 08
Bag 23
E12
3x10mm
Step 3.3
Bag 07,
13, U
U13
12x18mm
2
1
2
1
3
1
1
2

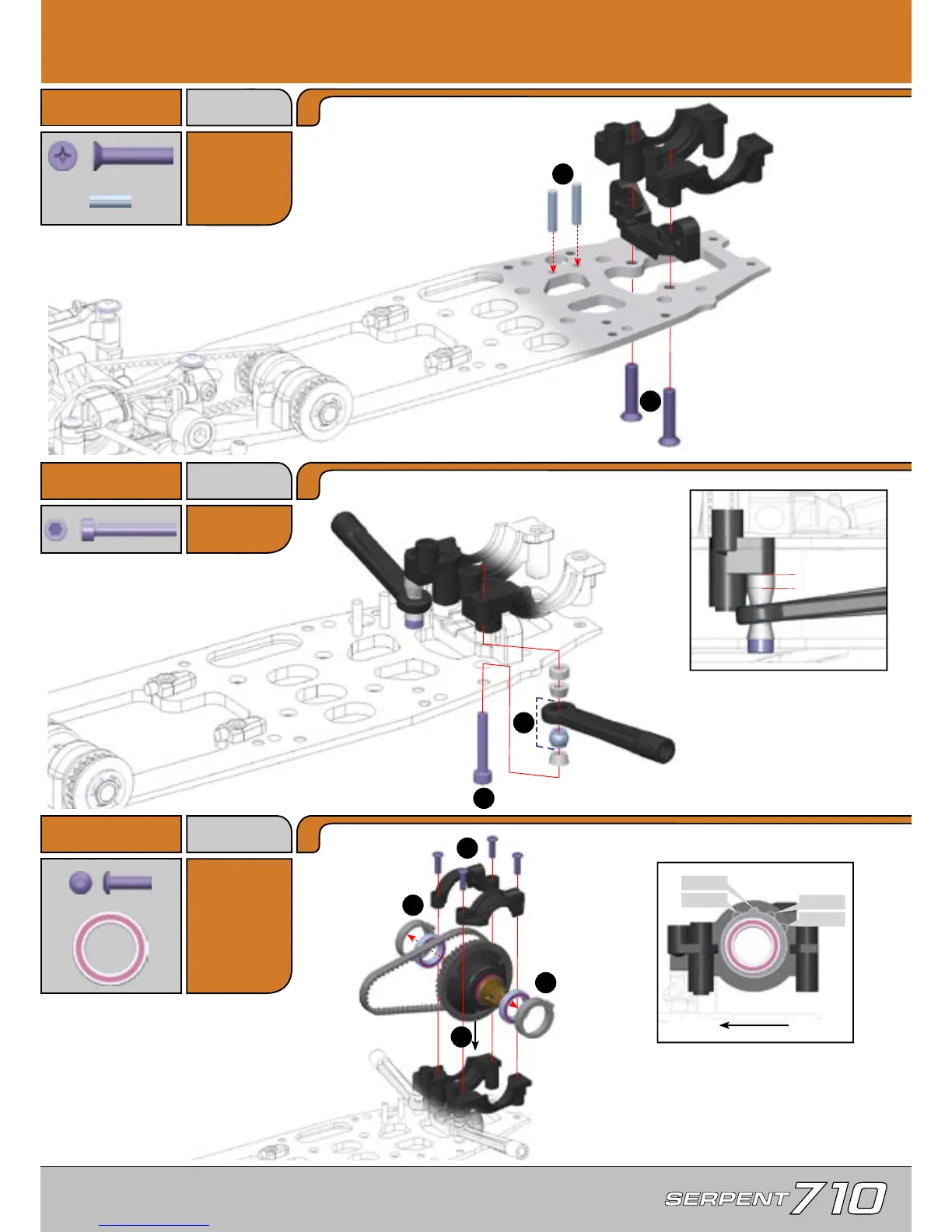

Assemble both lower arms using
the indicated steps.
Press pins into chassis so they
are flush with bottom.
Default position of Dynamic Rear
Steering (DRS) spacer.
Press ball into end of arm
until it snaps into place.
Change the position of BOTH
eccentric hubs to adjust rear
belt tension. Both hubs should
have the same position.
<
Tighter
Default
Loose
Looser
G22
G22
Q11
Q11
F15
E12
E12
E12
E12
U13
U13
Front
Rear
