Serpent 710 - 9.0 Final Assembly; Drive Train Component Installation

29
E11
3x8mm
H11
3x8mm

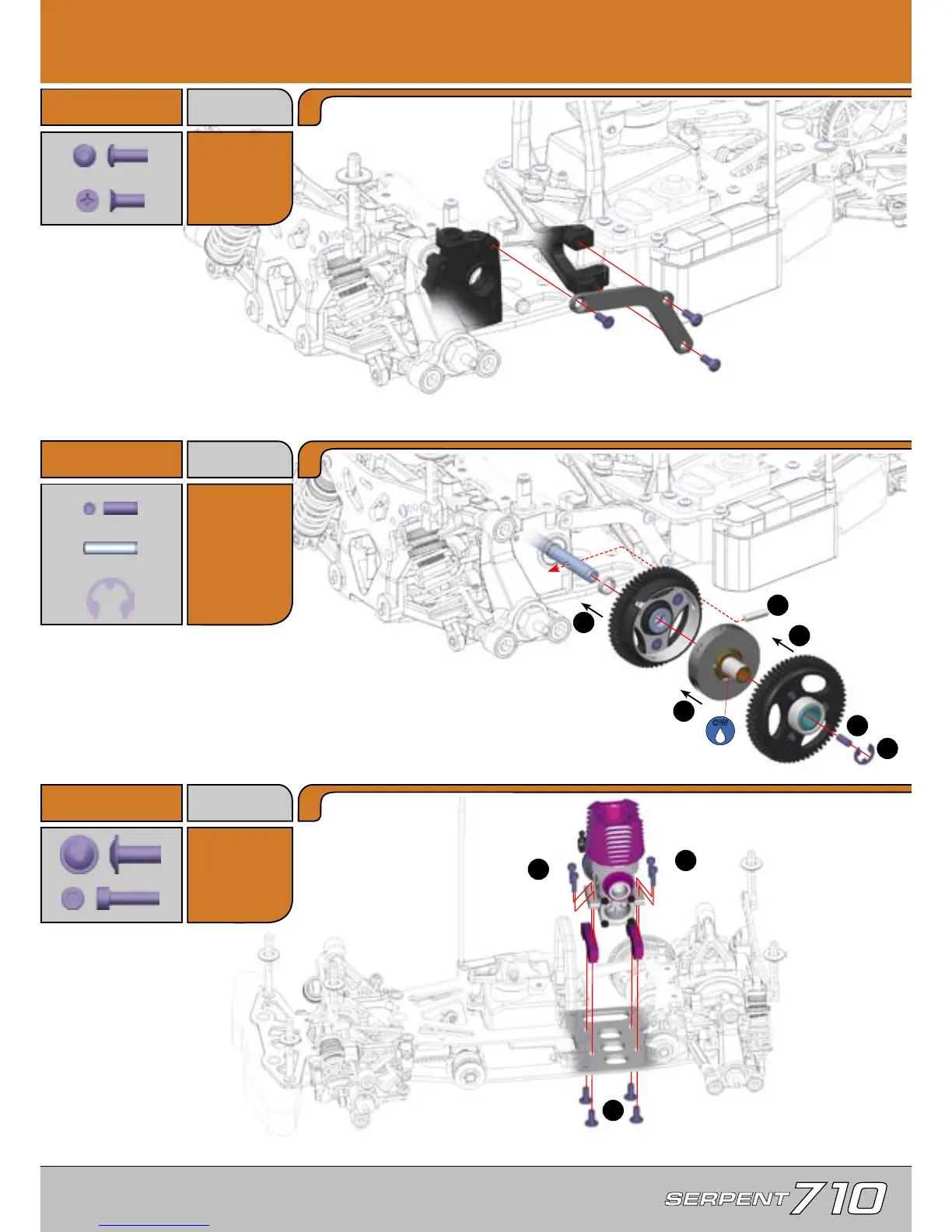

9.0 Final Assembly
Step 9.1
Bag 14,
37, E11
Step 9.2
G11
3x8mm
EF19
4x10mm
Step 9.3
1
2
3
4
6
2
1
1
Adjusting the 2-speed shoe gap
Loosen the gap-setting setscrews (H8 in step 7.1) to allow
the shoes to rest on the drive adaptor.
Install the 2-speed shoes in the 2nd gear carrier, but do NOT install the 1st gear.
There should be equal but minimum spacing between the 2-speed shoes and the 2nd gear carrier.
Tighten BOTH gap-setting setscrews until the shoes touch the inside surface of the aluminum 2nd
gear carrier, then loosen BOTH screws by 1/2 turn each. The 2nd gear carrier should spin freely.
Install the 1st gear.
OW
F13
3x12mm
G11
E11
E11
P13
R5
EF19
EF19
EF19
EF19
F13
F13
F13
F13
R5
5mm
P13
3x14mm
5
H11
