28
M11
5x8x0.1mm
5x8x0.3mm
Step 8.6
Step 8.7
Bag U

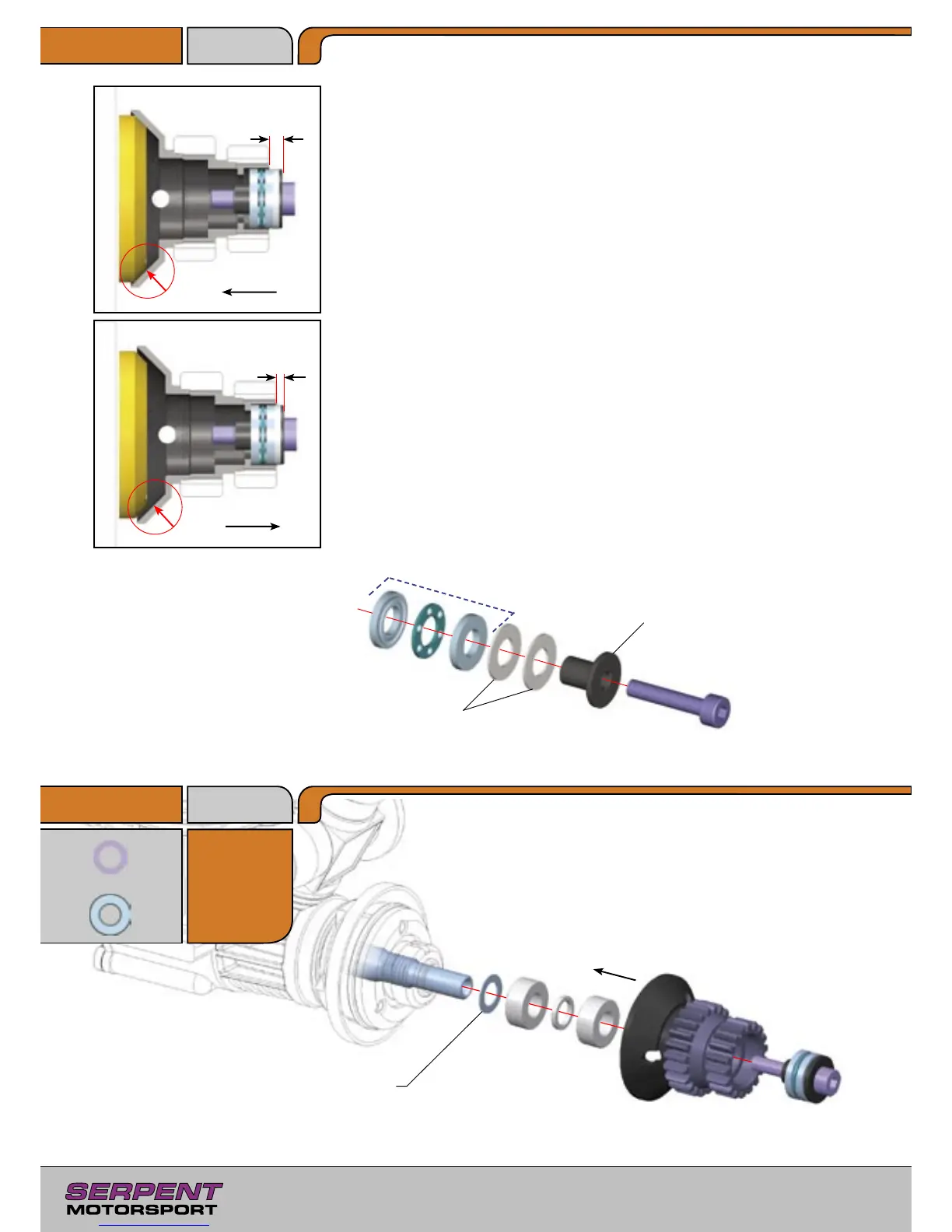

Adjusting the clutch gap
Install only the clutchbell and the thrustbearing assembly on the engine crankshaft.
Push the clutchbell onto the clutch shoe, and then measure the distance A as indicated.
Pull the clutchbell away from the clutch shoe, and then measure the distance B as indicated.
The clutch gap is A – B; the correct gap is 0.7mm.
If the clutch gap is greater than 0.7mm, you can easily calculate the thickness of shims
required to set the correct gap:
Thickness of shims required (in mm) = A – B – 0.7
For example, using the values A=1.3mm, B=0.3mm
Shim thickness = 1.3 – 0.3 – 0.7 = 0.3mm
Place shims between the outer thrustbearing plate and the rim of the thrustbearing carrier as
shown.
A
B
Shims
Thrustbearing
Thrustbearing carrier
Pull
Push
Add small shims to allow only
small amount of endplay.
U4
5x10mm
M11
U4
U4
