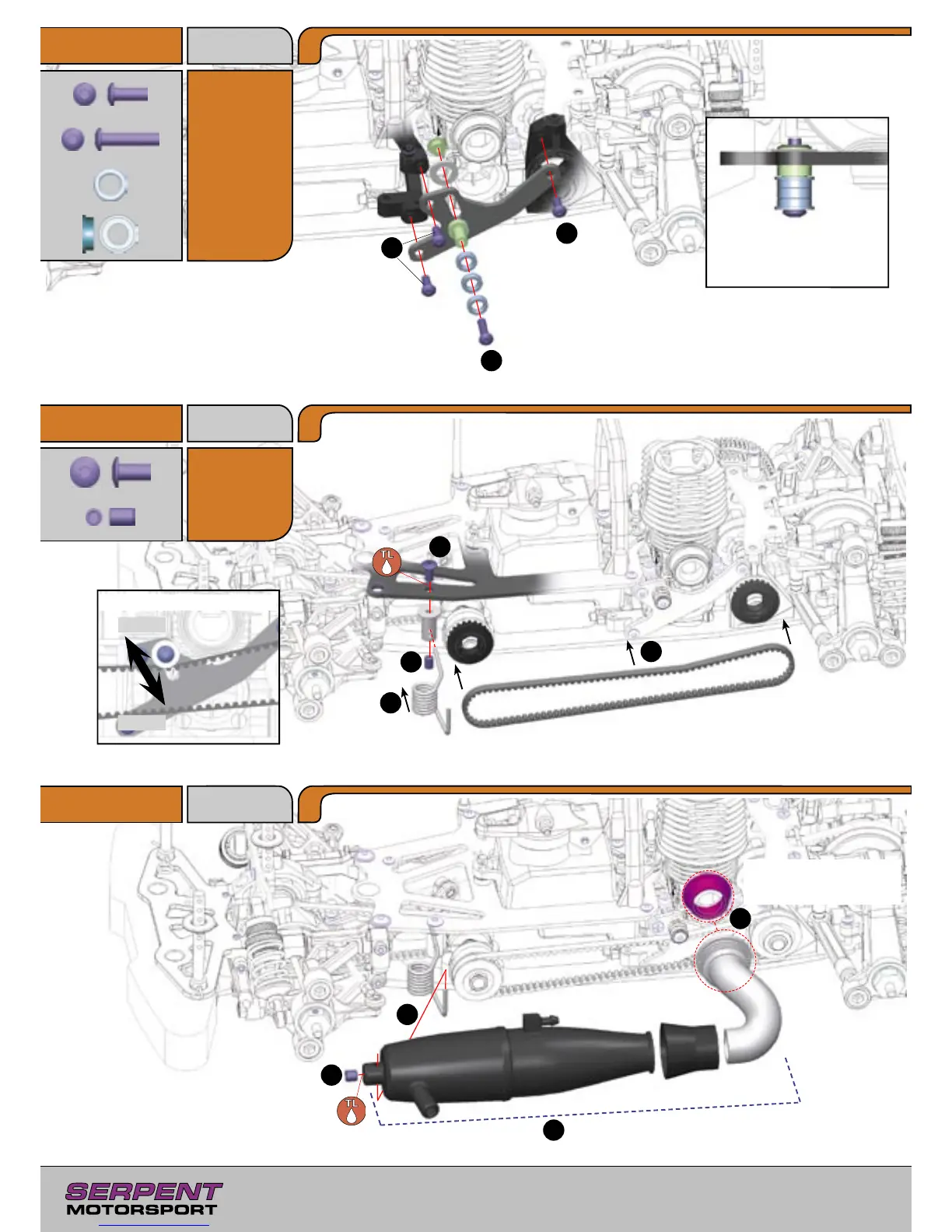

Serpent 710 - Exhaust and Wheel Installation

30
E11
3x8mm
E28
3x14mm
E18
4x8mm
H17
4x6mm
Step 9.4
Step 9.5
Step 9.6
1
2
2
1
4
2
3
2
3
4
1
Orientation of belt tensioner
bearings
Looser
Tighter
Side Belt Tension Adjustment
Assemble pipe to the correct length.
Secure exhaust header to
engine using appropriate
springs (not included).
Bag 14, 38
E11, U
U3
5x8mm
V3
5x8mm
Bag 39
E28
E11
E11
E11
V3
V3
U3
H17
E18
