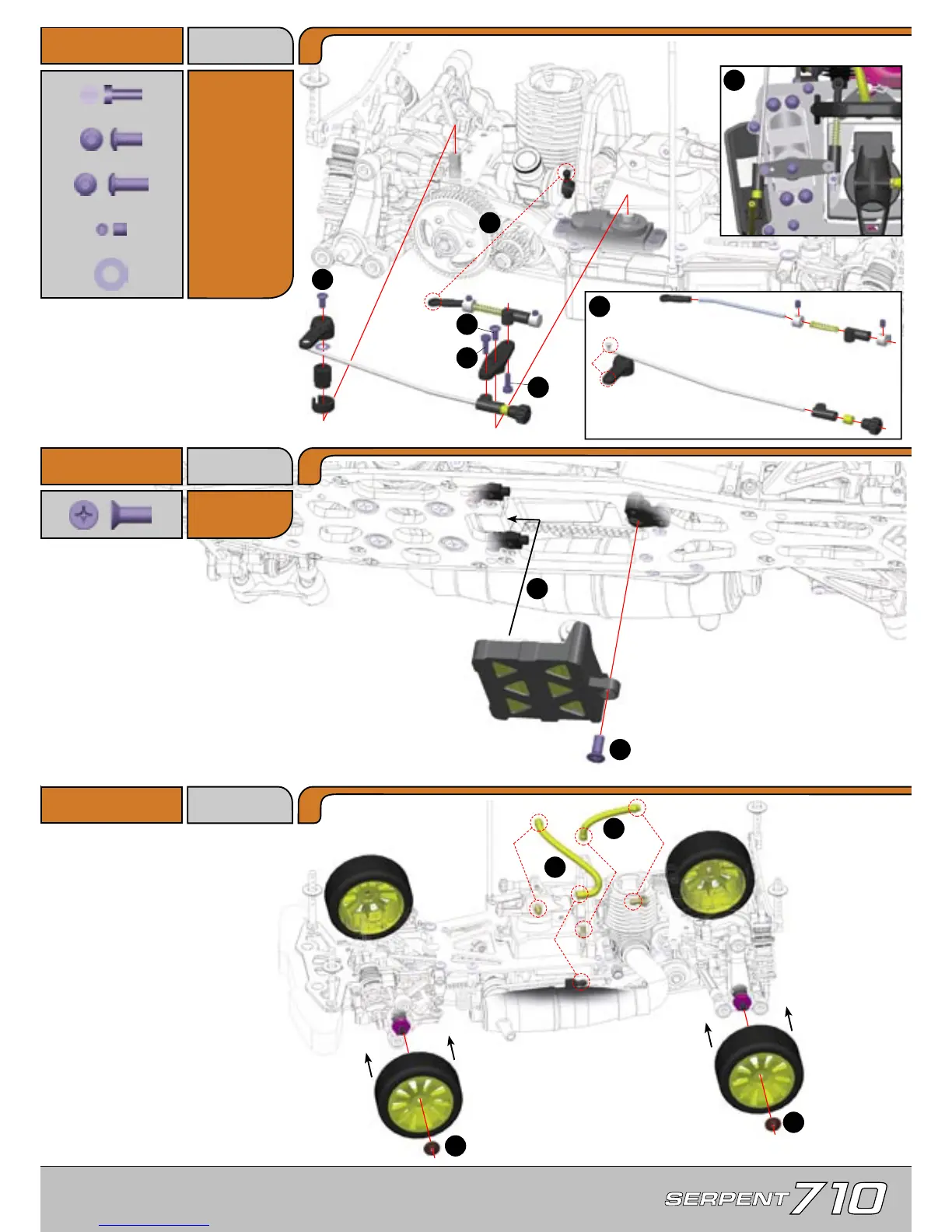

Serpent 710 - Page 31

31
C5
2.5x8mm
E10
3x6mm
Step 9.7
G19
4x10mm
Step 9.8
Step 9.9
1
2
2
3
1
1
Securely attach a AAA 5-cell receiver
battery pack to the battery tray.
Note: Serpent offers the pre-built
5-Cell battery set (#801173) for the
Serpent 710. For more information,
see the appropriate product page on
myTSN.com
Front tires (narrow)
Rear tires (wide)
The number on the servo
arm corresponds to the
number of teeth.
23 - Sanwa / KO / JR
24 - Hitec
25 - Futaba
Bag 40, 41
E10, E11
E11
3x8mm
H8
3x3mm
G19
Carb Linkage
Cut one of the long
pieces to 5cm
Brake Linkage
1
Note position of carb linkage
2
3
4
5
6
5
M6
4x8mm
M6
E11
E10
C5
C5
H8
H8
Wheels supplied with this
kit may vary from those
shown in the image.
Fuel line length - 10cm
Pressure line length - 13cm
