22
STEp 33 STEp 34
33.1
33.2
M3x3
M3x3
M3x3
M3x3
5X8X2.5 Flanged
5x8x2.5 Flanged
4x6x1
4x6x0.5
4x6x1
4x6x0.5
M3x10
2
1

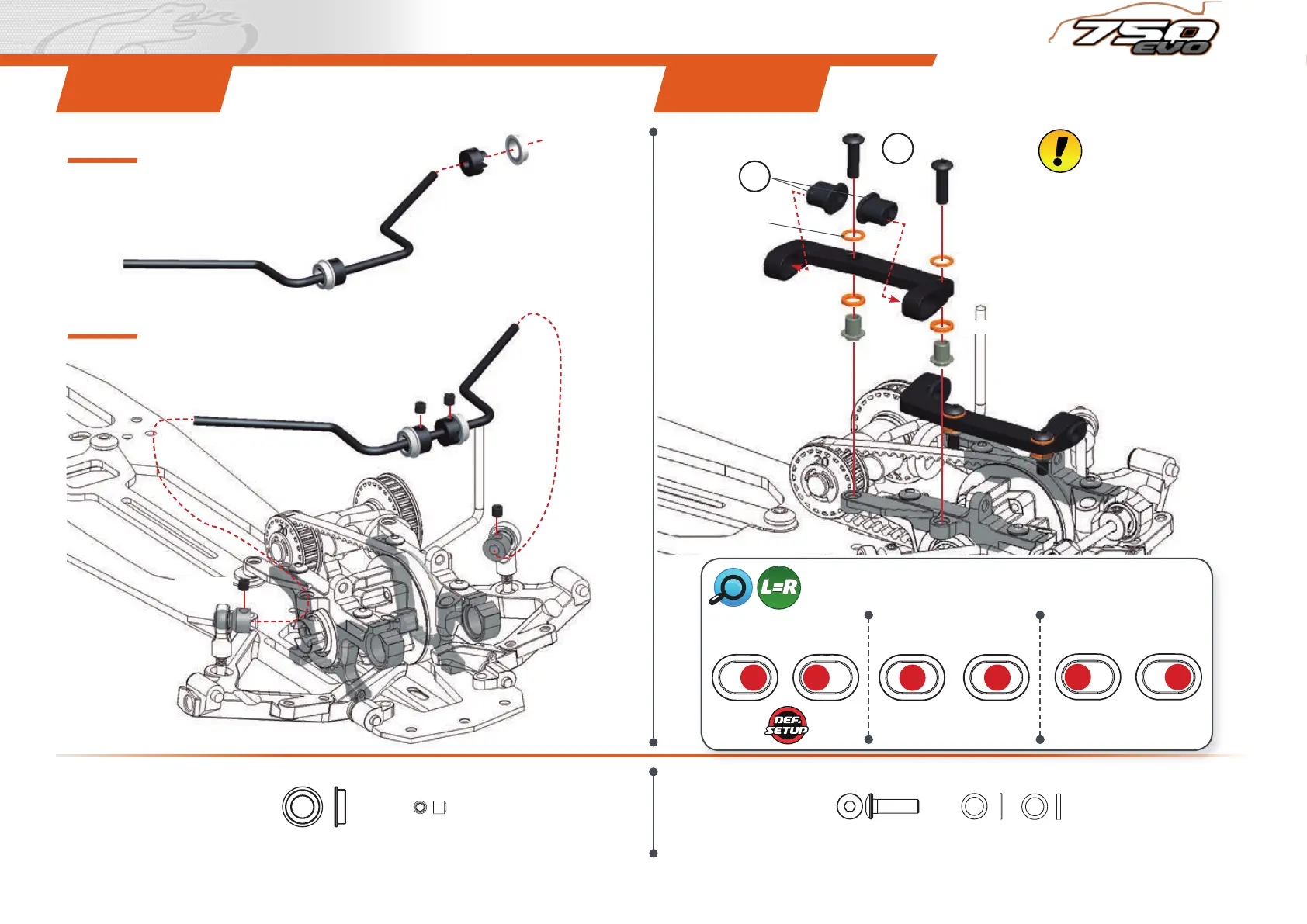

FRONTSUSPENSIONINSERTSCHART
INSIDE
OUTSIDE
RIGHTRIGHT
RIGHT
LEFT
LEFT
LEFT
MID
M3x10
4x6x0.5
4x6x1
Note that the 4x6x1 and
4x6x0.5 shims must be used
always. In order to rise or
lower the front suspension
bracket it is needed to play
with the position og the shims
but never remove them. Is it
possible to go from “0” with
no shims under the bracket
to 1.5mm with both shims
under the braket.
