Serpent 750 EVO - Shocks Assembly

35
STEp 59

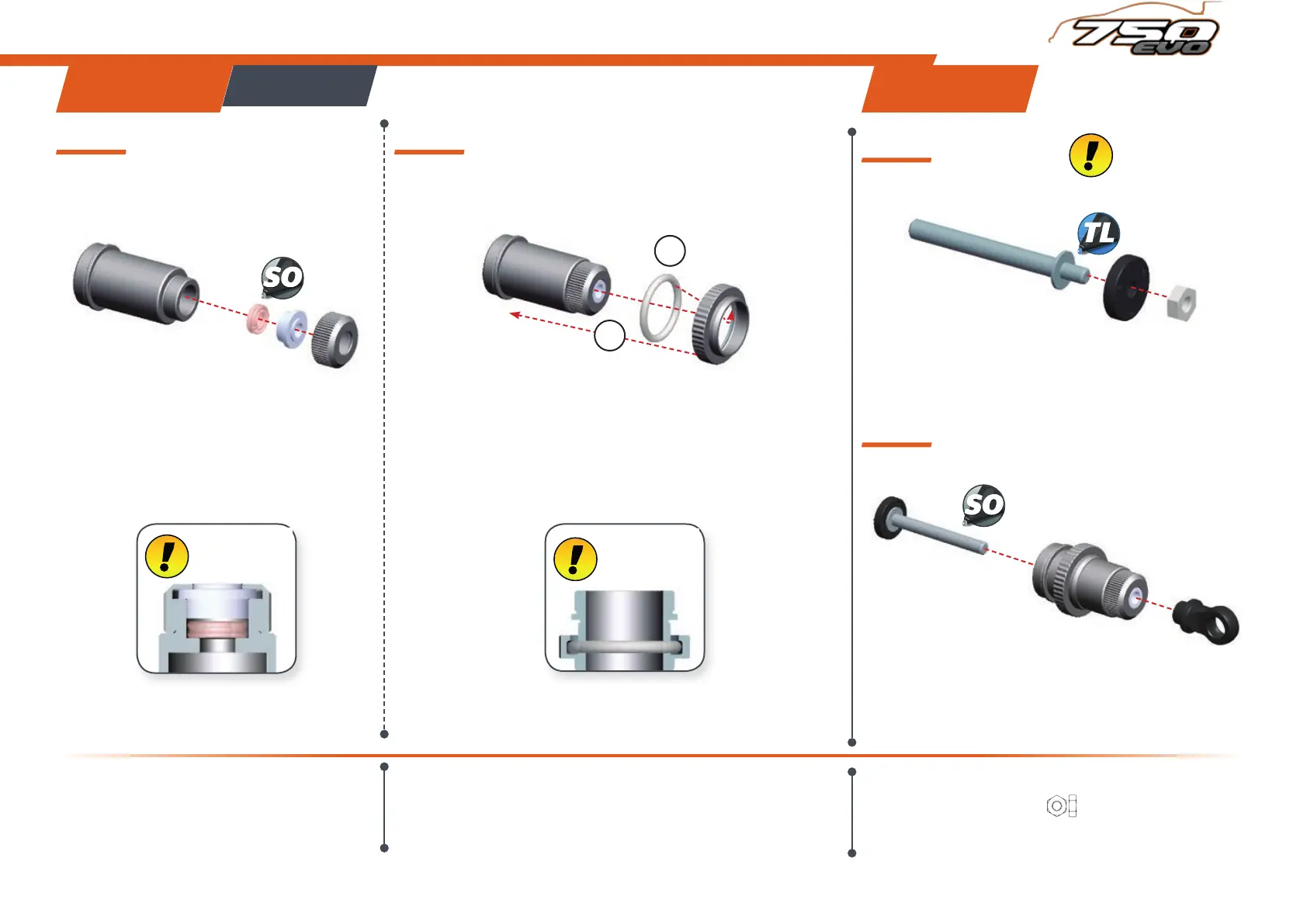

ShOCkS aSSEmbly
59.1 59.2
Use some silicone oil
during the assembly.
Insert the o-ring
inside the spring
collar.
Note the correct
orientation of the
shock spacers .
Note the
correct position
of the o-ring .
1
2
60.1
60.2
Use some silicone oil
during the assembly.
For the correct
piston holes please
check the default
setupsheet.
STEp 60
Nut M2.5
Nut M2.5
ShOCkS bag
