Serpent 750 EVO - Rear Differential Assembly

REaR DIff bag
6
REaR DIff aSSEmbly
1.7x8.5
1.7x8.5

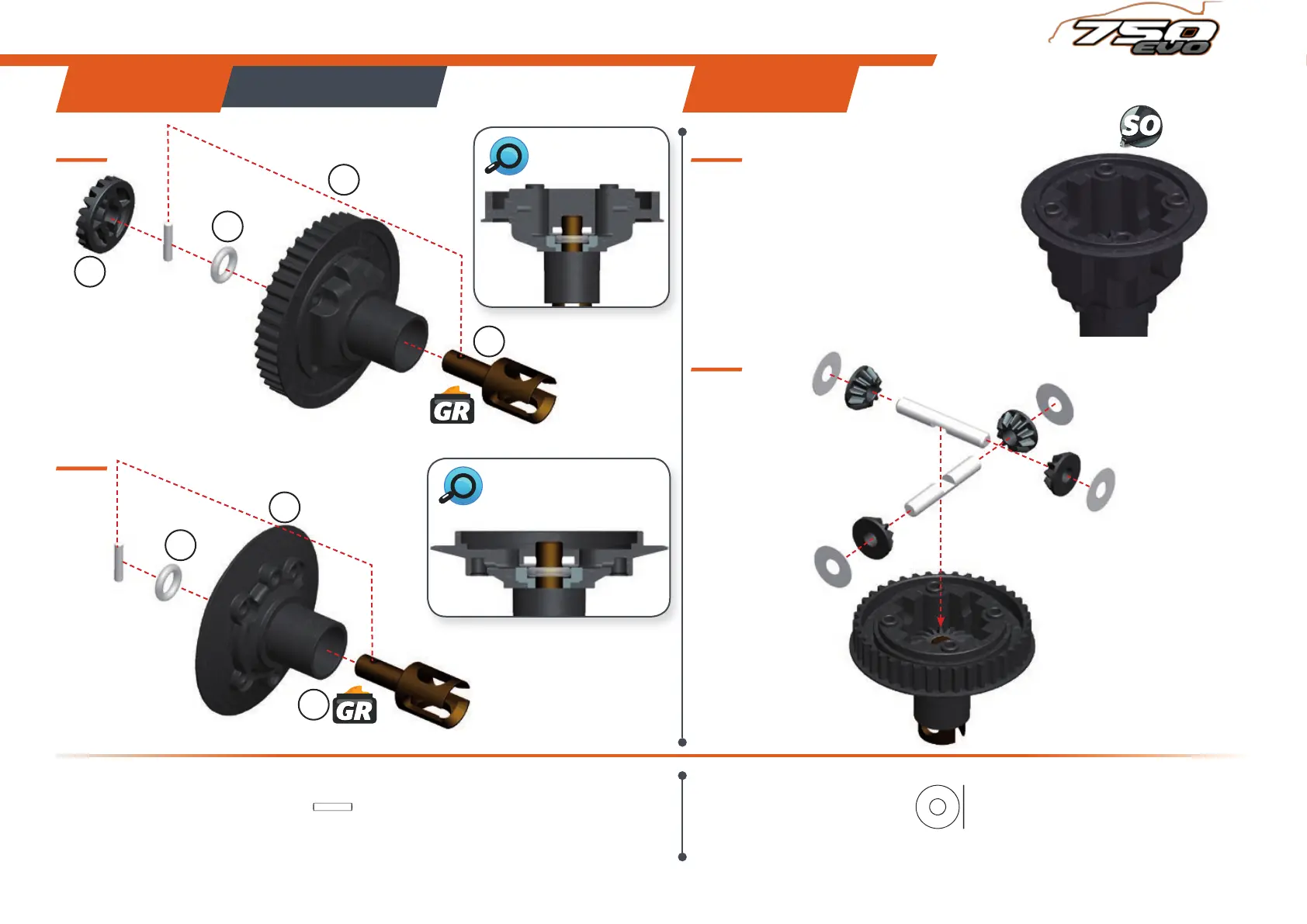

STEp 6
6.1
6.2
3
3
4
1
1
2
2
STEp 7
Add just enough oil to cover the large gear
before assembling the small satellite gears and
cross pins.
For the correct cst value please check the default
setupsheet.
7.2
7.1
Note the correct pin
location.
Note the correct pin location.
4x10x0.2
4x10x0.2
4x10x0.2
4x10x0.2
1.75x8.5
4x10x0.2
