Serpent 750 EVO - Rear Lower Suspension and Shock Brackets

9

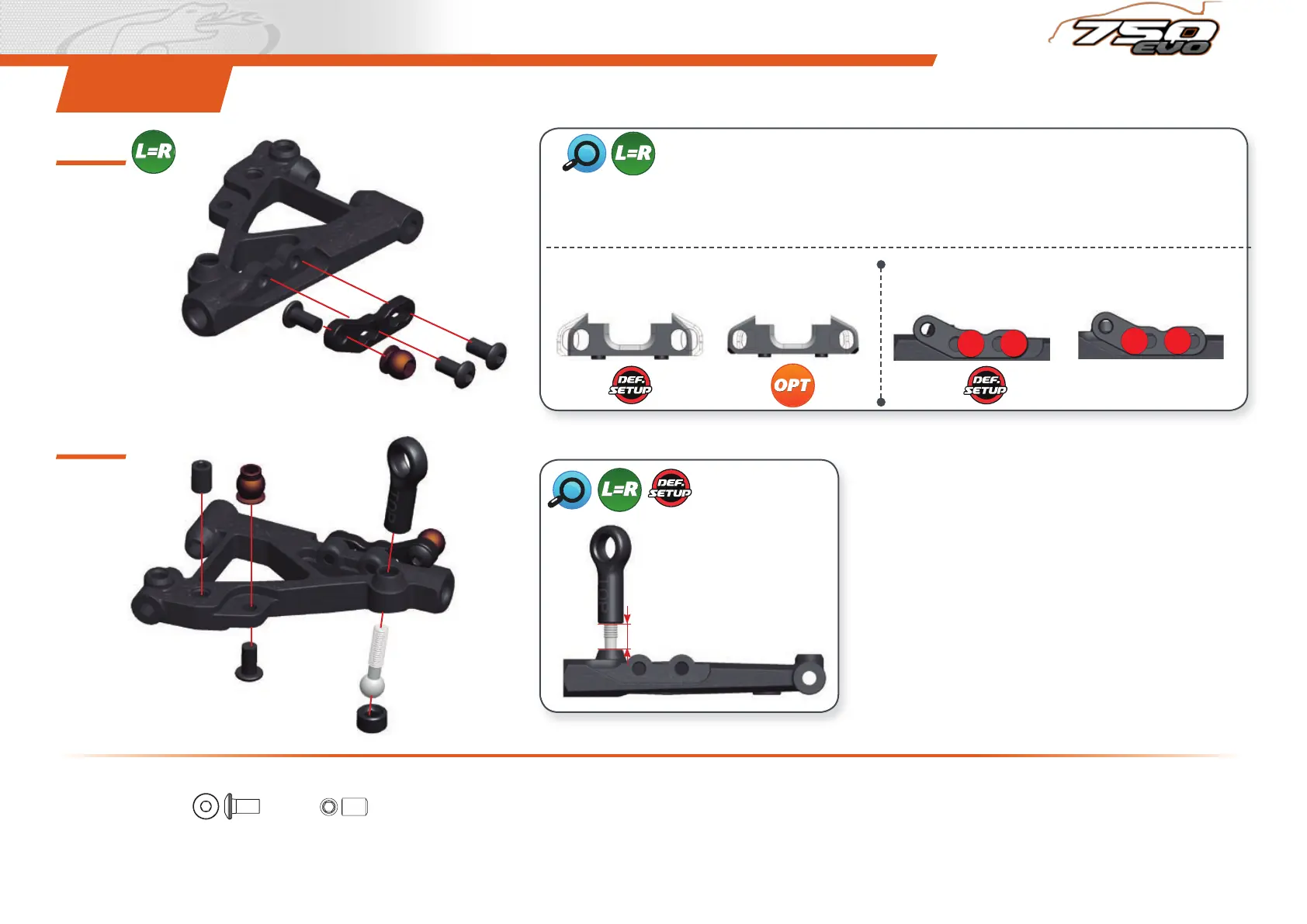

STEp 13
M3x6
M3x6
M3x6
M4x6
13.1
13.2
5.5 mm
REARANTIROLL
BARRODLENGTH
M3x6
M4x6
REARLOWERSUSPENSIONANDSHOCKBRACKETS
NARROW
INNER
WIDE OUTER
Serpent 7XX has two rear lower suspension brackets, NARROW (default) and WIDE. On the other hand the
shock bracket has two differnet positions on the rear wishbone, INNER and OUTER. When the WIDE suspen-
sion bracket will be used the shock bracket should be used in the inner position to keep the shock’s angle.
SUSPENSION BRACKET SHOCK BRACKET
