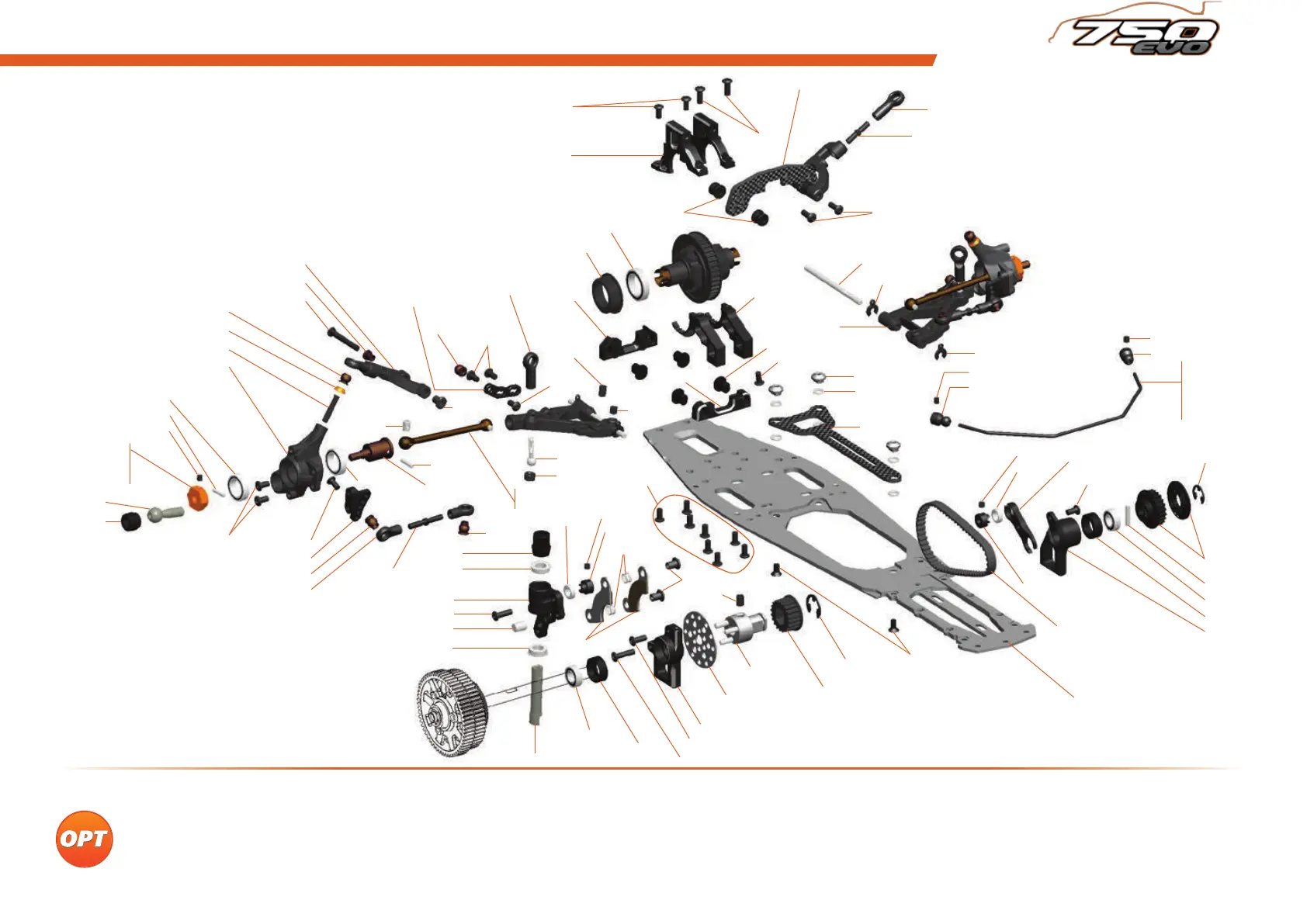

Serpent 750 EVO - Rear Exploded View

49
REaR EXplODED VIEW
803240 CVD-set Pro (2)
804194 Wheel hexagon +1mm (4)
804195 Wheel hexagon -1mm (4)
804341 Antiroll bar 1.6 RR 748
804343 Antiroll bar 2.0 RR 748
804344Antiroll bar 2.2 RR 748
804354 Rim cover RR 748 (2)
804440 Diff set rr 750 arrowspace magnesium
804442 Diff housing rr 750 arrowspace mag-
nesium
804444 Diff pulley 40T rr arrowspace magne-
sium
804446 Wheelaxle set CVD alu 0mm V2 (2)
804447 Wheelaxle CVD alu V2 (2)
804448 Wheel hexacon CVD 0mm V2 (2)
804449 Wheel hexacon CVD -1mm V2 (2)
804457 Screwset titanium S750 EVO (165)
804489 Suspension bracket rr fr wide alu
S750 EVO
804490 Rearplate alu wide S750 EVO
804492 Chassis weight 25gr S750 EVO
802339
802339
110116
110116
110108
804411
804460
804410
903187
110108
110124
110124
110108
110119
110118
803198
801219
801218
110208
804465
804205
110208
802357
803241
110503
808214
804116
808214
110504
804415
110108
1650
804152
110116
903231
804146
411048
411063
903231
110225
110304
110119
804169
903546
804285
903575
110116
803134
1311
804276
1652
1652
902138
804458
903550
1320
110112
804156
804348
1314
804326
110108
804418
803134
1311
110116
804421
804486
804326
110207
1314
804476
110303
804476
804341 opt
804343 opt
804342
804344 opt
804194 opt
804195 opt
804404 opt
804487
110187
110108
1320
1650
110503
110124
110112
902138
804464
903546
110108
110142
909345
804461
804332
804485
600116
804463
903231
804498
110108
110122
804459
804462
