STEp 4 STEp 5STEp 3
M3x3
Fill the differential with
silicone oil 1 mm above
the crosspin, do NOT
overfill. For the correct
cst value please check
the default setupsheet.
Add the big gear.

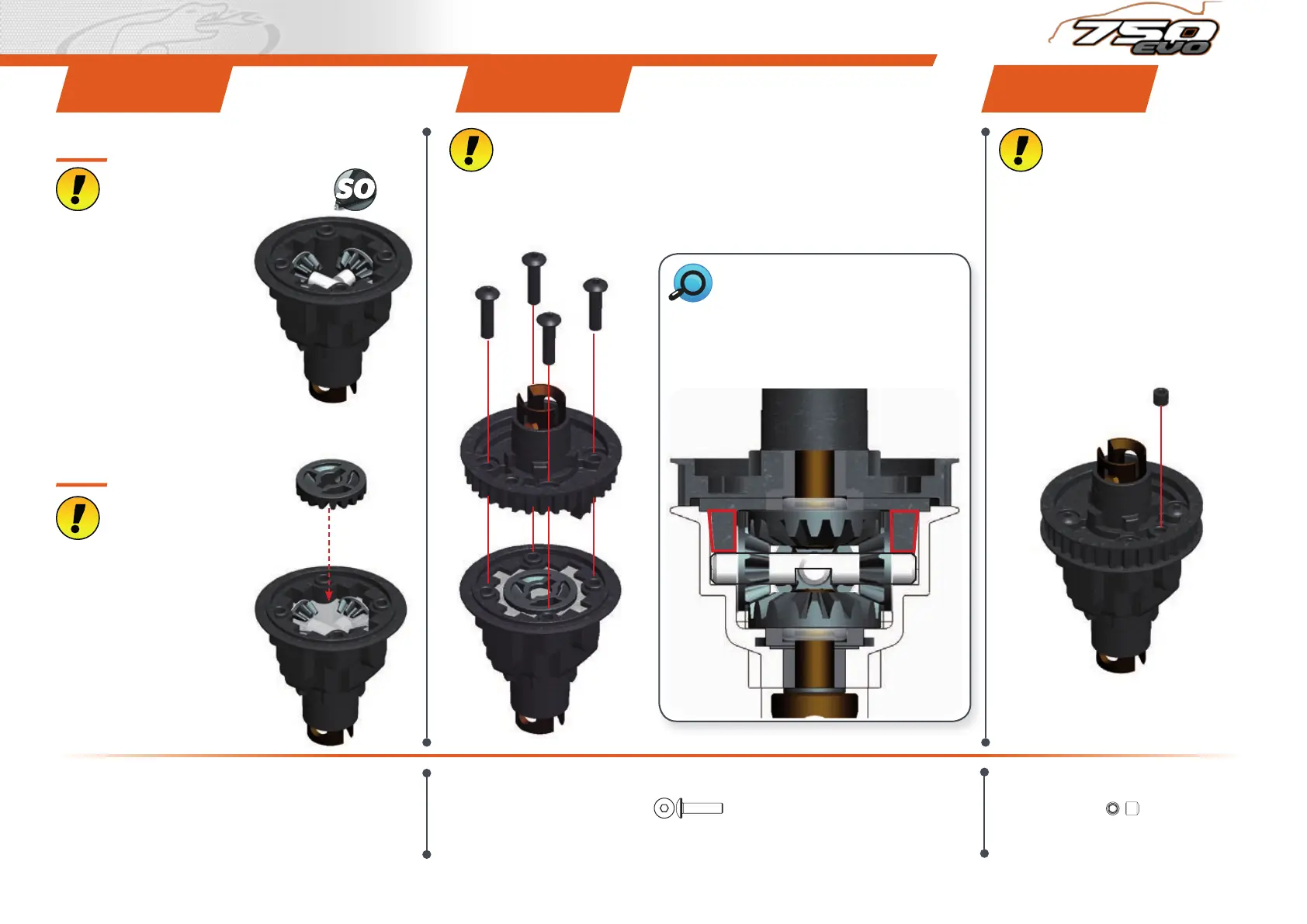

Mount the diff top-case on the lower case, make sure to follow below Detail View, and
tighten the screws.
1- Allow the excess of oil to escape
through the escape hole.
2- Close the hole with the 3x3
setscrew. Tighten carefully.
3- In case the diff feels too hard
remove the M3x3 set screw and let
some oil escape and close again.
Tighten carefully.
M2.5x10
M3x3
M2.5x10
HOWTOCLOSETHEFRONTDIFF
The front diff top case has two protrusions (see below
picture in red) to hold the geardiff shafts in the correct
position. The two protrusions press on the upper
shaft and thus secure the shafts in position.
To Next Page
