Serpent 750 EVO - Page 27

27

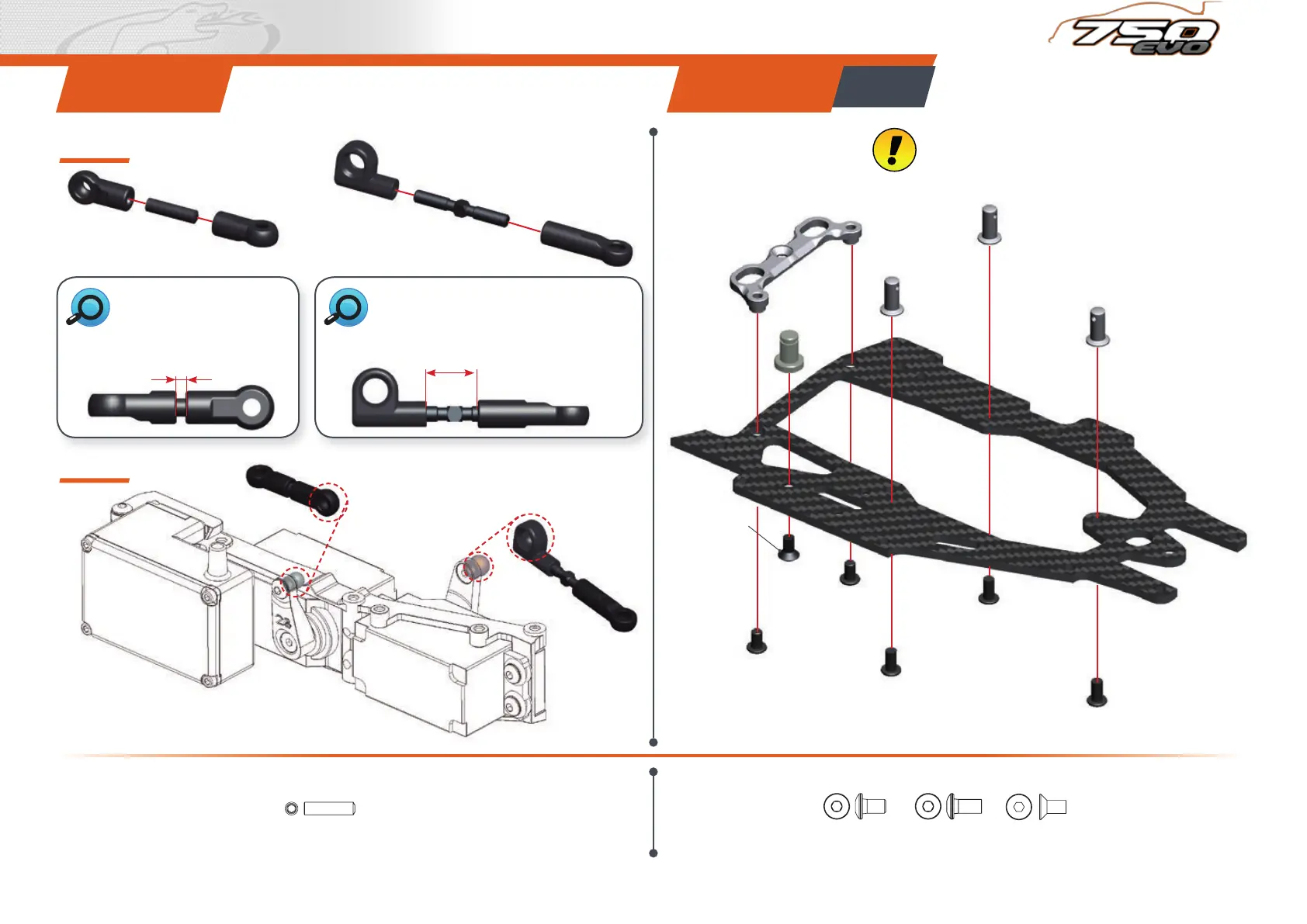

STEp 43
43.1
43.2
THROTTLELINKLENGTH
Between different servo
brands there can be slight
differences.
1.5 - 2 mm
STEERINGLINKLENGTH
Between different servo brands there can
be slight differences.
9.7 - 10.3 mm
M3x12
M3x12
bag 11
STEp 44
M3x5
M3x5
M3x6
M3x6
M3x6
M3x6
NOTE: When using Nimh or some Life receiver
batteries, it is needed to raise the fueltank
2mm adding 2mm shims between the fuel tank
mountings and the radio plate.
M3x6
M3x6M3x5
