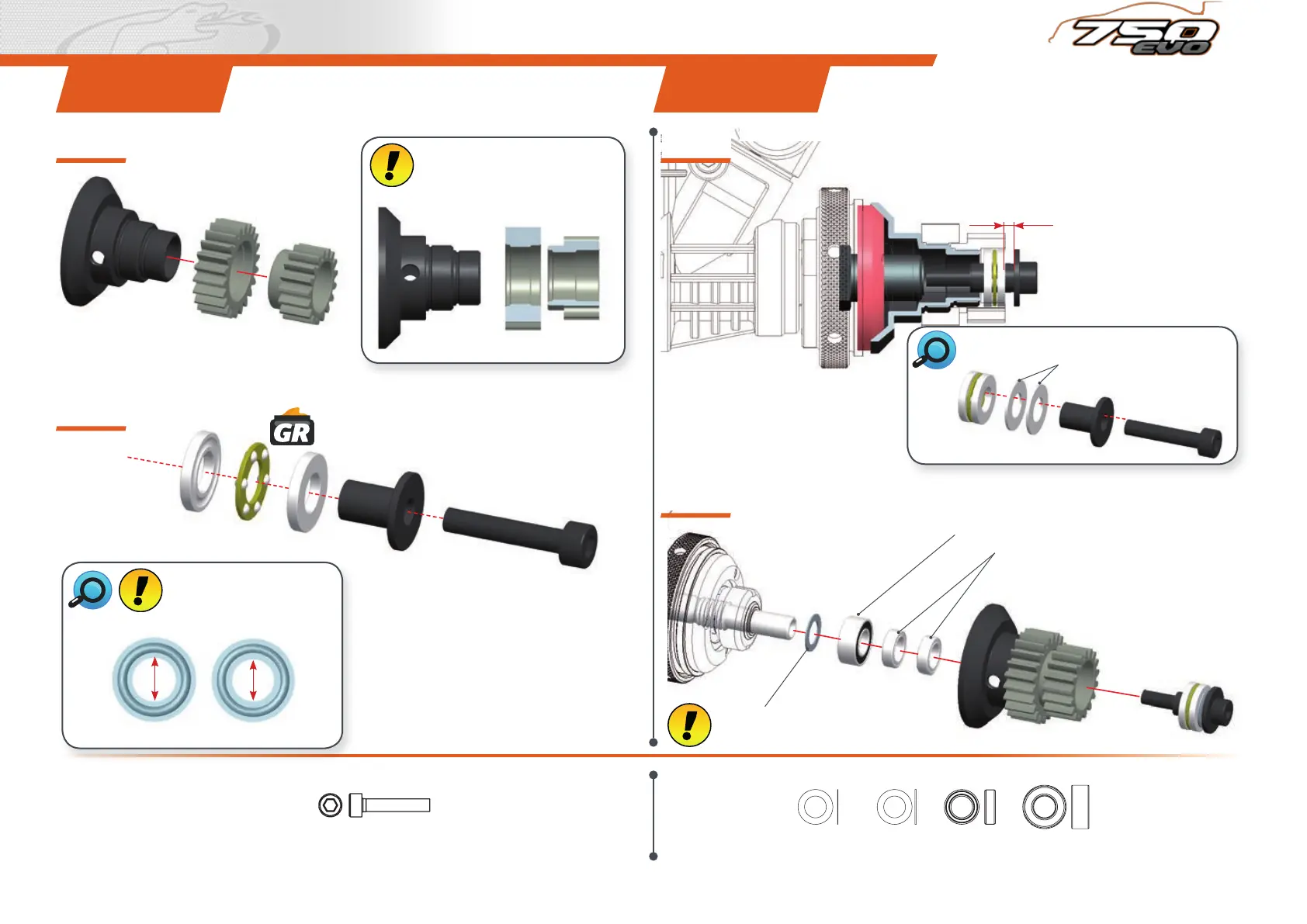

Serpent 750 EVO - Clutch Gear Alignment; Clutch Gap Setting; Clutch End Play Setting

39
STEp 67 STEp 68
67.1
68.1
67.2
68.2
Note the orientaion of the gears
IMPORTANT! Install thrust
bearing plates as shown.
Place 5x8x0.1 and/or 5x8x0.3 shims
to achieve a small amount of end play.
2ND 1ST
A
A
B
B
M3x16
5x10x4
5x8x2.5
5.2 mm
5.0 mm
SETTINGTHECLUTCHGAP
SETTINGTHECLUTCHENDPLAY
0.5 - 0.6mm
Use 5x8x0.1 and 5x8x0.3 shims to
achieve desired gap
M3x16
5x10x4
5x8x2.55x8x0.1 5x8x0.3
