24
Step 7.6
Centax Assembly
Step 7.7
Centax Assembly
M14
5x10x0.1mm
5x10x0.3mm
U4
5x10mm
U45
5x13mm

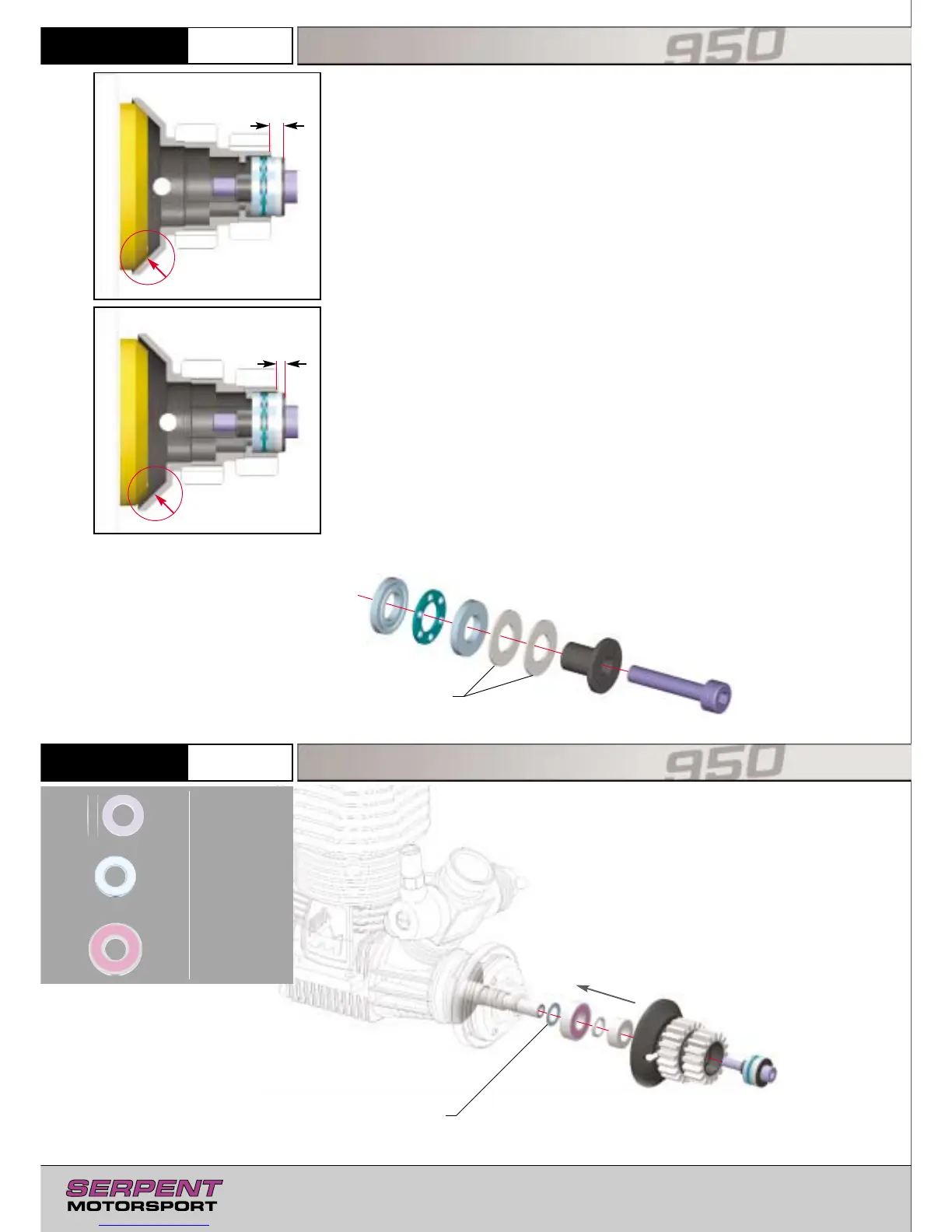

Adjusting the Clutch Gap
With only the thrust bearing installed push the bell housing in, and on to the clutch
shoe and measure the distance between the outer edge of the black thrust bearing
carrier and the top of the bell housing.
This is measurement A
Now pull the clutch housing away from the clutch shoe and against the thrust bearing.
Measure the distance between the outer edge of the black thrust bearing carrier and
the top of the bell housing again.
This is measurement B
The correct clutch spacing is 0.7mm
Calculate the thickness of the required shims as follows:
A - B - 0.7mm = Thickness of shims required
For example: A = 1.3mm and B = 0.3mm
Shim thickness = 1.3 - 0.3 - 0.7 = 0.3mm
These shims should be placed before the thrust bearing on the thrust bearing carrier as
shown.
A
B
Shims
Place small shims to remove all
but a small amount of end play
