Step 1.7
Shock Assembly
Step 1.8
Shock Assembly
1
2
4
3
2
1
hardsoft

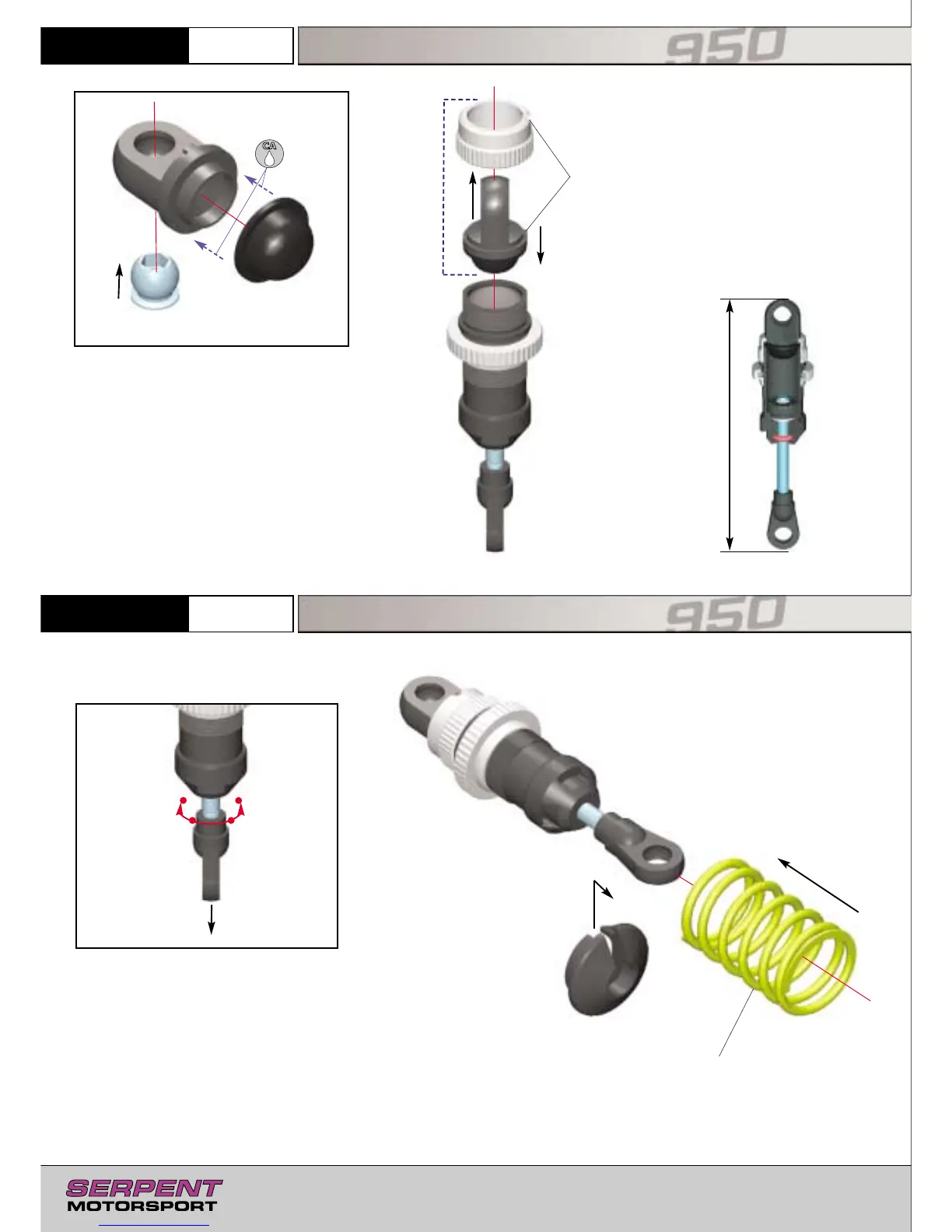

Dampening adjustment
Pull the piston rod all the way down, turn
slightly to lock the position of the cylinder.
You can then adjust the shocks by rotating
the shaft in clockwise and counter clock-
wise clicks from position 1-4.
Short Springs (on short shock)- Front
Long Springs (on long shock)- Rear
1
2
3
4
Shock length adjustment
Check the length of the shocks,
adjust with the ball-joint.
Shock Front: 67,5mm
Shock Rear: 76,5mm
In full extended, locked position.
Line up
notch
