Pressing the MENU button on the Home screen brings up the Administrative Menu. If
passwords are enabled, the user is required to enter the correct password before being
authorized to make changes. From the Administrative Menu, the user can set all op-
erating parameters of the SRCM. This includes initial setup, commissioning, calibra-
tion, Network setup, customizing the displays, and warning and alarm parameters. The
menu structure is setup in such a way that the user can setup the unit by starting with
the left column and working down, moving to the next column and working down until
all setups have been made.
* Calibration is only required for highly accurate measurement needs such as those
needed to comply with federally mandated regulations. See the SRCM Product Data
Sheet for more information.
Upon initial installation, the Setup Unit screen should be used to dene installation
parameters specic to the job site.
Alarm setpoint values Save Settings and Exit
Calibration*—used to re-zero or
calibrate internal sensor
Room Label that settings
apply to (global unless
Secondary is shown)
Serial number and other
system information
Setup Alarm—setup the behavior of
how alarms are communicated to the
user
Setup Display—customizes the display
Slider ON/OFF—denes whether the
pressure value and alarm setpoints are
displayed on the home screen
Setup Unit—for initial unit setup
Network Setup —congure
parameters to be read from
the network
Event Log—Alarm/
Warning History

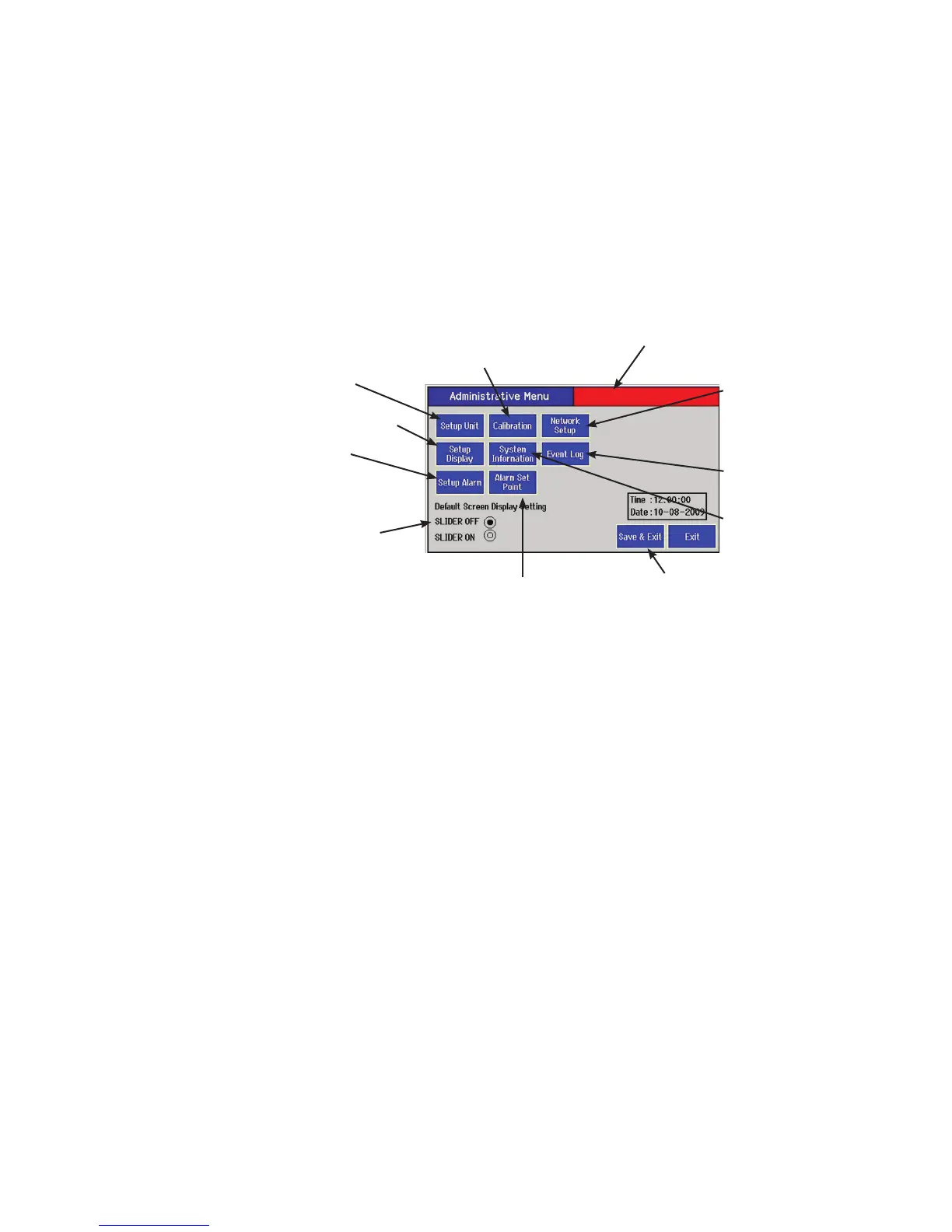

Menu Screens
