Operation
The following pages describe how to operate the SRCM using the touch-screen interface.
The screen has two basic functions. The primary mode of operation displays the Home
screen, which shows the end-user pressure values, messages, text, and other data intended
for visual pressure verication in the facility. The second mode of operation is the Ad-
ministrative Menu screen, which permits setup, conguration, and changes to how the
SRCM operates. After changes have been performed on the Menu screen, functions are
saved and operation returns to the Home screen. Note: If there is no user interaction with
the touch screen for more than 1 minute, the screen will automatically return to the Home
Screen. Many administrative settings can be written over the BACnet MS/TP network.

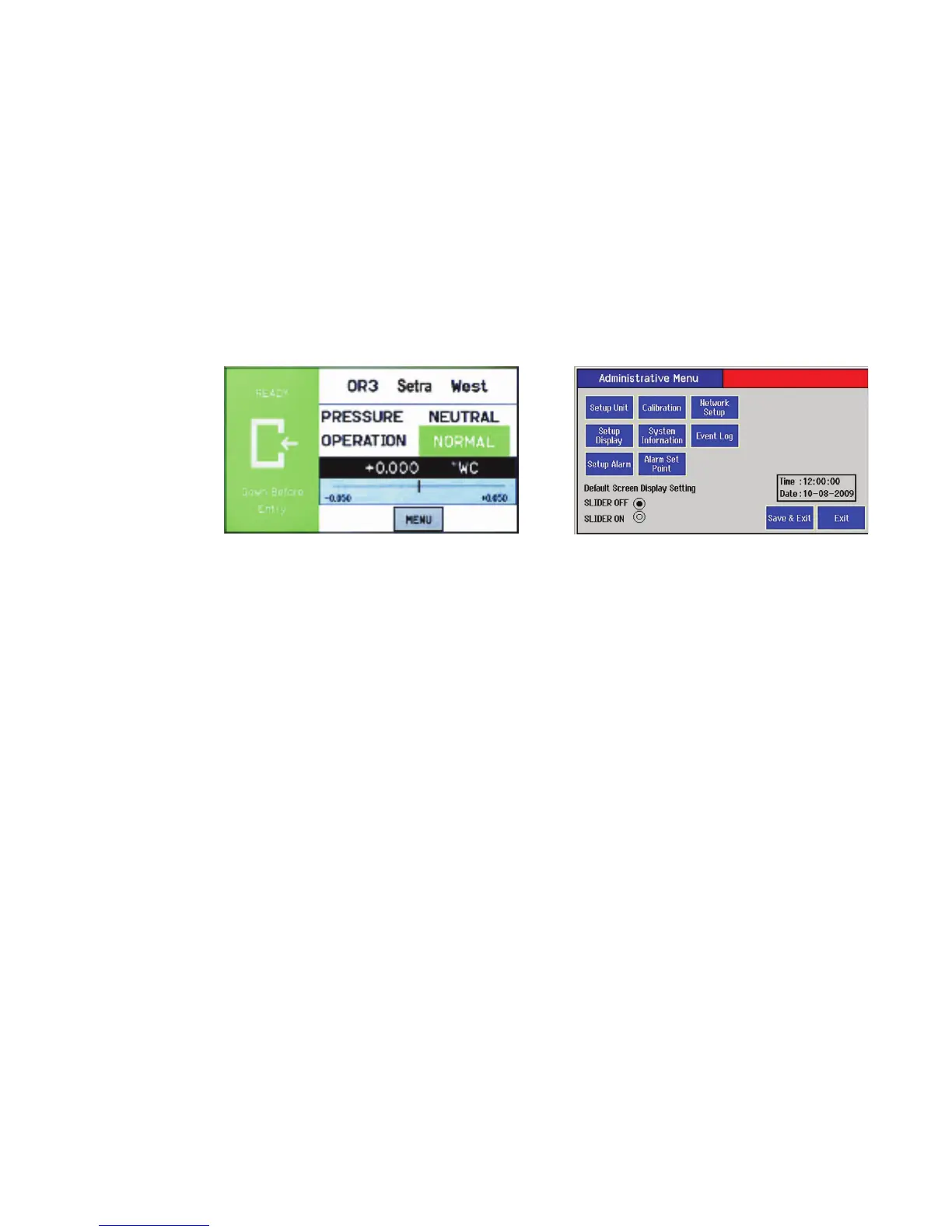

Home Screen
Menu Screen
NOTE: All settings of the SRCM can be password protected.
