Shark 100 - Page 52

Doc# E145701 3 - 2
3: Mechanical Installation
Electro Industries/GaugeTech
The Leader In Power Monitoring and Smart Grid Solutions
Electro Industries/GaugeTech
The Leader In Power Monitoring and Smart Grid Solutions

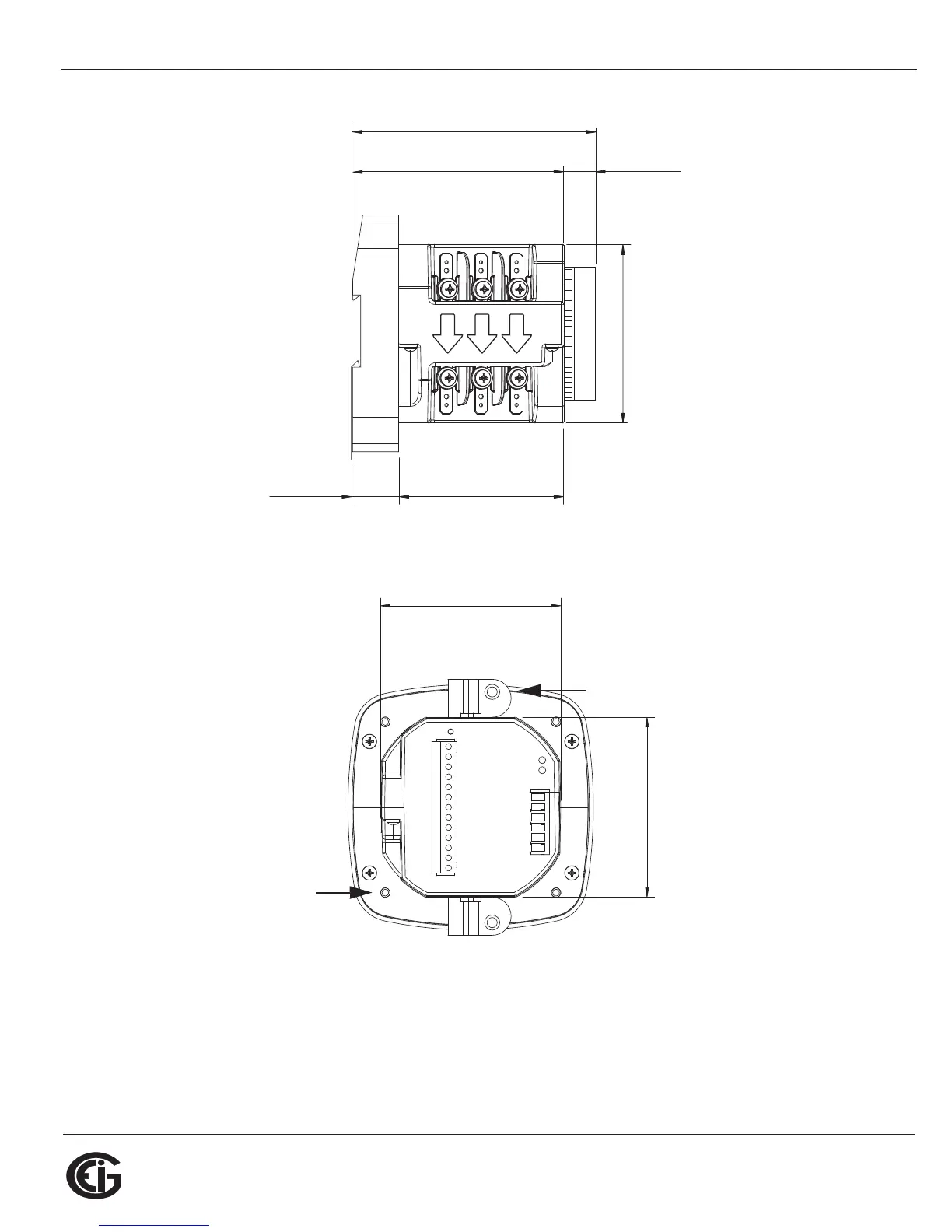

Figure 3.3: Transducer Side
Figure 3.4: Meter Back
5.02”
[12.75cm]
3.25”
[8.26cm]
Ic Ib Ia
HI HI HI
LO LO LO
3.52”
[ 8.90cm]
0.62”
[1.61cm]
[12.10cm]
4.78"
[2.31cm]
0.91"
4.16”
[10.60cm]
v
;CM=
v
;CM=
ANSI Mounting Rods
(Screw-in) Qty: 4
DIN Brackets
Qty: 2
