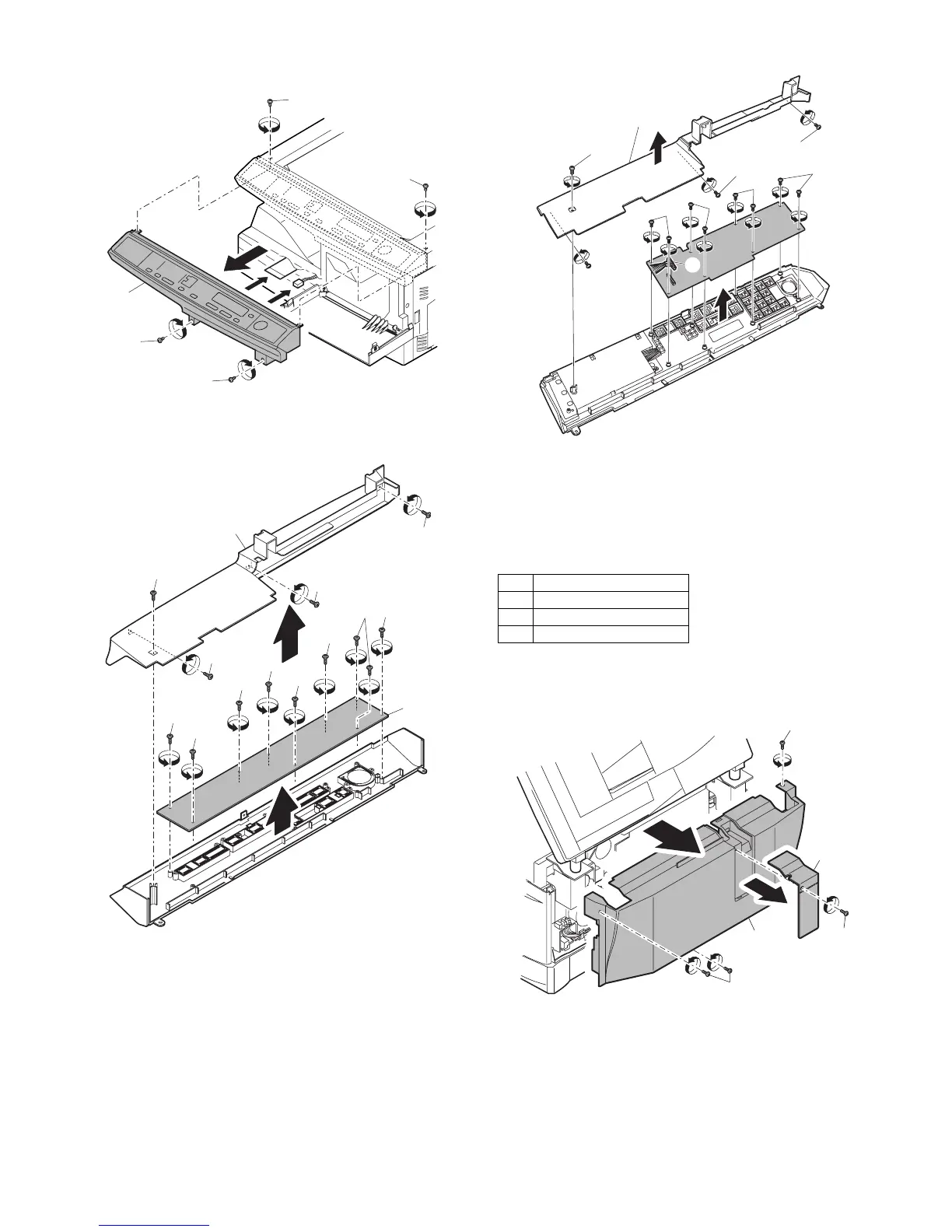

AL-2030/2040CS/2050CS DISASSEMBLY AND ASSEMBLY 8 - 3
2) Remove the screws (4 pcs.), the harness, and the operation
panel unit.
3) Remove four screws, and remove the operation cabinet.
4) Remove four screws, and remove the operation PWB.
(AL-2020/2035/2040)
(AL-2050/2060)
C. Assembly procedure
For assembly, reverse the disassembly procedure
3. Optical section
A. List
B. Disassembly procedure
1) Remove four screws, and remove the rear cabinet and the rear
cabinet cover.
1)
1)
1)
2)
1)
1)
1)
1)
1)
2)
3)
3)
3)
3)
3)
3)
3)
3)
4)
NO. Part name Ref.
1 Copy lamp unit
2Copy lamp
3 Lens unit
1)
3)
2)
2)
5)
5)
5)
5)
4)
1)
1)
2)
2)
1)
