AL-2030/2040CS/2050CS DISASSEMBLY AND ASSEMBLY 8 - 22

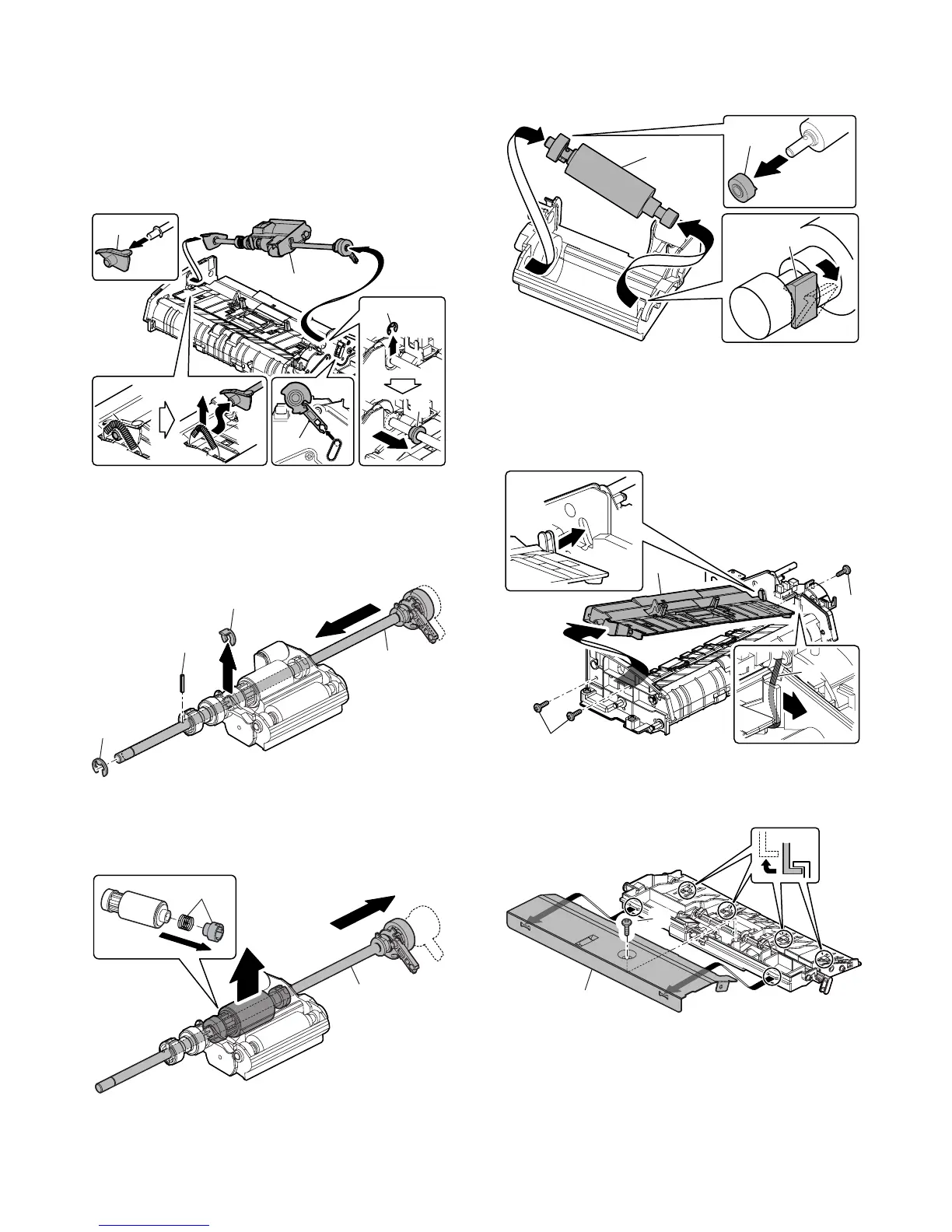

H. Pickup roller, take-up roller
(1) Paper feed unit removal
1) Remove the E-ring.
2) Slide the bearing.
3) Remove the stopper arm.
4) Release the paper feed shaft pressure release spring.
5) Remove the paper feed unit.
6) Remove the paper feed shaft release arm.
(2) Parts removal
1) Remove the E-ring.
2) Remove the resin E-ring.
3) Slide the shaft.
4) Remove the spring pin.
(3) Paper feed roller removal
1) Pull out the shaft.
2) Remove the clutch boss and the clutch spring from the pickup
roller.
(4) Pickup roller removal
1) Disengage one pawl.
2) Remove the pickup drive gear from the pickup roller.
I. Paper empty sensor
(1) Paper feed PG unit removal
1) Remove the harness.
2) Remove three screws.
3) Lift the front side, and remove the paper feed PG unit.
(2) Paper feed PG support plate removal
1) Remove one screw.
2) Slide and remove the paper feed PG support plate.
2
1
3
4
5
6
3
1
4
2
1
2
1
3
2
2
3
2
1
2
1
