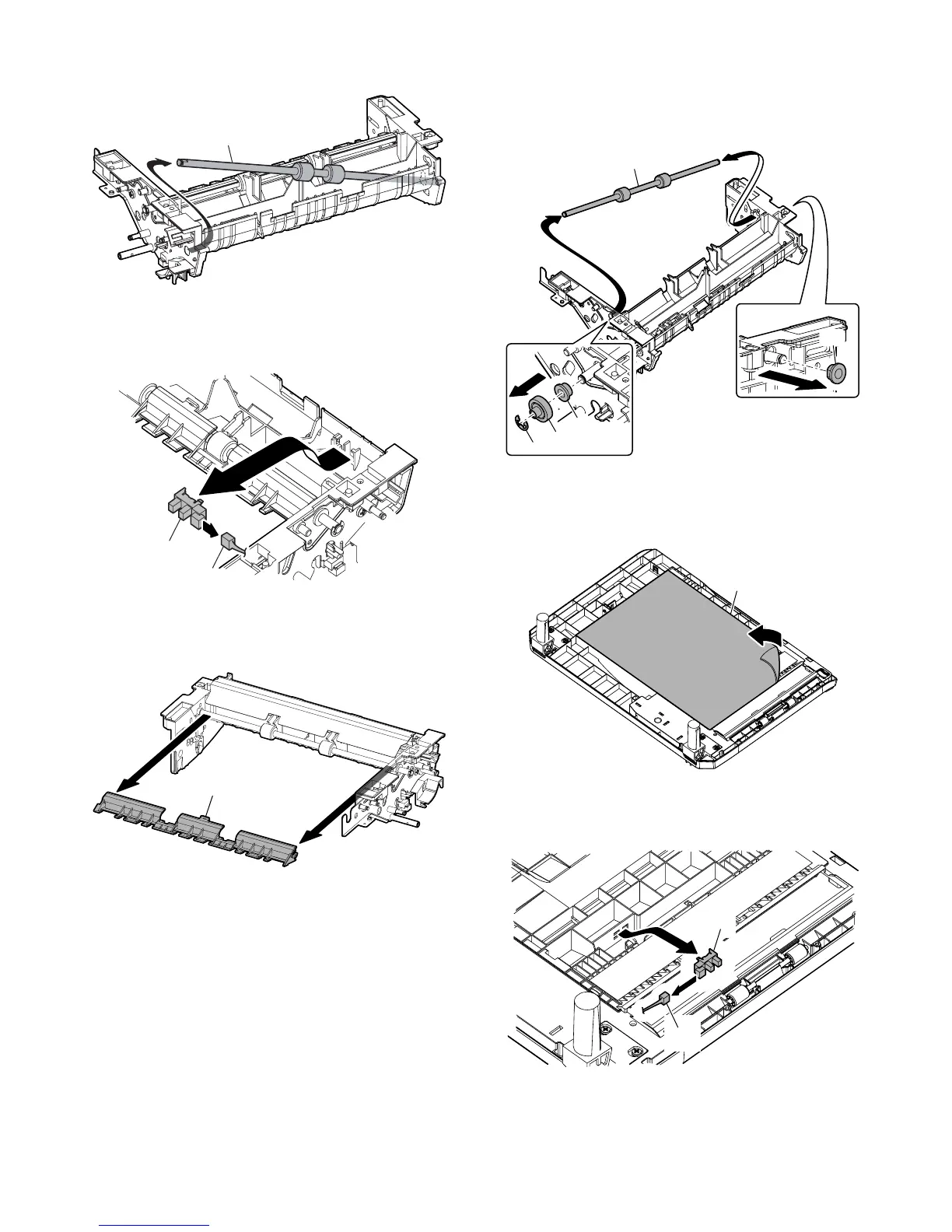

AL-2030/2040CS/2050CS DISASSEMBLY AND ASSEMBLY 8 - 24
(2) Upper transport roller removal
1) Remove the upper transport roller.
L. Paper sensor
1) Disconnect one connector.
2) Remove the paper sensor.
M. Lower transport roller
(1) Reverse self-weight gate removal
1) Remove the reverse self-weight gate.
(2) Lower transport roller removal
1) Remove the E-ring.
2) Remove the gear.
3) Remove the bearing.
4) Remove the lower transport roller.
N. Paper exit sensor
(1) OC mat removal
1) Remove the OC mat.
(2) Paper exit sensor removal
1) Disconnect one connector.
2) Remove the paper exit sensor.
1
2
1
1
4
1
2
3
3
1
2
1
