AL-2030/2040CS/2050CS DISASSEMBLY AND ASSEMBLY 8 - 7

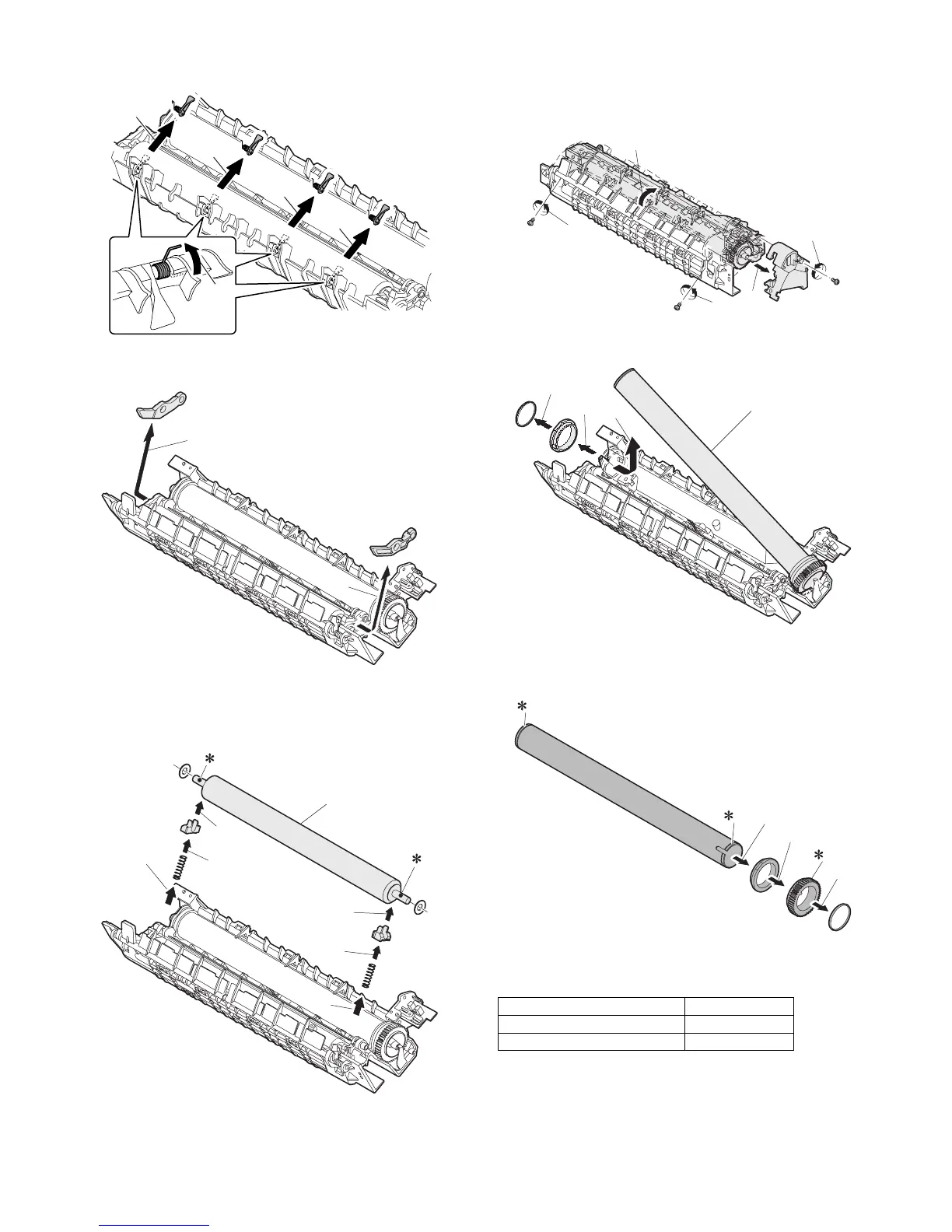

10) Remove the spring, and remove the lower separation pawls (4
pcs.).
11) Remove the pressure release levers on the right and the left
sides.
12) Remove the pressure roller, the pressure bearing, and the
spring.
Note: Apply grease to the sections specified with an asterisk (∗).
Grease: "JFE552" UKOG-0235FCZZ
Heat roller disassembly
(Continued from procedure (4).)
5) Remove screws, remove the fusing cover, and open the heat
roller section.
6) Remove the C-ring and the fusing bearing, and remove the heat
roller.
7) Remove the parts from the heat roller.
Note: Apply grease to the sections specified with ∗1.
Grease: "JFE552" UKOG-0235FCZZ
8) Remove two screws and remove the thermo unit.
Note: The set temperature of the thermostat differs from that of the
current model.
2)
2)
2)
1)
2)
1)
1)
1)
2)
2)
1)
3)
3)
Pressure roller
Temperature
Current model 210°C
AL-2020/2035/2040/2050/2060 230°C
1)
2)
2)
3)
3)
1)
2)
3)
Heat roller
3)
2)
1)
1
1
1
