AL-2030/2040CS/2050CS DISASSEMBLY AND ASSEMBLY 8 - 9

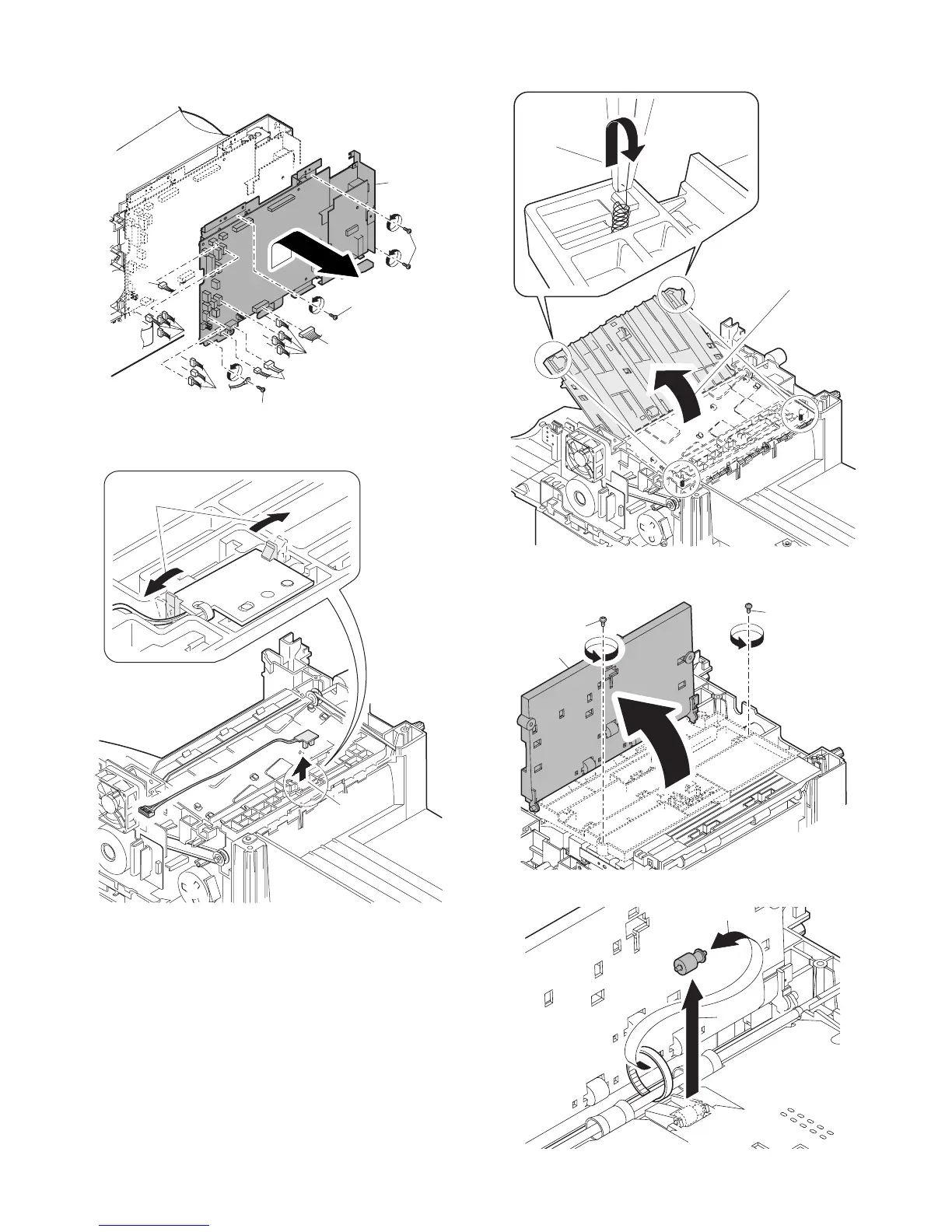

9) Remove each connector and four screws, and remove the MCU
PWB. (The shape of the MCU PWB differs depending on the
model.)
10) Remove the PWB insulation mylar and remove the paper trans-
port detection sensor (POD).
11) Remove two springs and open the intermediate frame unit.
(AL-2020/2035/2040)
12) Remove the screw, and open the upper paper guide.
(AL-2050/2060)
13) Remove the roller, and remove the belt. (AL-2050/2060)
