Sharp CD-BA3100 Service Manual

CD-BA3100
– 10 –

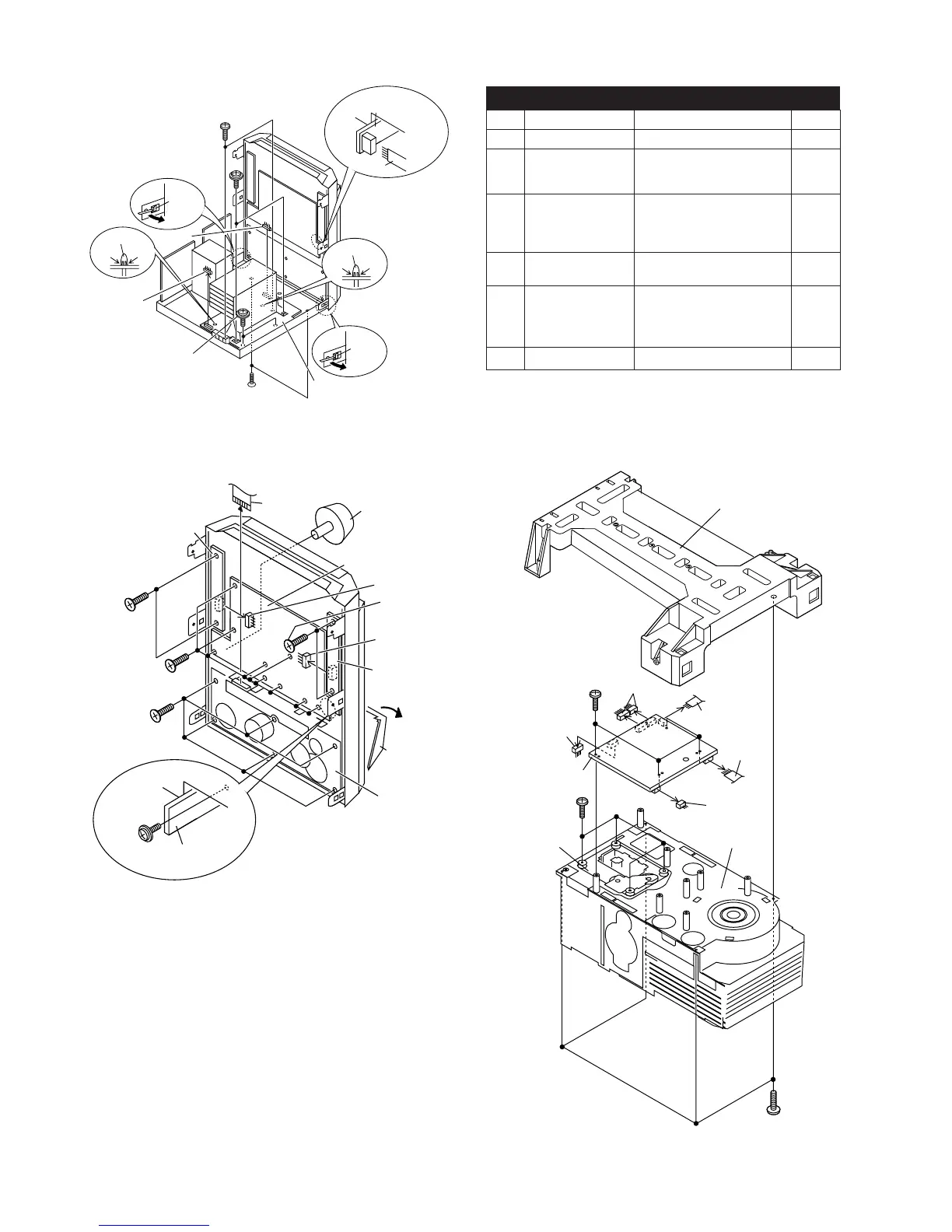

Figure 10-1
Figure 10-2
Figure 10-3
1 Top Cabinet 1. Screw ................. (A1) x4 9-1
2 Side Panel 1. Screw ................. (B1) x8 9-1
(Left/Right) 2. Screw ................. (B2) x2
3. Hook ................... (B3) x2
3 Rear Panel with 1. Screw ................. (C1) x2 9-2
Fan Motor 2. Screw ................. (C2) x5
3. Screw ................. (C3) x2
4. Socket ................ (C4) x1
4 CD Changer Unit 1. Socket ................ (D1) x2 9-2
2. Hook ................... (D2) x2
5 CD Servo PWB 1. Screw ................. (N1) x4 10-3
(Note) 2. Screw ................. (N2) x4
3. Socket ................ (N3) x4
4. Flat Wire ............. (N4) x2
6 CD Mechanism 1. Screw ................. (P1) x4 10-3
STEP REMOVAL
PROCEDURE
FIGURE
CD-BA3100 (CD CHANGER MECHANISM UNIT)
Note:
After removing the connector for the optical pickup from the
connector, wrap the conductive aluminium foil around the
front end of connector remove to protect the optical pickup
from electrostatic damage.
Power Amp.
PWB
(F1)x2
ø3x8mm
(F1)x2
ø3x10mm
(F2)x1
(F2)x1
(F4)x1
(F1)x2
ø3x10mm
(G1)x2
ø3x8mm
Push
(F4)x1
Push
Pull
(G2) x1
Pull
(G2) x1
Headphones
PWB
(F3)x1
(K3)x1
(K1)x1
Display PWB
Play Switch
PWB
Open
Cassette
Holder
(H2)x1
(J2)x1
(M1)x6
ø3x10mm
Headphones
PWB
(L1)x1
ø3x10mm
Tape
Mechanism
(H1)x2
ø3x10mm
(J1)x2
ø3x10mm
(K2)x9
ø3x10mm
Eject Switch
PWB
(N2)x4
ø3x10mm
(N1)x4
ø3x14mm
(N4)x1
(N3)x1
(N3)x1
(N4)x1
(N3)x2
(P1)x4
ø2.6x10mm
CD Servo PWB
CD Changer
Mechanism
CD Changer
Bracket
CD Mechanism
