Sharp CD-BA3100 Service Manual

– 11 –
CD-BA3100
CP-BA3100

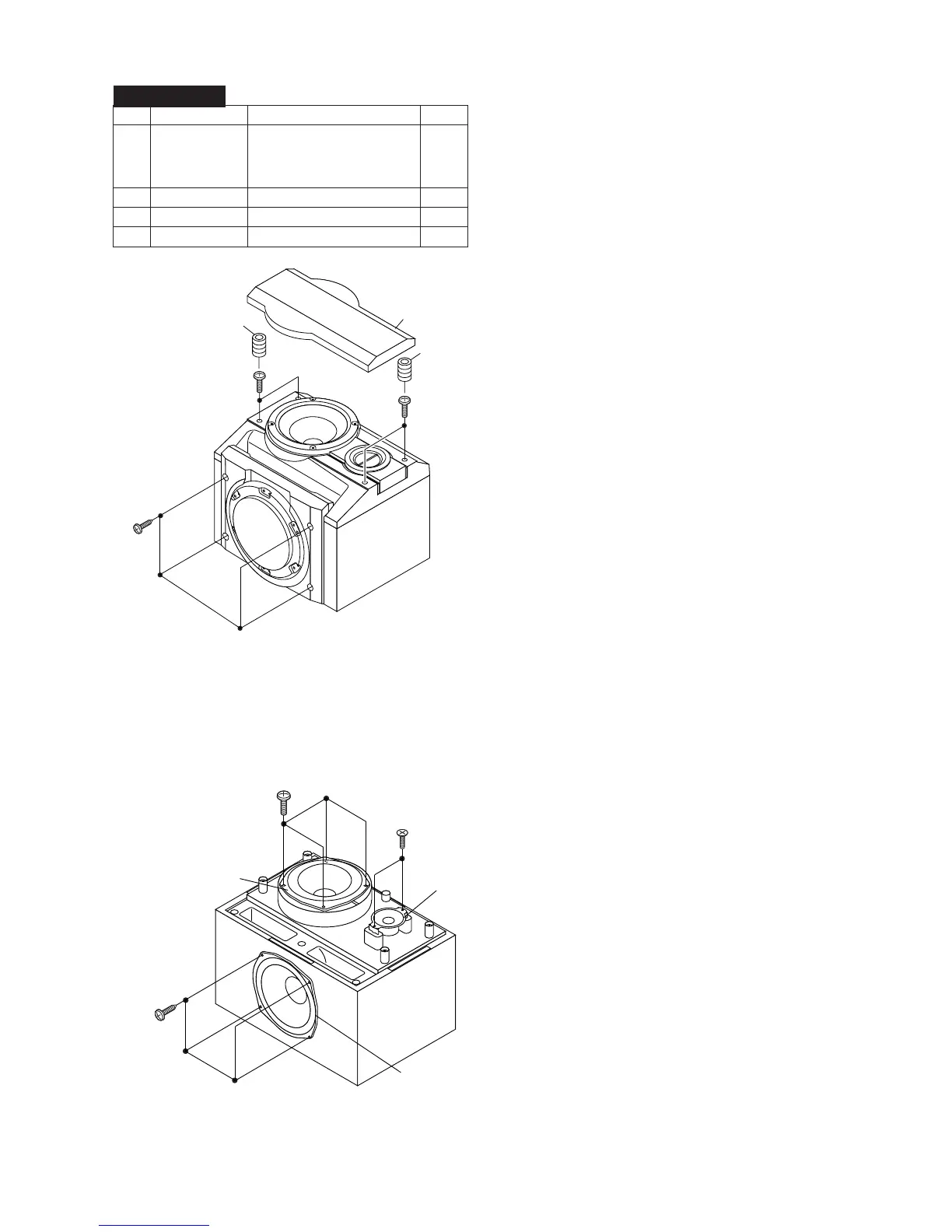

1 Side Panel/ 1. Screw ..................... (A1) x4 11-1
Front Panel 2. Net.......................... (A2) x1
3. Catching Holder ..... (A3) x4
4. Screw ..................... (A4) x4
2 Subwoofer 1. Screw ..................... (B1) x4 11-2
3 Woofer 1. Screw ..................... (C1) x4 11-2
4 Tweeter 1. Screw ..................... (D1) x2 11-2
STEP
REMOVAL PROCEDURE
FIGURE
Figure 11-1
(A1)x4
ø4x20mm
(A4)x2
ø4x20mm
(A3)x2
(A3)x2
(A2)x1
(A4)x2
ø4x20mm
(C1)x4
ø4x16mm
(B1)x4
ø4x16mm
(D1)x2
ø3x10mm
Tweeter
Woofer
Sub Woofer
Figure 11-2
