Sharp CD-BA3100 Service Manual

– 21 –
CD-BA3100

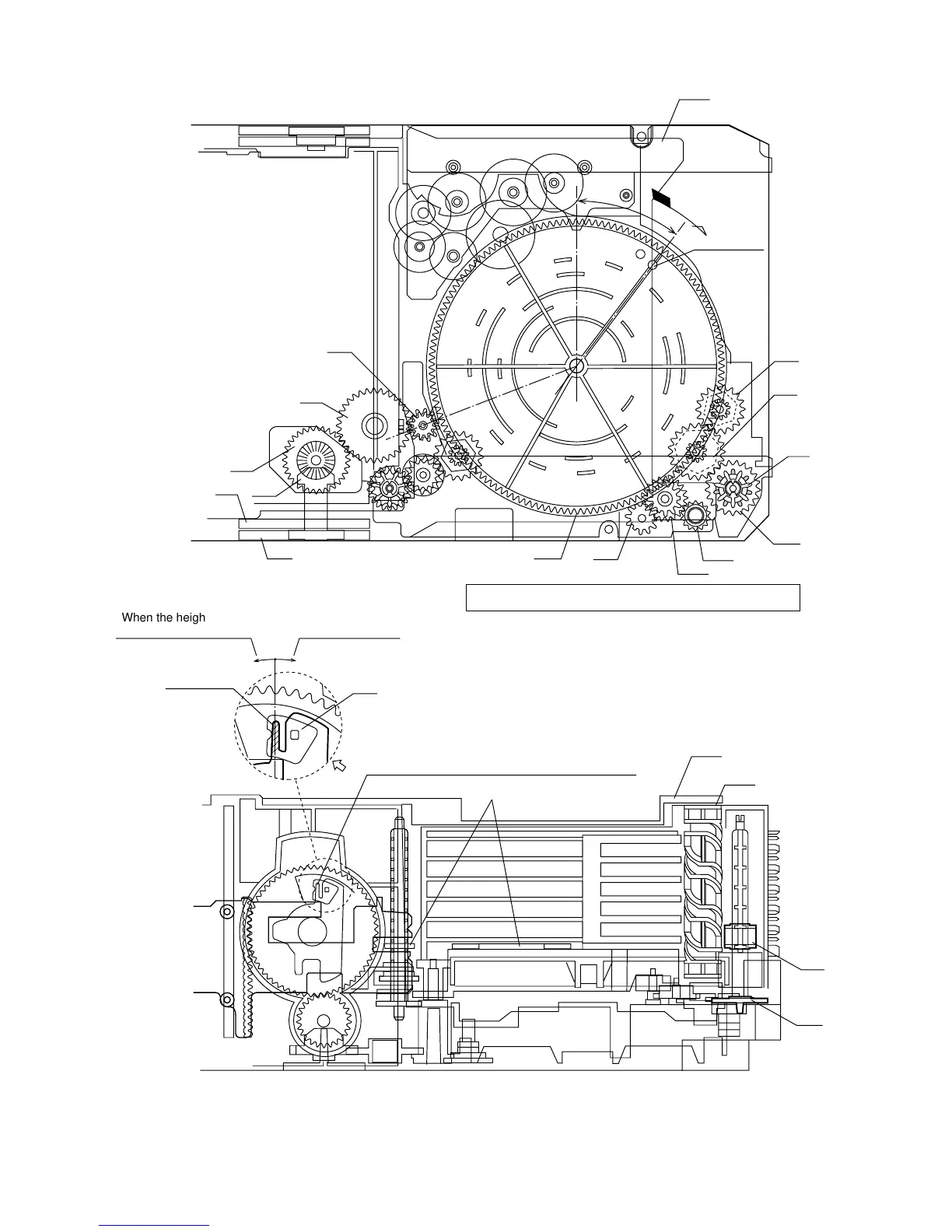

Figure 21
43
41
33
32
47
46
10
Mark position
11
45
42
LIFT GEAR A
30
35
40
80
TOP PLATE F
80
TOP PLATE F
240
OS LEVER
40
44
30
35
,,
,,
,,
,,
,,
,,
,,
When the height of
STB holder is low,
(Increase the clearance.)
Bend this part.
When the height of
STB holder is high,
(Decrease the clearance.)
Scale: 2 magnifications
Details
Bend this part to adjust the height of the STB holder.
Adjusting procedure
1. Turn the mode big gear approx. 37 degrees in the arrow direction.
2. Viewing from the front side of the mechanism, verify that the guide ribs
(CHANGE BOX L/R and STB HOLDER) of tray are as tall as each other.
3. If they are not, bend the lever for adjustment. (Refer to the details.)
Note: Also apply the same adjustment on the R side.
Height of the rib
37°
STB HOLDER HEIGHT ADJUSTING METHOD
