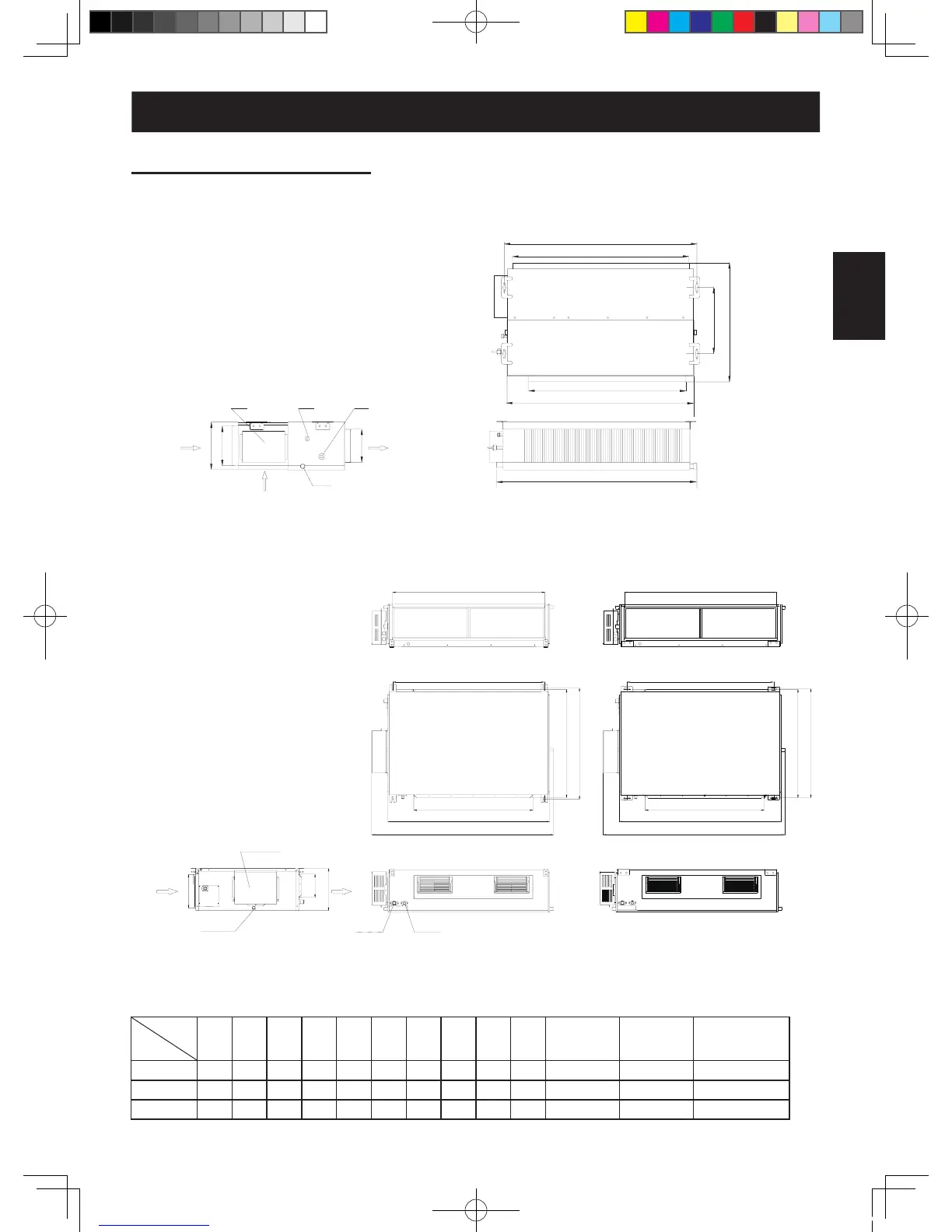

Sharp GB-X18JR - Installation Dimensions; Indoor and Outdoor Unit Sizes

E-13
ENGLISH
A B C D E F G H I J
GB-X18JR 932 430 738 894 1012 736 738 125 207 266 1/4" 1/2" ø30 x 1.5
GB-X24JR 1101 515 820 1159 1270 504 1002 160 235 268 3/8" 5/8" ø20 x 1.5
GB-X36JR 1011 748 820 1115 1251 744 980 160 231 290 1/2" 3/4" ø20 x 1.5
INSTRUCTIONS OF UNIT INSTALLATION
Installation dimensions
GB-X18JR
GB-X24JR/GB-X36JR
Item
Connecting
Pipe
(Liquid Pipe)
Connecting
Pipe
(Gas Pipe)
Drainage Pipe
(Outer Diameter x
Wall Thickness)
Model
H
B F
I J
A
G
C
D
E
D
C
A
B
F
G
H
I
J
E
G
D
C
A
B
F
E
GB-X24JR
GB-X36JR
Air Intake
Air Intake
Electric Box
Liquid Pipe
Gas Pipe
Drainage Pipe
Air Intake
Electric Box
Liquid Pipe
Gas Pipe
Drainage Pipe
Length unit: mm
Indoor unit
GREE_duct_eng_1022.indd 13 08.10.27 3:32:09 PM
