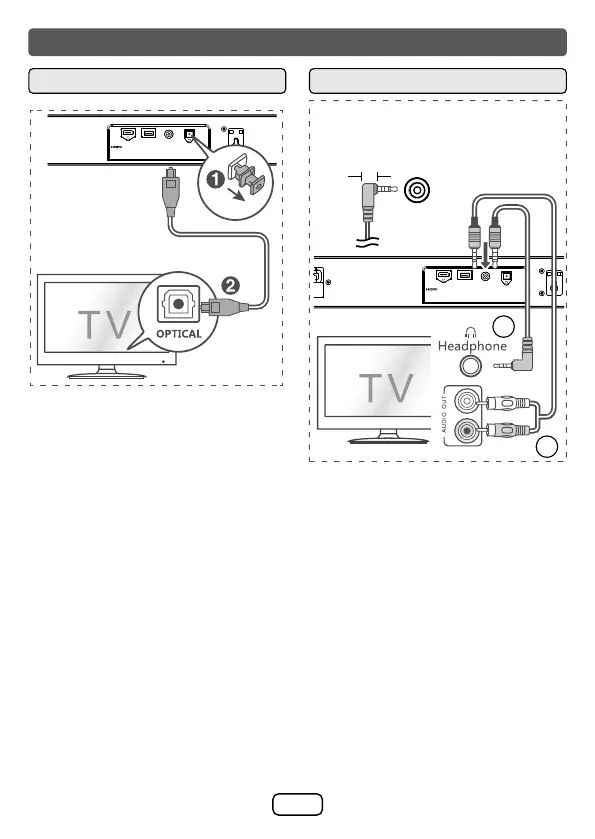

Remove the protective cap of the
OPTICAL terminal, then connect an
OPTICAL cable (not included) to the
TV’s OPTICAL OUT terminal and the
OPTICAL terminal on the sound bar.
Note: Note:
While in HDMI ARC or OPTICAL
mode, if there is no sound output
from the sound bar and the HDMI
ARC or OPTICAL indicator blinks
quickly, you may need to activate
PCM signal output on your source
device (E.g. TV, DVD or Blu-ray
player).
A. Use a 3.5mm to 3.5mm
audio cable to connect the
TV’s or external audio device
headphone terminal to the Audio
In terminal on the sound bar.
B. Use an RCA to 3.5 mm audio
cable (not included) to connect
the TV’s audio output terminals
to the Audio In terminal on the
sound bar.
Note:
When you use the headphone output
on the TV set, you will be able to
adjust the volume level directly using
the TV remote control depending on
the TV’s condition.
System connection (continued)
 Optical input  Audio In
HDMI (ARC)
USB
AUDIO
IN
OPTICAL
IN
HDMI (ARC)
USB
AUDIO
IN
OPTICAL
IN
A
B
AUDIO
IN
< 21mm
L-shaped adaptor or cable head with
length 21mm or less is recommended
for wall mount installation.
