7. Start the "Winupload"(Writing tool).

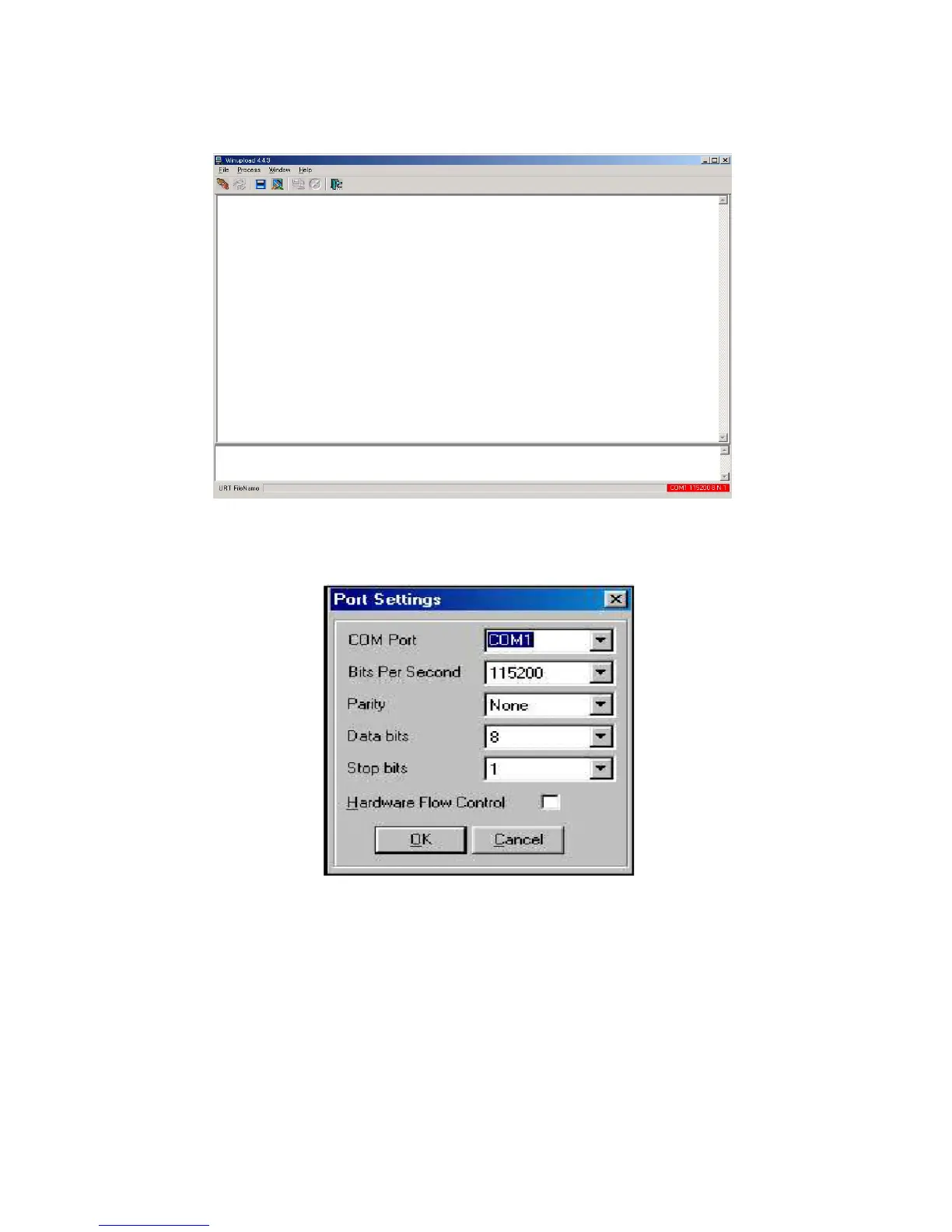

8. Select the "Port Setting" from Process menu, then please set it as follows.

NOTE: This step is not necessary from next time.

RE-WRITE FOR DIGITAL SOFT FIRMWARE

C-5
